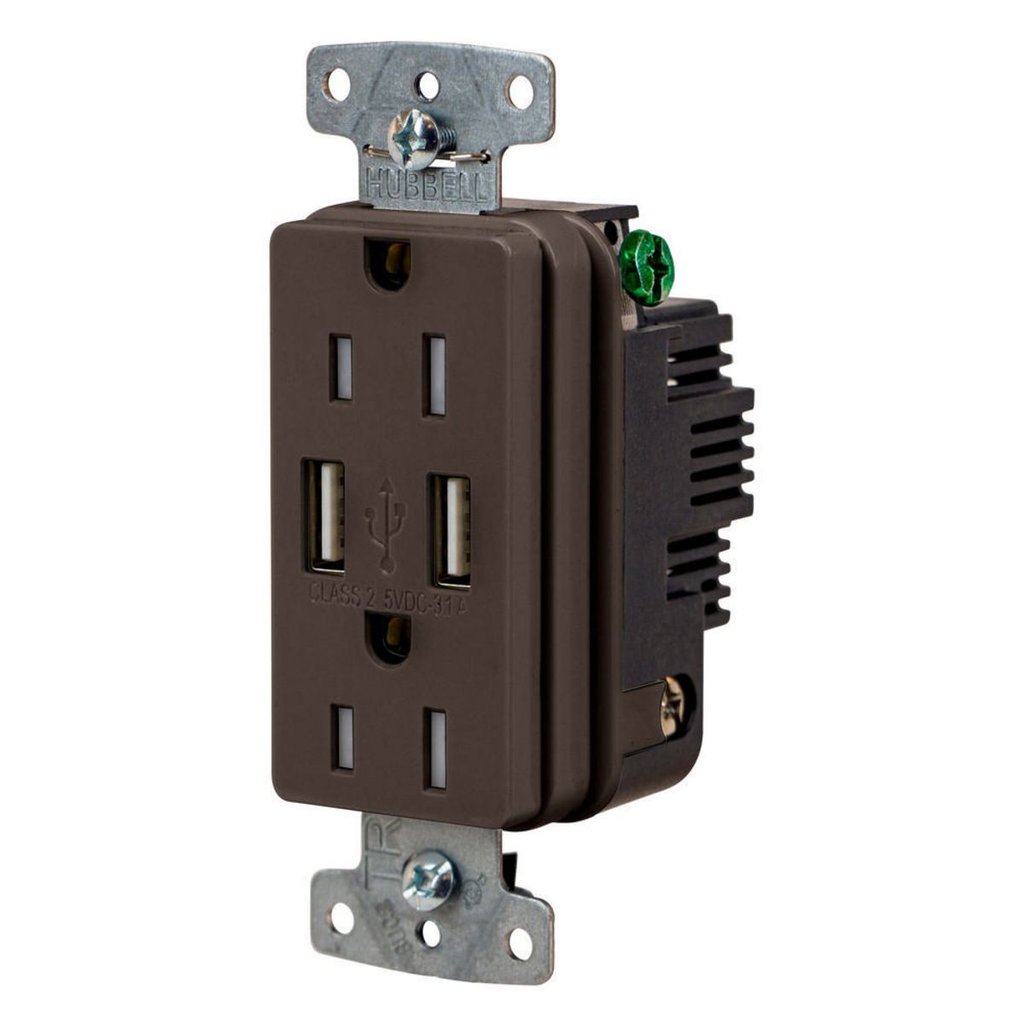

USB Charger Duplex Receptacle, 15A 125V, 2-Pole 3-Wire Grounding – USB Charging Solutions

This USB Charger Duplex Receptacle provides a combined electrical outlet and USB charging ports designed for indoor dry environments. It supports a 15 amp, 125 volt rating with 2-pole, 3-wire grounding, suitable for standard electrical wiring installations. The device includes two Type A USB ports delivering a high power 3.1 amp, 5 volt DC output for efficient USB charging. Ideal for electrical distributors and lighting solutions providers requiring integrated power and USB charging capabilities in residential or commercial applications.

Specifications

• Application: USB Charging/Power
• Current: 15 amperes
• Amperage Rating: 15 A
• NEMA Rating: 5-15R
• Number of Poles: 2-Pole
• Number of Wires: 3-Wire
• Connection: Back Wire Screws
• Mounting Method: Mounting Screws
• Material: Composite
• Color: Brown
• Width: 2.1 in
• Dielectric Strength: 1500 V Withstand
• Environmental Conditions: Indoor Dry Unless Protected by Additional Means
• USB Output: 3.1 Amp, 5 Volt DC
• USB Ports: Two Type A ports rated for 10,000 cycles
• Terminal Accommodation: #14-#10 AWG copper stranded or solid conductor
• Flammability Rating: UL 94V-2
• Operating Temperature: Maximum continuous 75°C, minimum -40°C (without impact)
• Certifications: cULus Listed to UL498, UL1310; Complies with USB BC1.2 Battery Charging and 3.0 Power Delivery Specifications
• Country of Origin: China

Features

• High power 3.1 amp, 5 volt USB output for efficient device charging
• Two Type A USB ports integrated with duplex receptacle
• Tamper resistant grade duplex compatible for safety
• Stainless steel USB port contacts rated for 10,000 insertion cycles
• Back wire screw connections for secure wiring
• Reinforced thermoplastic face and base for durability
• Zinc plated steel mounting strap and screws for corrosion resistance
• Certified for current interrupting at full rated current
