USAD-750-4, Power Distribution Block
SKU: #91968
Part: #USAD-750-4
UPC: 784491139455
USAD-750-4, Power Distribution Block
SKU: #91968
Part: #USAD-750-4
UPC: 784491139455
Next day delivery
Description

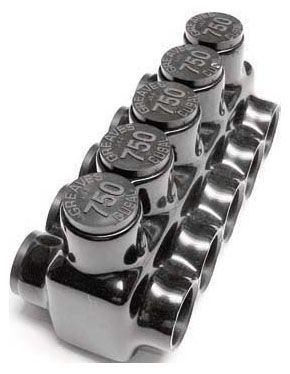

USAD-750-4 Power Distribution Block
The USAD-750-4 is a power distribution block designed for efficient electrical power distribution in wire and cable systems. Manufactured by Greaves, this product serves as a reliable component for electrical distributors and switchgear suppliers seeking durable and high-performance lighting solutions and power distribution components. It features a two-side entry design that allows wire entry from either side, facilitating flexible installation and maintenance.
Specifications
- Manufacturer Part #: USAD-750-4
- Body Material: 6061-T6 High Strength Aluminum Alloy
- Wire Range: 750 - 250 MCM
- Ports: 4
- Dimensions: Length 6.19 in, Height 3.60 in
- Operating Temperature: Rated for 90°C
- Voltage Rating: 600V
- Material Rating: CU9AL (Copper Aluminum Alloy)
- Product Weight: 2.21 lbs
- Country of Origin: United States
- Made in USA: Yes
Features
- Insulated with rugged high-dielectric rubber/vinyl coating for enhanced safety
- Pre-filled with oxide inhibitor to prevent corrosion
- Quick and simple installation with optional wire entry from either side
- Caps marked with connector max wire size for easy identification
- Easy re-entry for inspection, changes, or troubleshooting without taping
- One wire per port for secure connections
