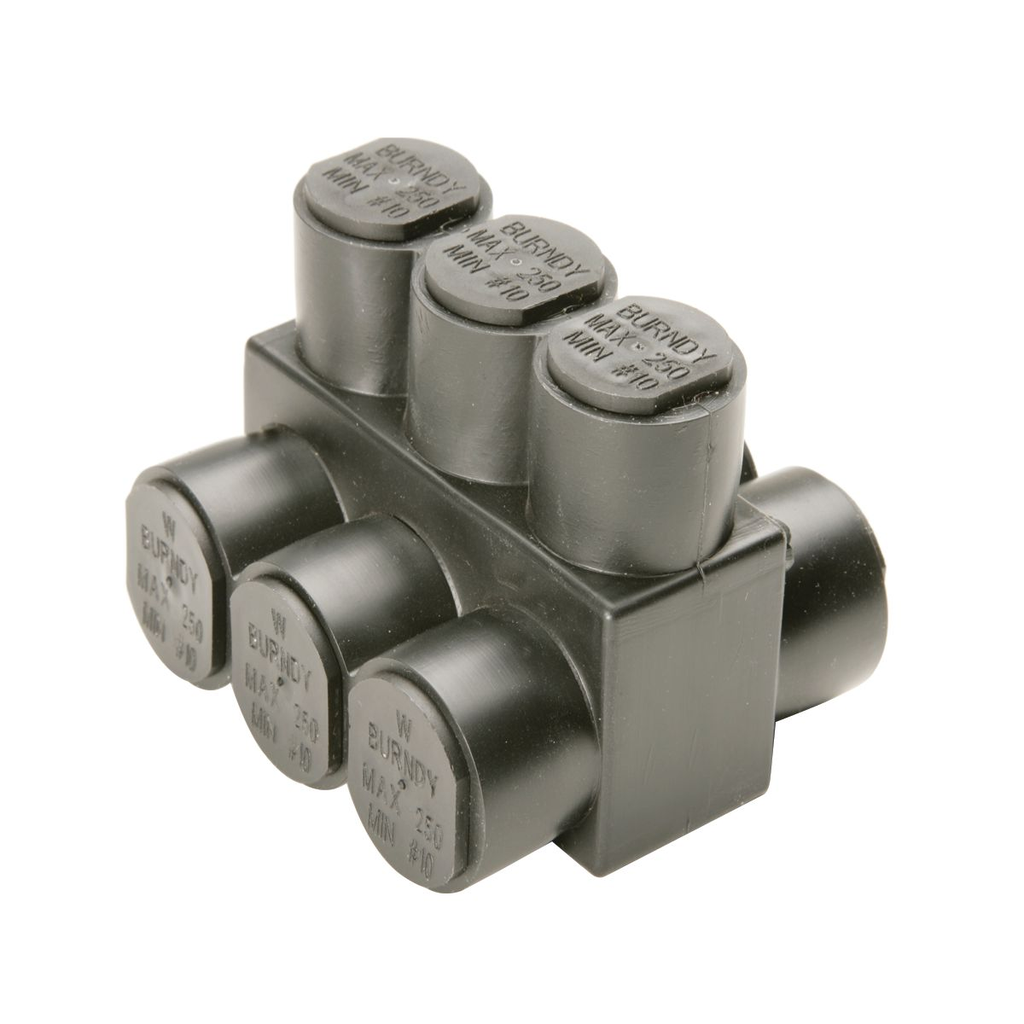

UNITAP™ PLD = Multi-Port Double Sided Entry Distribution Tap Connector

The UNITAP™ PLD is a multi-port aluminum distribution tap connector designed for indoor electrical applications. It features a double-sided entry with three ports, suitable for copper or stranded aluminum conductors ranging from 10 AWG to 350 KCMIL. This connector is covered with UV-resistant black plastisol insulation, rated for 600 V and a temperature of 90°C, making it appropriate for wire and cable connections in lighting solutions and switchgear supplied by electrical distributors.

Specifications

• Material: Aluminum
• Connection Type: Multi Tap
• Conductor Size: 10 AWG - 350 KCMIL
• Insulation Type: Plastisol
• Voltage Rating: 600 V
• Temperature Rating: 90°C
• Torque: 275 in/lbs
• Width: 3.00 in
• Product Weight: 0.4000 lbs
• Application: For Indoor Use Only, Copper or Stranded Aluminum
• Country of Origin: United States
• Made in USA: Yes

Features

• UV black plastisol covered for insulation and environmental protection
• Double-sided entry design with 3 ports for versatile wiring configurations
• Pre-installed oxide inhibitor to prevent moisture and contaminant ingress
• Range-taking capability reduces inventory requirements
• Torque set screws ensure secure and reliable connections
