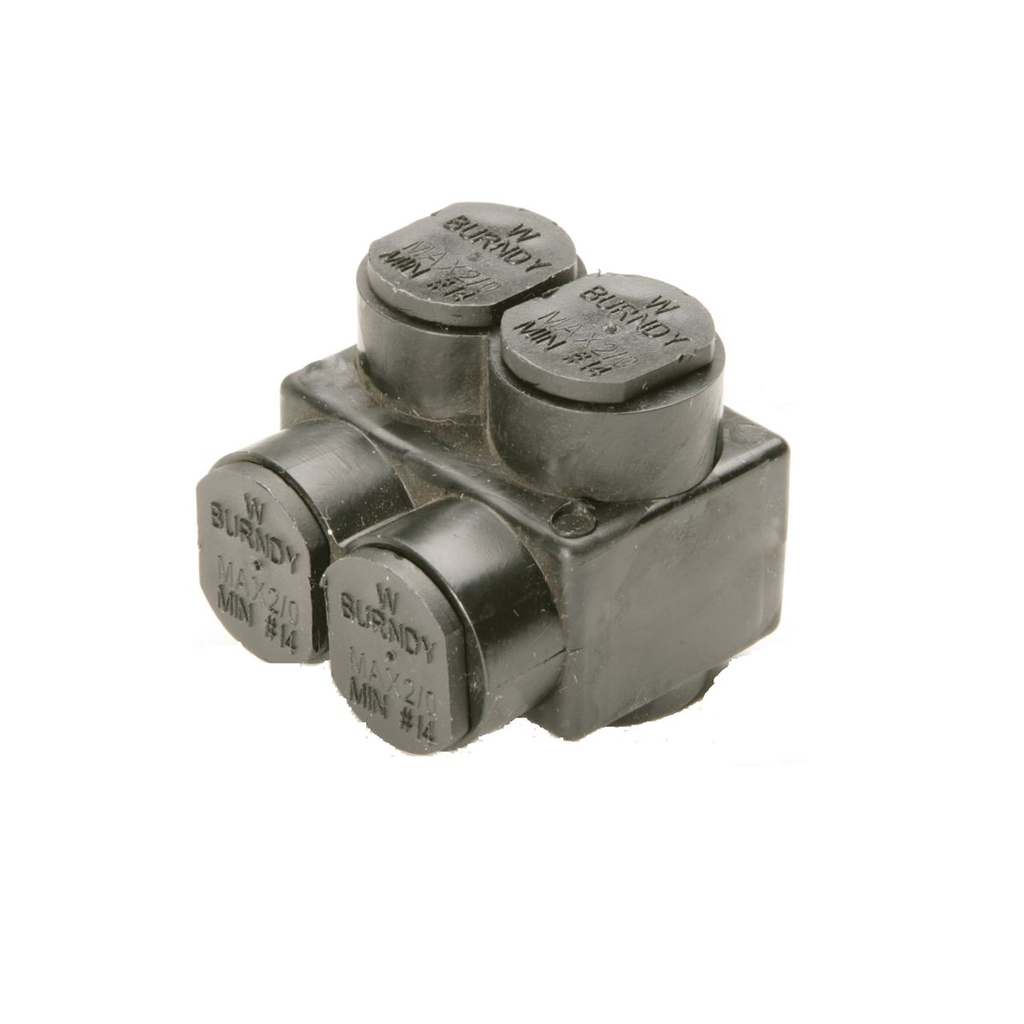

UNITAP™ PLD = Multi-Port Double Sided Entry Electrical Connector

The UNITAP™ PLD is a UV rated, multi-port double-sided entry connector designed for indoor electrical applications involving copper or stranded aluminum conductors. Its aluminum body is covered with UV rated Plastisol insulation, eliminating the need for taping and providing durable protection. This connector is suitable for wire and cable connections in lighting solutions and switchgear supply, offered by electrical distributors requiring reliable, insulated multi-tap connections.

Specifications

• Application: For Indoor Use Only, Copper Or Stranded Aluminum
• Material: Aluminum
• Insulation Type: Plastisol
• Conductor Size: 4 AWG - 600 KCMIL
• Connection Type: Multi Tap
• Width: 3 in
• Product Weight: 0.5 lbs
• Country of Origin: United States
• Made in USA: Yes

Features

• UV Rated black Plastisol insulation for sunlight resistance
• Aluminum AL6061-T6 body for strength and conductivity
• Eliminates need for taping, saving installation time
• Supports a wide conductor size range from 4 AWG to 600 KCMIL
• Double-sided entry multi-port design for flexible wiring configurations
