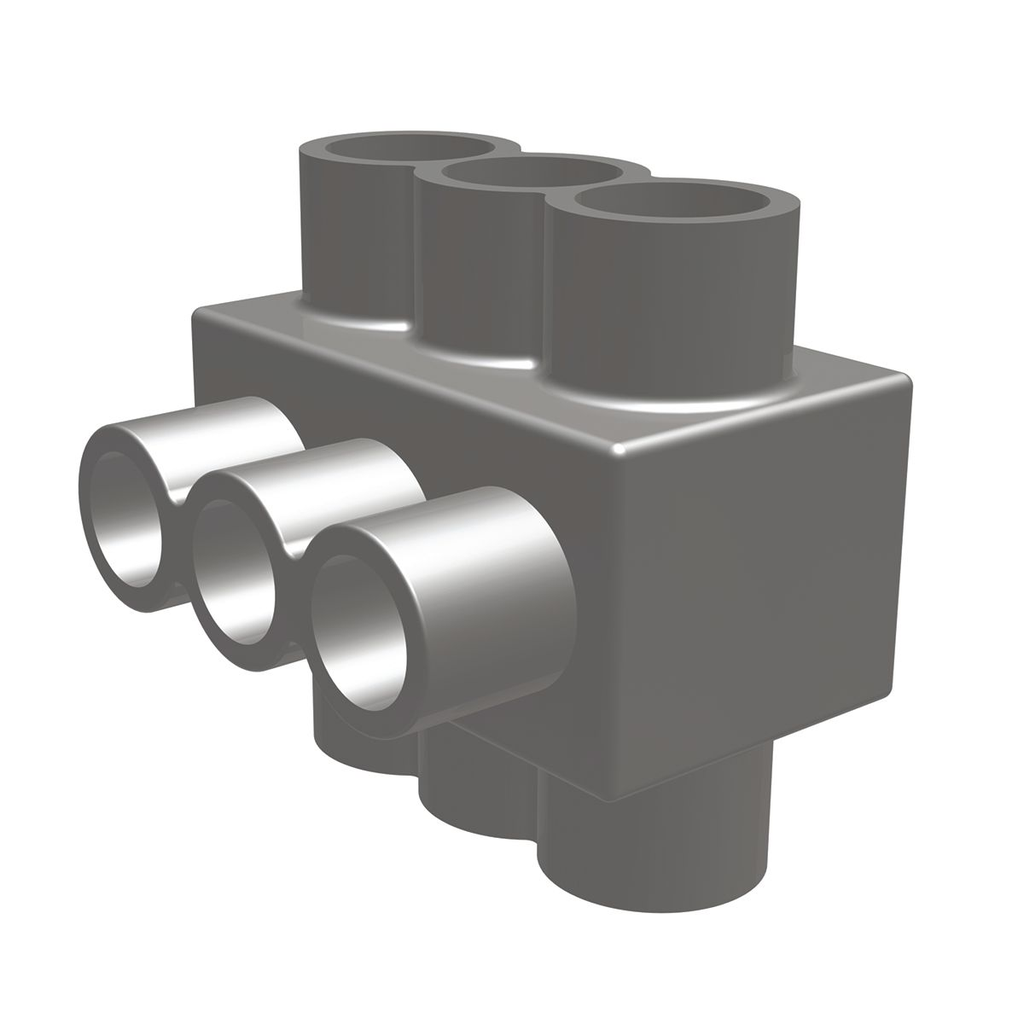

UNITAP™ PLD = Multi-Port Double Sided Entry Aluminum Distribution Tap Connector

The UNITAP™ PLD is a multi-port, double-sided entry aluminum distribution tap connector designed for indoor electrical applications. It is suitable for use with copper or stranded aluminum conductors, providing reliable electrical connections in wire and cable distribution systems. This product is ideal for electrical distributors and switchgear suppliers seeking quality lighting solutions and wiring components rated for 600 volts.

Specifications

• Material: Aluminum
• Connection Type: Multi Tap
• Conductor Size: 10 AWG - 350 KCMIL
• Insulation Type: Plastisol
• Application: For Indoor Use Only, Copper or Stranded Aluminum
• Voltage Rating: 600 V
• Temperature Rating: 90°C
• Torque: 275 in/lbs
• Width: 3.00 in
• Product Weight: 0.65 lbs
• Country of Origin: United States
• Made in USA: Yes

Features

• UV Black Plastisol Covered for enhanced insulation
• Four ports with double-sided entry for flexible wiring configurations
• Fully insulated, eliminating the need for additional taping
• Range-taking design accommodates a wide range of wire sizes
• Pre-filled conductor ports with oxide inhibitor to prevent corrosion
