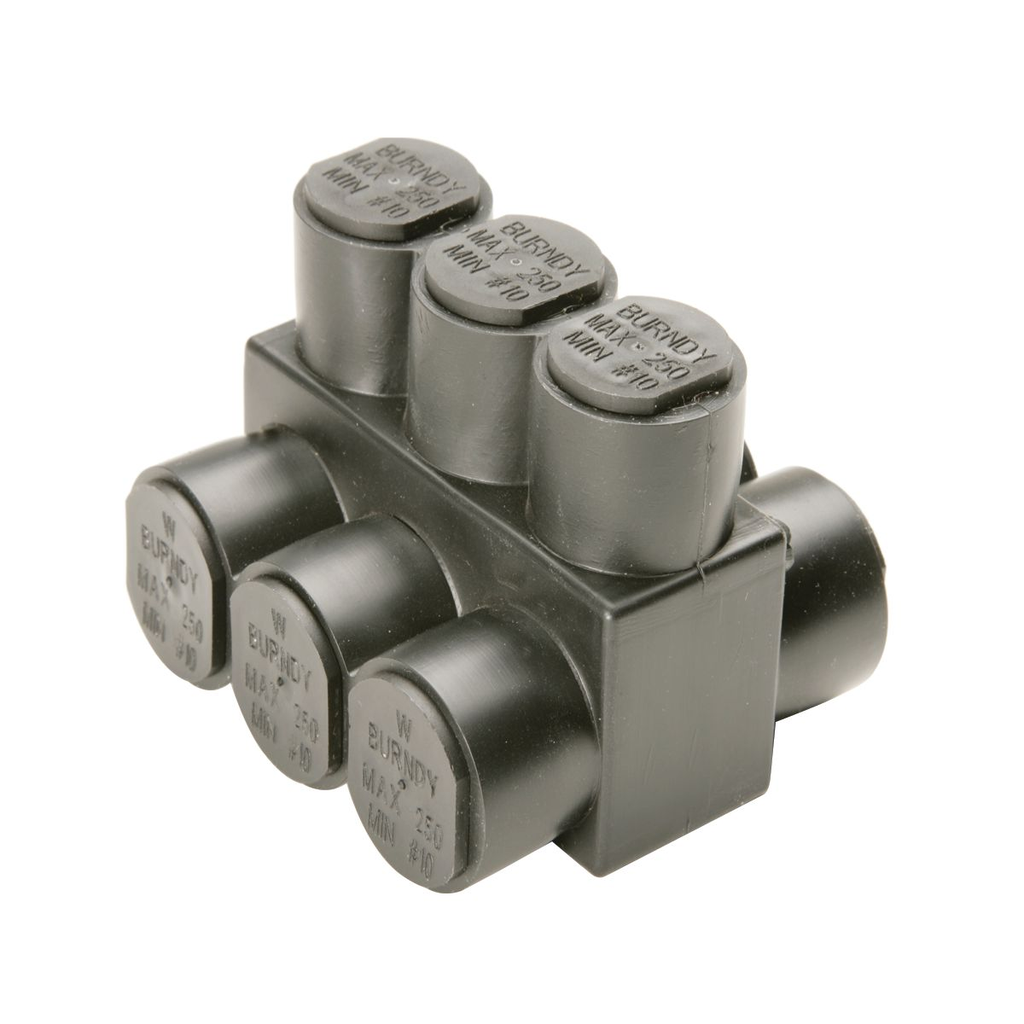

UNITAP™ PLD Multi-Port Double Sided Entry Electrical Connector

The UNITAP™ PLD is a multi-port double sided entry distribution connector designed for indoor electrical applications. It facilitates wiring taps for copper or stranded aluminum conductors ranging from 10 AWG to 250 kcmil. Suitable for use by electrical distributors, lighting solutions providers, wire and cable specialists, and switchgear suppliers, this connector offers reliable electrical connections in indoor environments.

Specifications

• Conductor Size: 10 AWG-250 KCMIL
• Connection Type: Multi Tap
• Material: Aluminum
• Insulation Type: Plastisol
• Width: 2.64 in
• Product Weight: 0.4000 lbs
• Application: For Indoor Use Only, Copper Or Stranded Aluminum
• Country of Origin: United States
• Made in USA: Yes

Features

• UV Black distribution connector body with plastisol insulation
• Oxide-inhibitor pre-installed to prevent moisture and contaminant ingress
• Range-taking design reduces number of connectors required in inventory
• Compact size with 2.97 in length and 2.64 in width for versatile installation
