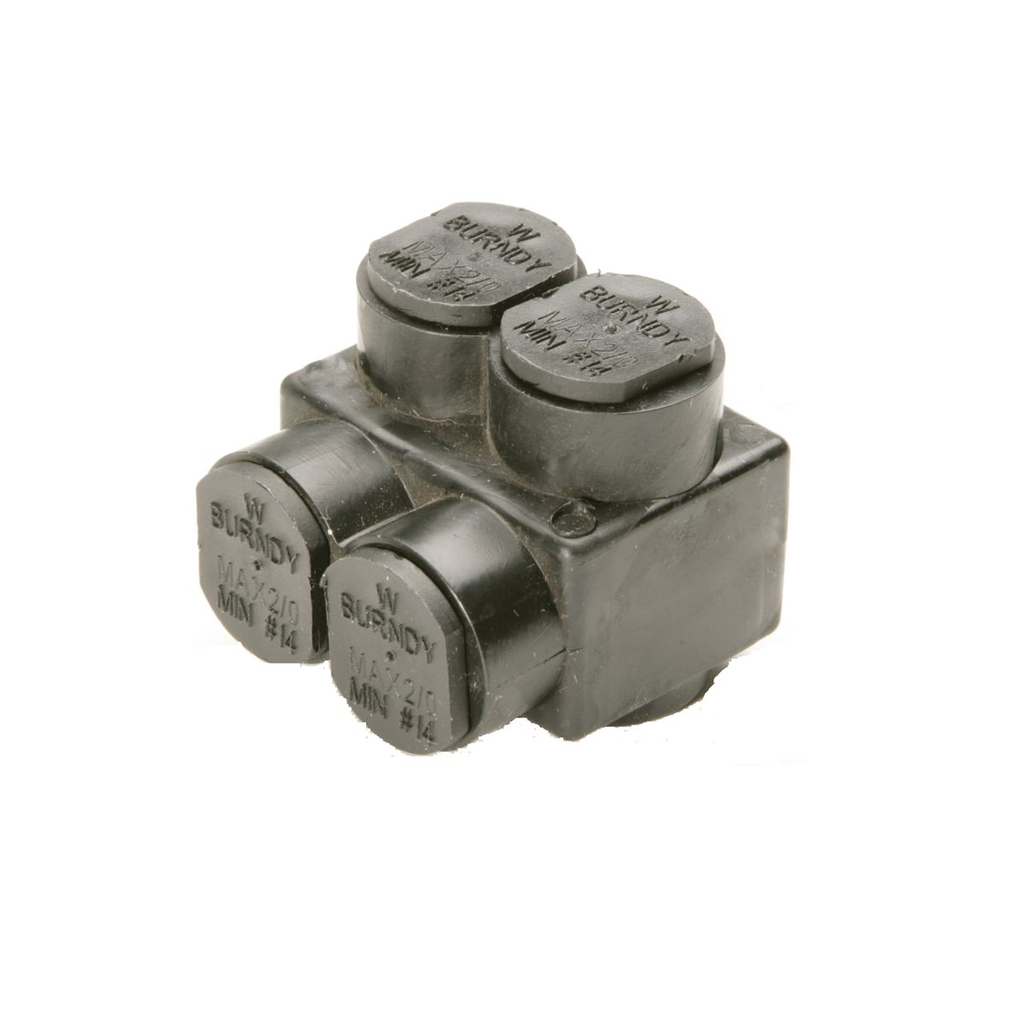

UNITAP™ PLD = Multi-Port Double Sided Entry Electrical Connector

The UNITAP™ PLD Multi-Port Double Sided Entry connector is designed for indoor electrical distribution applications, providing reliable connections for copper or stranded aluminum conductors. This component is suitable for electrical distributors and lighting solutions requiring durable wire and cable connections, as well as switchgear suppliers seeking quality tap connectors.

Specifications

• Material: Aluminum
• Conductor Size: 10 AWG - 350 KCMIL
• Connection Type: Multi Tap
• Insulation Type: UV Black Plastisol
• Voltage Rating: 600 V
• Torque: 275 in/lbs
• Temperature Rating: 90°C
• Width: 3.00 in
• Product Weight: 0.4000 lbs
• Application: For Indoor Use Only, Copper or Stranded Aluminum
• Country of Origin: United States
• Made in USA: Yes
• Manufacturer: Burndy
• Manufacturer Part #: 1PLD3502

Features

• Double-sided entry design with 2 ports for flexible wiring configurations
• Fully insulated with UV black plastisol for enhanced durability and protection
• Range-taking conductor ports accommodate wire sizes from #10 AWG to 350 kcmil
• Pre-filled conductor ports with oxide inhibitor to maintain reliable electrical performance
• Torque rating ensures secure and consistent connections
• Suitable for indoor electrical distribution tap applications
