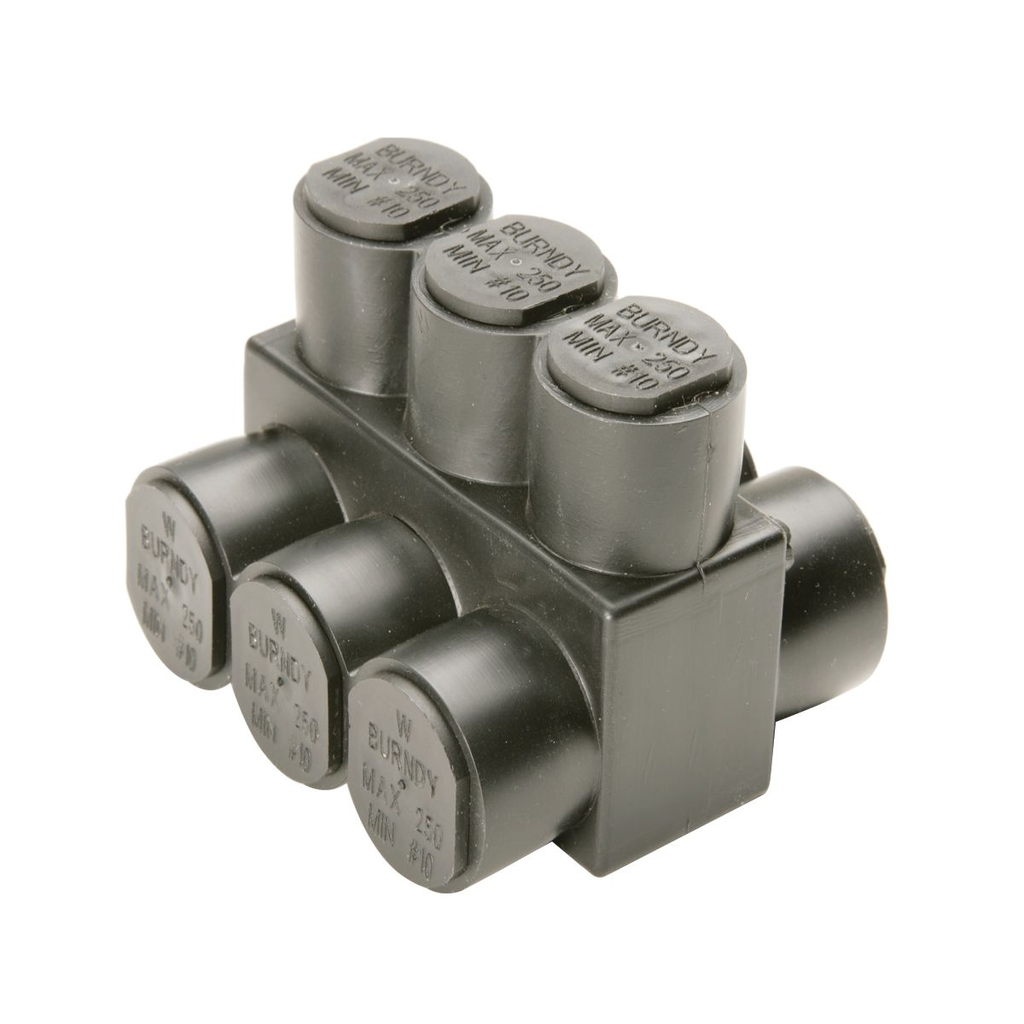

UNITAP™ PLD Multi-Port Double Sided Entry Connector

The UNITAP™ PLD is a UV-rated black insulated multi-port double-sided entry connector designed for indoor use with copper or stranded aluminum conductors. It facilitates reliable electrical connections in wire and cable distribution systems, suitable for electrical distributors and switchgear suppliers seeking durable tapping solutions. The connector supports conductor sizes ranging from #14 to 2/0 AWG and is insulated with plastisol material to ensure safety and performance.

Specifications

• Application: For Indoor Use Only, Copper Or Stranded Aluminum
• Conductor Size: 14-2/0 AWG
• Connection Type: Multi Tap
• Insulation Type: Plastisol
• Material: Aluminum
• Width: 1.56 in
• Product Weight: 0.1500 lb
• Made in USA: Yes
• Country Of Origin: United States

Features

• UV rated for durability in exposed environments
• Multi-port double-sided entry design for versatile wiring configurations
• Fully insulated to eliminate the need for additional taping
• Range-taking conductor ports accommodating wire sizes from #14 AWG to 2/0
• Pre-filled conductor ports with oxide inhibitor to maintain connection integrity
