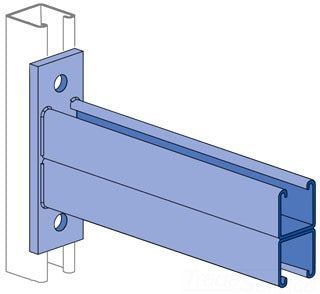

UNISTR P2542-HG P2542--HG Structural Bracket for Electrical Distributor Applications

The UNISTR P2542-HG P2542--HG is a heavy-duty structural bracket designed for mechanical support in electrical distributor and lighting solutions installations. It is engineered for use with 1 5/8" (41 mm) width series channels, providing robust support for wire and cable management systems and switchgear supplier frameworks. Manufactured from 1/4" (6.4 mm) thick hot-dipped galvanized steel, this bracket offers corrosion resistance and durability for indoor and outdoor applications.

Specifications

• Material: 1/4" (6.4 mm) thick steel
• Finish: Hot-dipped galvanized (HG), conforming to ASTM A123 or A153
• Dimensions "A": 12 in (304.8 mm)
• Weight per 100 pieces: 502 lbs (227.7 kg)
• Compatible Vertical Channels: P1000 (12 gauge), P1100 (14 gauge), P2000 (16 gauge)
• Uniform Design Load (lbs/kN): P1000 - 2000 lbs (8.9 kN), P1100 - 1400 lbs (6.2 kN), P2000 - 1000 lbs (4.4 kN)
• Hole Diameter: 9/16" (14 mm)
• Hole Spacing from End: 13/16" (21 mm)
• Hole Spacing on Center: 1 7/8" (48 mm)
• Width: 1 5/8" (41 mm)
• Thickness: 1/4" (6 mm)
• Safety Factor: 2.5

Features

• Constructed from hot-rolled, pickled, and oiled steel meeting ASTM A575, A576, A635, or A36 standards
• Corrosion-resistant hot-dipped galvanized finish for extended service life
• Designed for mechanical support compliance with the American Standard Code for Pressure Piping
• Compatible with multiple channel gauges and types for flexible installation options
• Precision hole spacing and diameter for reliable bolt connections (nuts and bolts sold separately)
