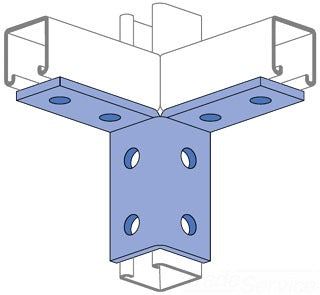

UNISTRUT P2225-EG Wing Shape Fitting for Electrical Distributor and Lighting Solutions

The UNISTRUT P2225-EG is a wing shape fitting designed for use with 1⅝" (41 mm) width series channels in electrical distributor, lighting solutions, wire and cable, and switchgear supplier applications. This fitting provides a robust and reliable connection point for channel framing systems, facilitating secure structural support and assembly in electrical and lighting installations.

Specifications

• Manufacturer Part #: P2225-EG
• Weight: 155 lbs per 100 pieces (70.3 kg)
• Material: Hot-rolled, pickled and oiled steel conforming to ASTM A575, A576, A635, A36, and ASTM A1011 SS GR 33
• Finish: Electro-galvanized (EG), conforming to ASTM B633 Type III SC1
• Dimensions: 3 7/8" (98.4 mm) height and width
• Hole Size: 9/16" diameter (14 mm)
• Hole Spacing: 13/16" (21 mm) from end, 1 7/8" (48 mm) on center
• Width: 1 5/8" (41 mm)
• Thickness: 1/4" (6 mm)
• UPC: 786364027135

Features

• Manufactured from high-quality steel with a smooth, scale-free surface due to pickling process
• Electro-galvanized finish provides corrosion resistance suitable for electrical and lighting environments
• Compatible with standard 1⅝" Unistrut channels for flexible framing and mounting solutions
• Designed with precise hole spacing for secure fastening using 1/2" hex head cap screws and nuts (ordered separately)
• Meets ASTM standards ensuring material strength and durability
