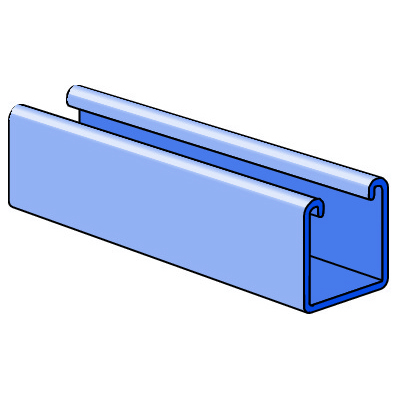

UNISTRUT P1000-10HG STRUT, 1-5/8inSQ, Hot-Dipped Galvanized Channel

The UNISTRUT P1000-10HG is a 1-5/8 inch square framing channel designed for structural support and mounting applications in electrical distribution, lighting solutions, wire and cable management, and switchgear assembly. Manufactured by Unistrut in the USA, this channel is cold-formed from low-carbon strip steel to ensure dimensional accuracy and strength. Its hot-dipped galvanized finish provides corrosion resistance suitable for indoor and outdoor installations.

Specifications

• Length: 10 ft
• Product Weight: 189 lbs per 100 ft
• Material Thickness: 12 Gauge Nominal Thickness (.105" / 2.7 mm)
• Allowable Moment: 5,070 in-lbs (570 N·m)
• Finish: Hot-dipped galvanized (HG), conforming to ASTM A123
• Made in USA: Yes
• Manufacturer Part Number: P1000-10HG
• Country of Origin: United States

Features

• Cold-formed from low-carbon strip steel for consistent quality and strength
• Spot-welded combination members with welds spaced 3" (76 mm) maximum on center
• Corrosion-resistant hot-dipped galvanized finish conforming to ASTM A123
• Compatible with a wide range of electrical distribution and lighting support systems
• Designed to prevent rotation and twist when properly supported
