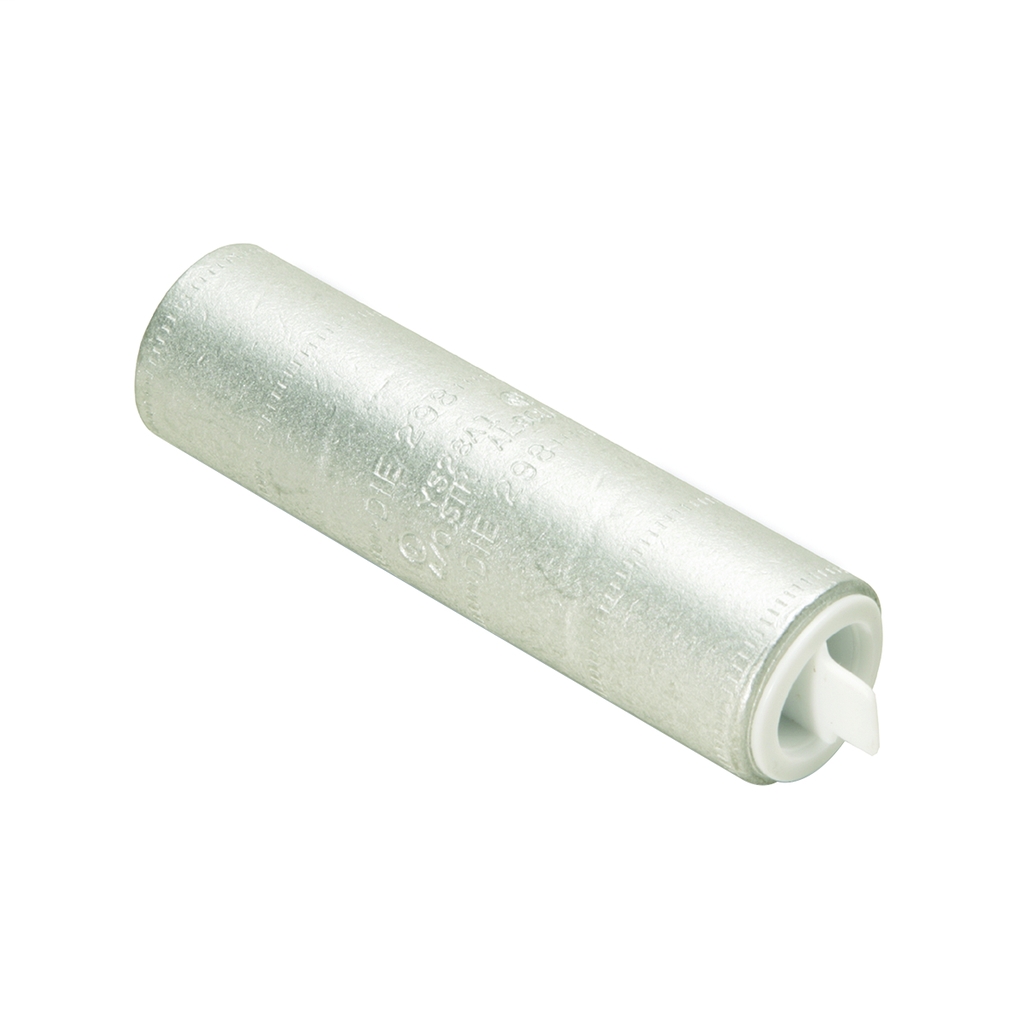

Uninsulated Aluminum Compression Splice
SKU: #332774
Part: #YS32A1
UPC: 781810757529
Uninsulated Aluminum Compression Splice
SKU: #332774
Part: #YS32A1
UPC: 781810757529
Description
Uninsulated Aluminum Compression Splice - Wire Splice
The Uninsulated Aluminum Compression Splice is designed for reliable electrical connections in wire splicing applications. Manufactured by Burndy, this splice is suitable for use by electrical distributors and switchgear suppliers requiring durable and effective connectors for wire and cable systems. It supports all combinations of aluminum to aluminum, aluminum to copper, and copper to copper conductors, making it versatile for various lighting solutions and electrical distribution needs.
Specifications
- Material: Aluminum
- Finish: Tin - Electro Plated
- Color: Black
- Color Coding: Green
- Conductor Size: 400 kcmil
- Application: Wire Splice
- Max. Voltage: 35,000 volts
- Length Overall: 4.86 in
- Outside Diameter: 1.19 in
- Strip Length: 2-1/2 in
- Die Index: 472
- Temperature Rating: 194 °F
- UL Listed: Yes
- CSA Approved: Yes
- Industry Standards Met: UL 486A-486B
- Manufacturer Part #: YS32A1
- Product Weight: 0.3700 lbs
Features
- Manufactured from high-conductivity wrought aluminum with heavy-duty wall thickness for low resistance and ductility.
- Tin electro-plated finish provides durable, long-lasting corrosion resistance.
- Internally bevelled barrel for easy cable entry.
- Solid center stop and prefilled with PENETROX oxide inhibiting compound to ensure proper conductor insertion and oxidation protection.
- Color-coded end caps for easy wire size and die code identification, preventing contamination prior to use.
- Clearly marked with wire size, die index, and crimp location for easy identification and tooling guidance.
- Proper compression forms a homogeneous mass, ensuring excellent electrical connection.
