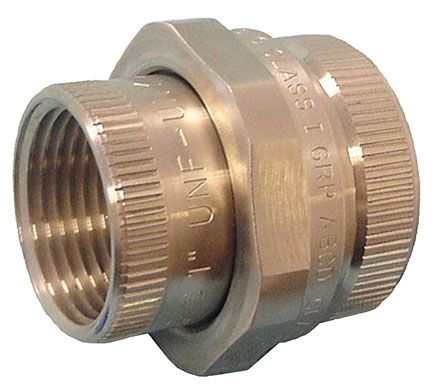

UNF100NR Explosionproof Conduit Union

The Appleton‚Ñ¢ UNF100NR Explosionproof Conduit Union is designed for joining conduit and connecting conduit to enclosures in hazardous locations. It facilitates modifications and permits the removal of enclosures without turning or removing conduit, making it suitable for electrical distributors and switchgear suppliers requiring reliable explosionproof and dust-ignitionproof conduit fittings. This union is ideal for use in industrial electrical and lighting solutions where wire and cable protection is critical.

Specifications

• Manufacturer: Appleton
• Manufacturer Part #: UNF100NR
• Material: Zinc Electroplated Steel
• Length: 1.72 Inch
• Diameter: 2 inches
• Product Weight: 0.4700 lbs
• UPC: 781381234146
• Certifications: UL Listed for Class I, Division 1 and 2, Groups B, C, D; Class II, Division 1 and 2, Groups E, F, G; Class III (per NEC/CEC standards)

Features

• Explosionproof and dust-ignitionproof design for hazardous locations
• Facilitates conduit joining and connection to enclosures without disassembly
• Smooth, rounded integral bushing in each hub to protect conductor insulation
• Accurately tapped, tapered threads for tight, rigid joints and ground continuity
• Non-expansion union suitable for use in tight spaces
• Zinc electroplated steel construction provides corrosion resistance
