Features

• Smooth, Rounded Integral Bushing in Each Hub Protects Conductor Insulation
• Accurately Tapped, Tapered Threads for Tight, Rigid Joints and Ground Continuity
• Non-Expansion Union
• 1-Piece Design Eliminates Need for Disassembly During Installation
• Telescoping Cylinder within Cylinder Design Permits Expansion or Contraction
• Small External Diameter Excellent in Restricted Areas in Wiring of Pumps, Motors and Other Equipment
• Internal Phosphor Bronze Bonding Jumper Ring Assures Positive Ground Between Telescoping Cylinder

Additional Information

• Application Joining Conduits or Conduit to Enclosures or Other Devices, Without Rotation of Conduits, Allows Future Access and Removal of System Components

Specifications

• Type: Female/Female
• Material: Zinc Plated Steel
• Trade Size: 1 Inch

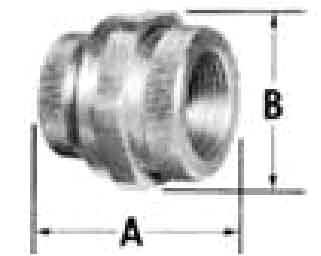

• Diameter: 2-1/16 Inch
• Length: 2 Inch
• Approval: UL 886, CSA C22.2
• Series/Model: UNF
