Morris Products
Underground Insulation Piercing Pedestal Connectors- Multi-Port 6 Port (2) #2 - 350 MCM (4) #6 - 4/0
SKU: #280731
Part: #96144
UPC: 601986961448
Morris Products
Underground Insulation Piercing Pedestal Connectors- Multi-Port 6 Port (2) #2 - 350 MCM (4) #6 - 4/0
SKU: #280731
Part: #96144
UPC: 601986961448
Description
Underground Insulation Piercing Pedestal Connectors - Multi-Port 6 Port Electrical Connector
This underground insulation piercing pedestal connector is designed for reliable electrical connections in wire and cable installations. It features a submersible, waterproof design suitable for outdoor and underground applications, making it ideal for electrical distributors and switchgear suppliers requiring durable lighting solutions and wire connections without cable stripping or crimping.
Specifications
- Manufacturer: Morris Products
- Manufacturer Part #: 96144
- Wire Range: #2 - 350 MCM
- Ports: 6 (Two ports for #2 - 350 MCM, Four ports for #6 - 4/0)
- Voltage Rating: 600 V
- Torque Specification: 185 in/lbs
- Dimensions (L x W x H): 8.4 in x 4.0 in x 2.5 in
- Weight: 6.0 lbs
- Insulation: Abrasion and Chemical Resistant

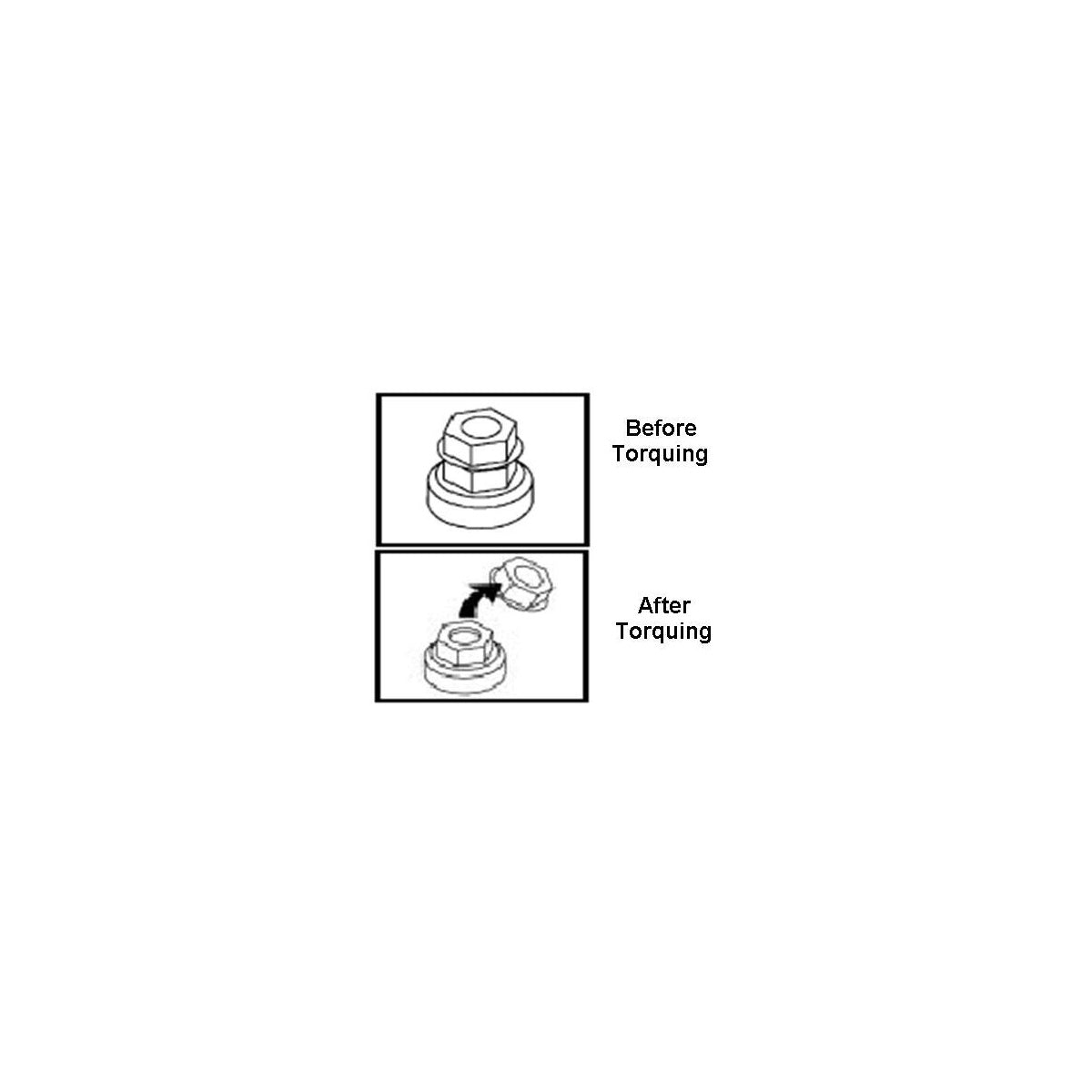

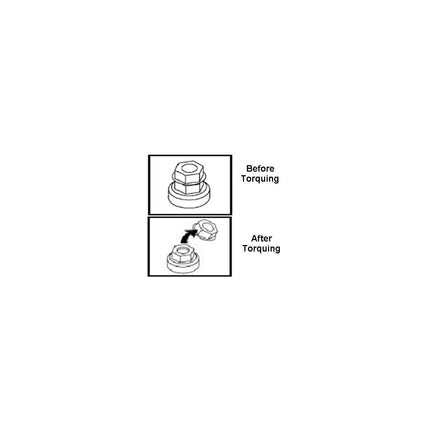

- Bolt: Hex Head 2 Part Shear Nut
- Certifications: UL, cUL, RoHS
Features
- Insulated submersible mechanical connector
- Insulation piercing self-sealing, touch-proof hot tap connector
- Multi-tap bi-directional conductor entry for flexible wiring
- Aluminum mechanical connector suitable for aluminum and copper conductors (AL/CU dual rated)
- No cable stripping or crimping required for installation
