Description
Underground Insulation Piercing Pedestal Connectors - In-Line #1/0 - 350 MCM Electrical Connector
This submersible insulation piercing mechanical connector is designed for underground electrical applications, providing reliable and waterproof connections without the need for cable stripping or crimping. It supports multi-cable bi-directional entry, making it suitable for use by electrical distributors and switchgear suppliers requiring durable wire and cable connectors in lighting solutions and other electrical systems.
Specifications
- Wire Range: #2 - 350 MCM
- Ports: 2
- Torque Spec: 185 in/lbs
- Voltage Rating: 600 V
- Length: 7.0 in
- Height: 2.1 in
- Width: 1.4 in
- Material: Abrasion & Chemical Resistant Insulation

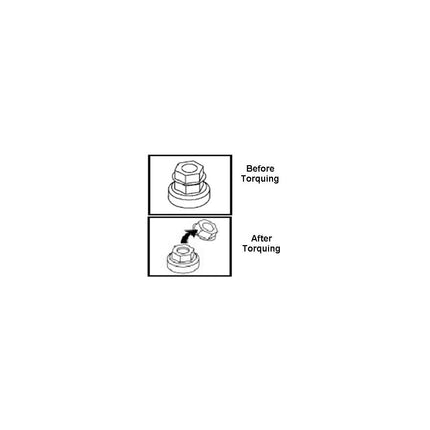

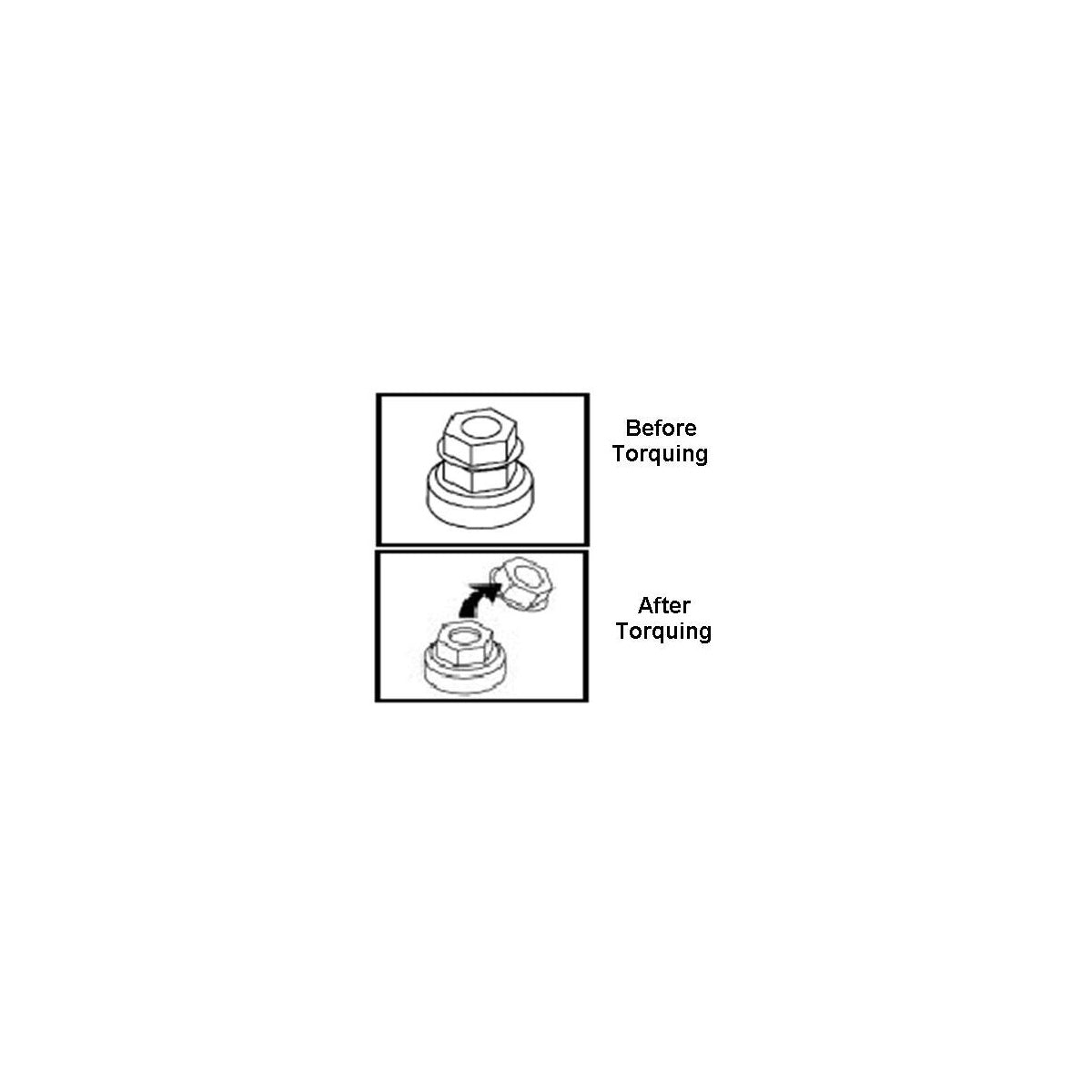

- Bolt: Hex Head 2 Part Shear Nut
- Certifications: UL, cUL, RoHS
Features
- Insulated submersible mechanical connector for waterproof electrical connections
- Insulation piercing self-sealing touch-proof hot tap connector
- Multi-tap bi-directional conductor entry
- Aluminum mechanical connector with AL/CU dual rating
