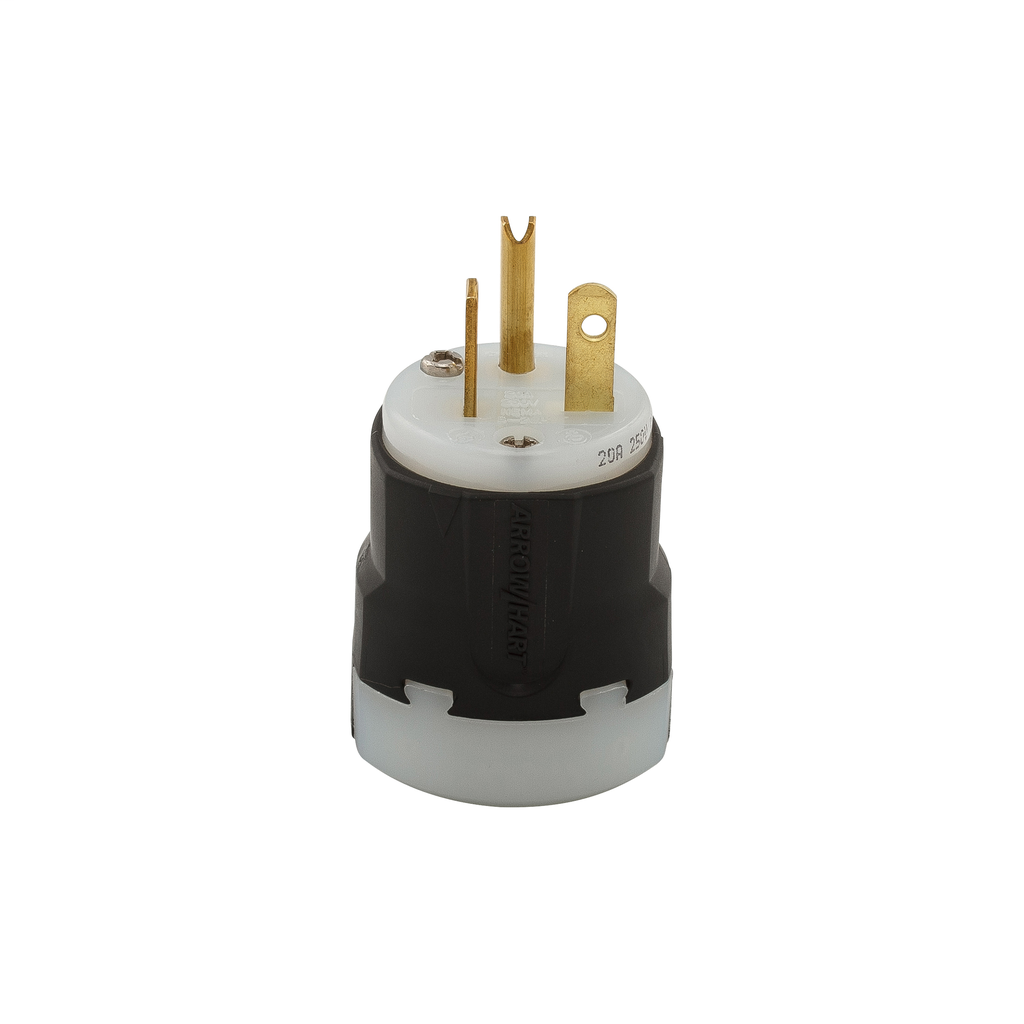

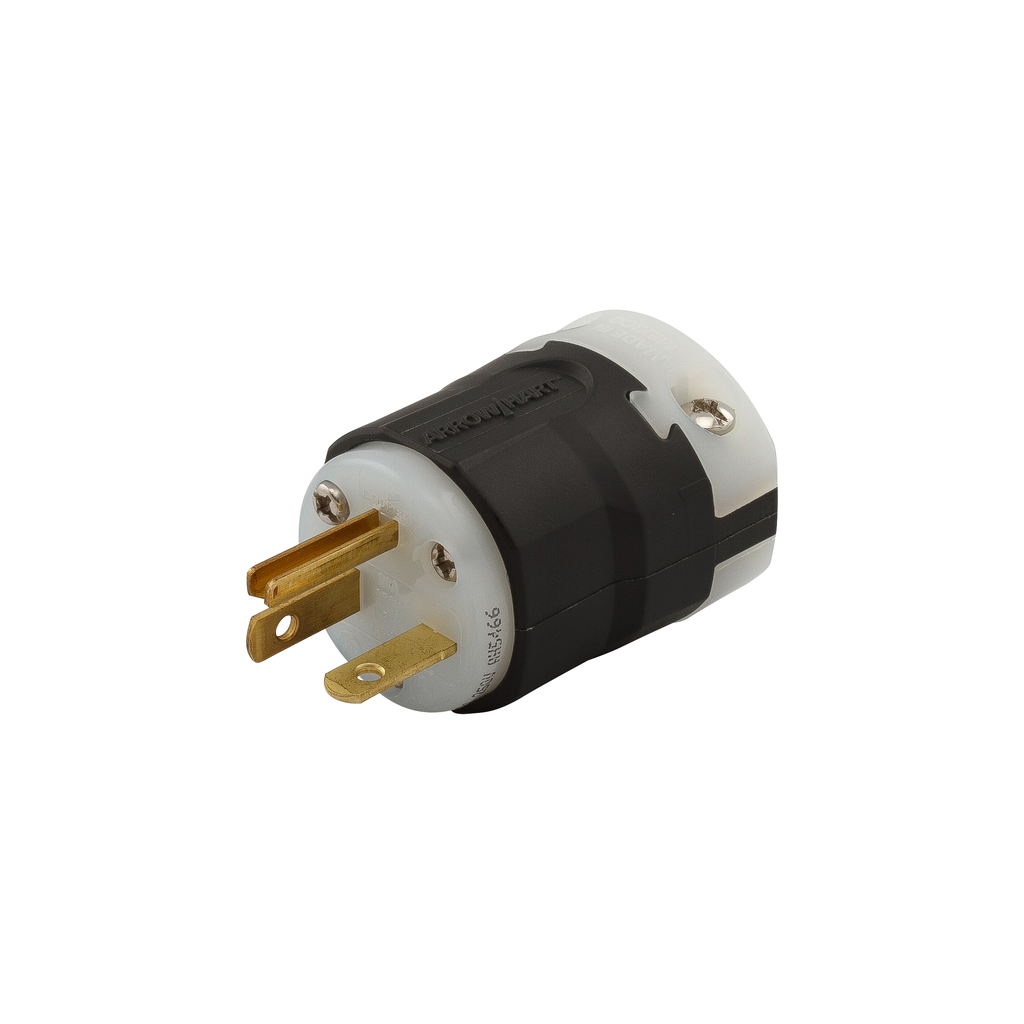

Ultra Grip Plug - Industrial Grade Electrical Plug

The Ultra Grip Plug by Cooper Wiring Devices is a 20-ampere, 250V AC industrial-grade straight blade plug designed for reliable electrical connections in demanding environments. Constructed with a rugged nylon body, this plug offers durability and resistance to impact and chemicals, making it suitable for electrical distributors, lighting solutions, wire and cable applications, and switchgear suppliers requiring high-performance connectors.

Specifications

• Manufacturer Part #: AH5466
• Amperage: 20 amperes
• Voltage: 250 V AC
• Number of Poles: 2
• Number of Wires: 3
• Material: Nylon
• Color: Black
• Product Weight: 0.1650 lbs
• UPC: 032664737572
• Wiring Type: Back wire
• Terminal Accommodation: #16 - #12 AWG
• Flammability Rating: UL94 V2 rated
• Temperature Rating: -40°C to 75°C (-40°F to 167°F)
• Dielectric Voltage: Twice device rating + 1000V per UL498
• Current Interrupting: Yes, at full-rated current
• Temperature Rise: Max 30°C after 250 cycles of overload at 200% rated current (DC)

Features

• Rugged nylon body resists impact and chemical exposure
• Solid brass plug blades firmly embedded in body for secure connection
• Terminals in individual chambers for positive insulation of conductors
• Assembly screws are speed-threaded and captive, reducing installation time
• Textured surface for easy grip and handling
• Dual range cord grip provides positive cord gripping while limiting strain on conductors
• Neoprene gasket seals around cord for added terminal protection from external elements
• Rating information clearly marked on face of device
• Wiring chamber provides generous space for wiring
