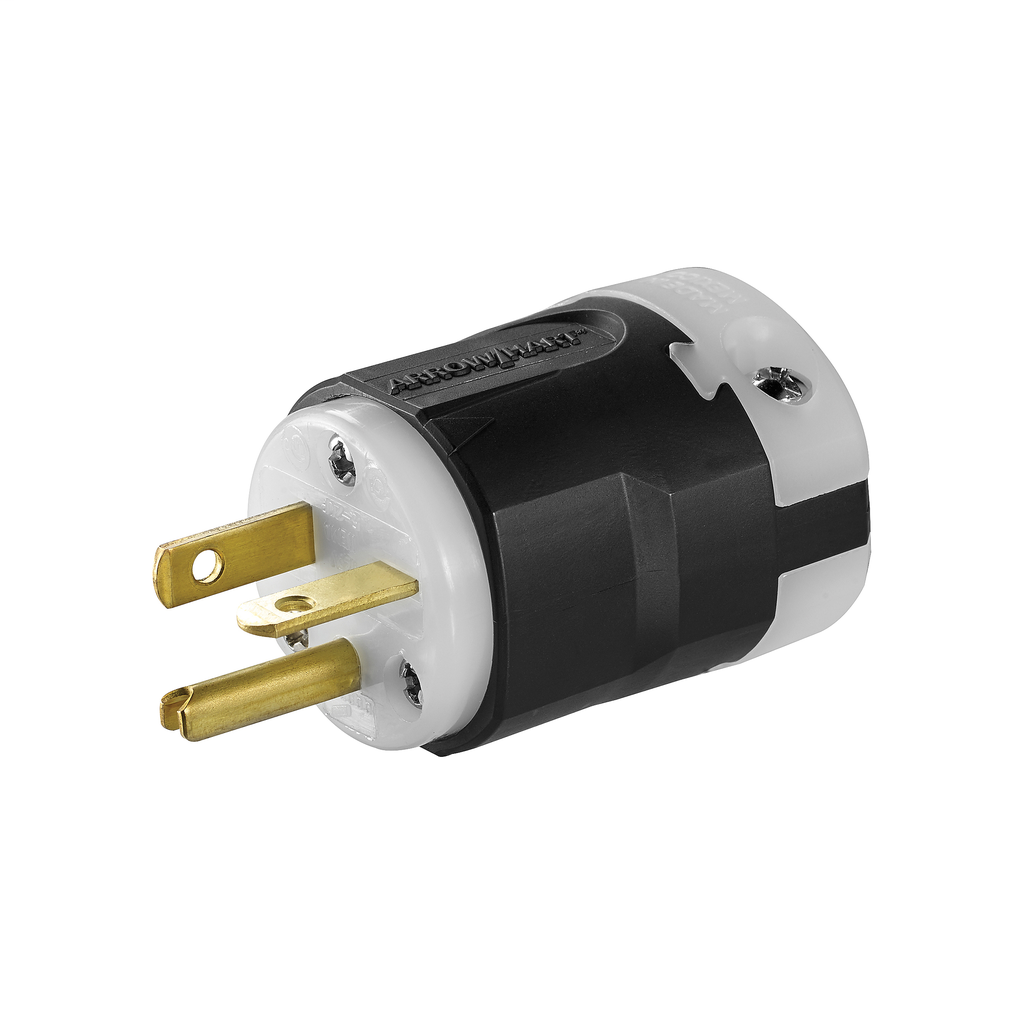

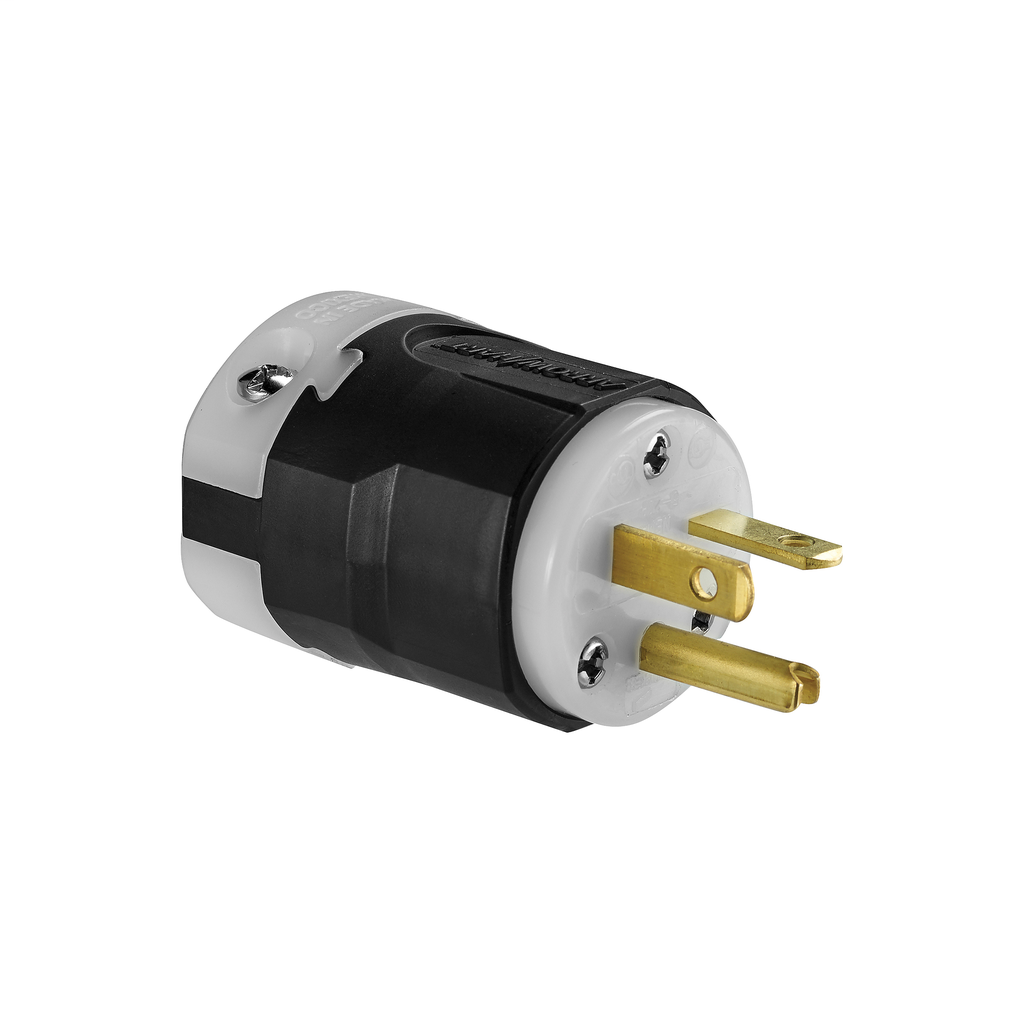

Ultra Grip Plug - Industrial Grade Electrical Connector

The Ultra Grip Plug by Cooper Wiring Devices is a 20-ampere, 125V industrial grade straight blade plug designed for reliable electrical connections in commercial and industrial applications. Its robust construction and design make it suitable for use by electrical distributors and switchgear suppliers requiring durable and safe wiring components. The plug supports 2 poles and 3 wires, fitting standard NEMA 5-20 configurations for 2-pole, 3-wire systems.

Specifications

• Amperage: 20 amperes
• Voltage: 125 V/AC
• Number of Poles: 2
• Number of Wires: 3
• Material: Nylon (outer shell and interior body)
• Color: Black
• Terminal Accommodation: #16 - #12 AWG wire size
• Blade Thickness: 0.062" thick brass
• Line Contacts: 0.031" thick brass
• Ground Contact: 0.041" thick brass
• Flammability Rating: UL94 V2 rated
• Temperature Rating: -40°C to 75°C (-40°F to 167°F)
• Cord Grip Range: 0.25 - 0.66 inches (6.4 - 16.7 mm)
• Product Weight: 0.1650 lbs

Features

• High impact-resistant thermoplastic housing with easy-grip grooves for secure handling
• Solid brass plug blades firmly embedded for durability and conductivity
• Terminals housed in individual chambers for positive conductor insulation
• Assembly screws are speed-threaded and captive to reduce installation time
• Terminal screws backed out and ready for wiring to simplify installation
• Meets UL, cULus, Fed Spec, NAFTA, RoHS, and CSA certifications for safety and compliance
• Designed to withstand full-rated current interruption and high dielectric voltage
