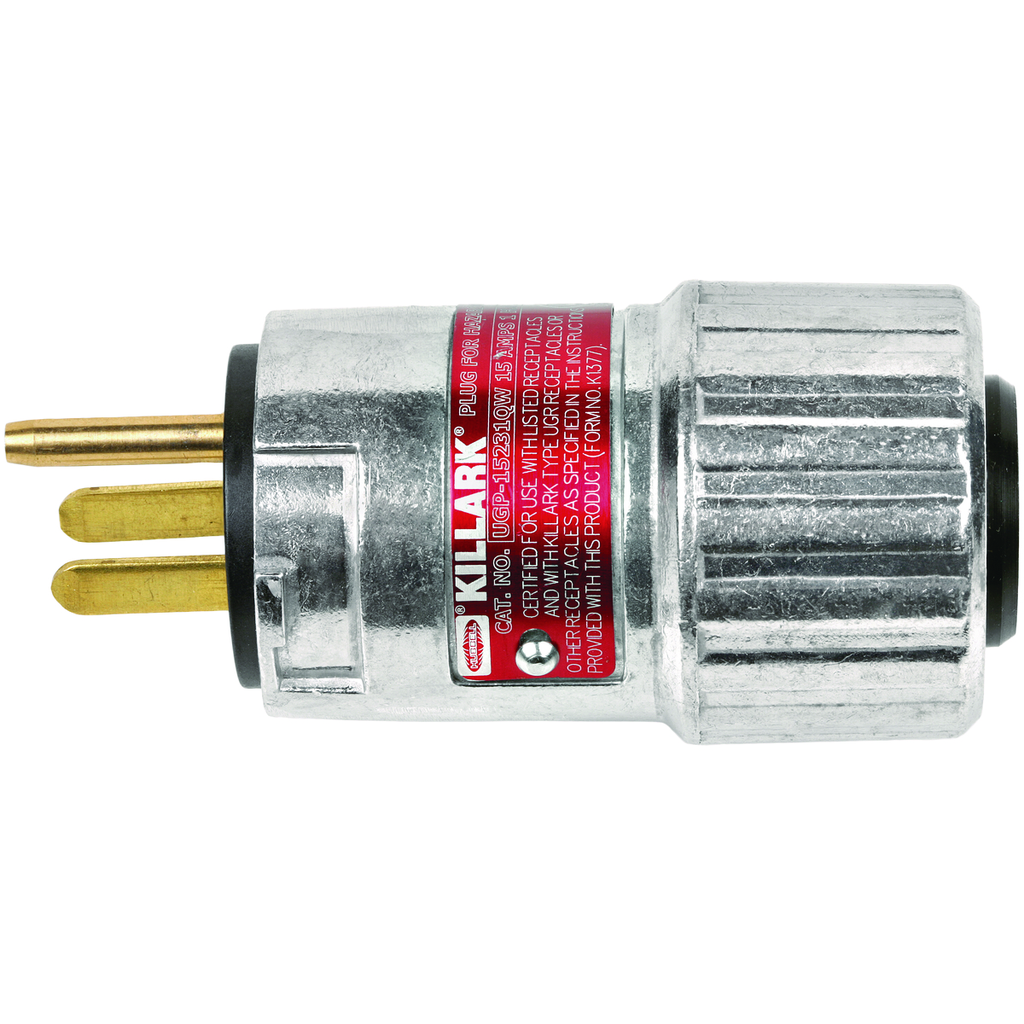

UGP-15231 Quick Wiring Plug for Hazardous Locations

The Killark UGP-15231 is a quick wiring plug designed for use in hazardous environments such as petroleum refineries, chemical plants, grain elevators, and wet or corrosive areas. This plug is suitable for electrical distributors and switchgear suppliers requiring reliable connections in wet and hazardous locations. It supports heavy-duty cords of types S, SO, ST, or STO and is compatible with NEMA bladed receptacles for explosion-proof and dust ignition-proof applications.

Specifications

• Manufacturer: Killark
• Manufacturer Part #: UGP-15231
• Amperage Rating: 15A
• Number of Poles: 2
• Number of Wires: 3
• NEMA Rating: 5-15P; NEMA 3, 7BCD, 9FG
• Material: Copper-free aluminum (less than 4/10 of 1%)
• Dimensions (L x W x H): 6.75 in x 2.3 in x 1.8 in
• Cord Type: S, SO, ST, or STO
• Weight: 0.4 lbs
• Country of Origin: China
• Application: Petroleum refineries, chemical plants, wet/damp areas, corrosive environments, petroleum plants, grain elevators/feed mills, flour and feed mills, indoor or outdoor locations
• Environmental Conditions: Wet and hazardous locations

Features

• Single-piece shell design for fewer parts and enhanced durability
• Quick wiring with side tightening terminals using full-sized #2 screwdriver (flat or Phillips)
• Built-in wire strip gauge and wire guides for easy conductor insertion
• Insulator fits one way only to ensure correct assembly
• Centered cable grip for secure cable retention
• Copper-free aluminum alloy resists corrosion in harsh environments
• Electrostatically applied and baked powder epoxy/polyester finish for long-lasting protection
• Certified for use in Class I, Division 1 & 2 hazardous locations with multiple group ratings
• Interchangeable with other NEMA bladed explosion-proof and dust ignition-proof devices
