Morris Products
UF Direct Burial Splice Kits - Heat Shrink 14-8 AWG UF
SKU: #274260
Part: #67000
UPC: 601986670005
Morris Products
UF Direct Burial Splice Kits - Heat Shrink 14-8 AWG UF
SKU: #274260
Part: #67000
UPC: 601986670005
Description
UF Direct Burial Splice Kits - Heat Shrink 14-8 AWG Electrical Splice Kit

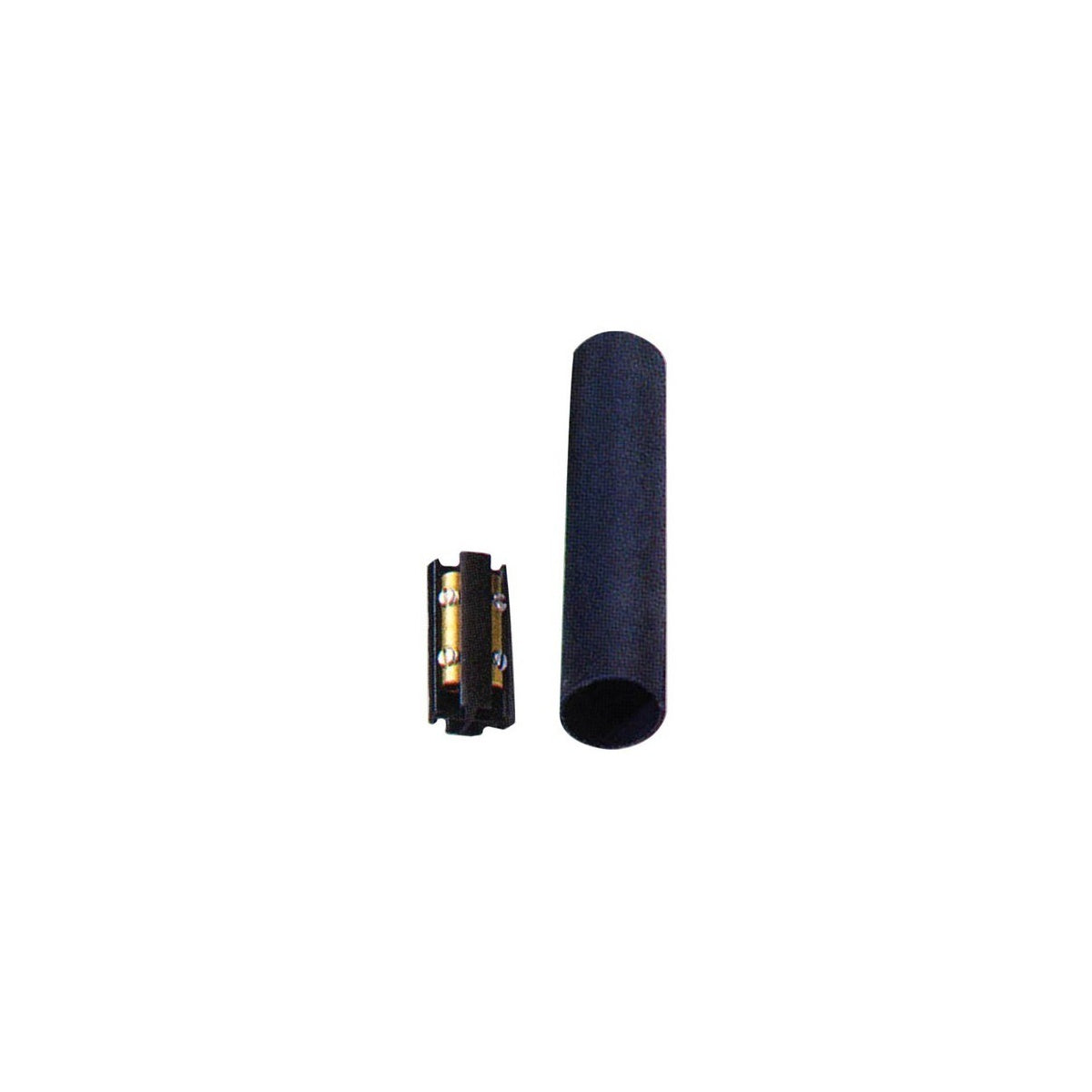

This UF Direct Burial Splice Kit is designed for reliable underground electrical wire splicing, suitable for cable sizes ranging from 14 to 8 AWG. It is ideal for electrical distributors and lighting solutions providers requiring durable, direct burial-rated splice connections. The kit includes a heavy wall adhesive-lined heat shrink sleeve and a standard 4-position UF connector, ensuring secure, moisture-resistant splices for solid or stranded copper conductors.
Specifications
- Conductor Size: 14/3, 14/2, 8/3 UF
- Material: Phenolic Connector with Brass Contacts
- Screws: Zinc Plated Steel
- Length: 8" Heat Shrink, 1" Connector
- Temperature Rating: 221°F (105°C)
- Voltage Rating: 600 V
- UL Certification: UL 486D Direct Burial Rated
- Product Weight: 0.2250 lbs
- UPC: 601986670005
Features
- Heavy wall adhesive-lined heat shrink for moisture protection
- Standard 4-position UF connector for versatile wire splicing
- UL Listed for use with solid or stranded copper conductors
- Direct burial rated for underground electrical installations
