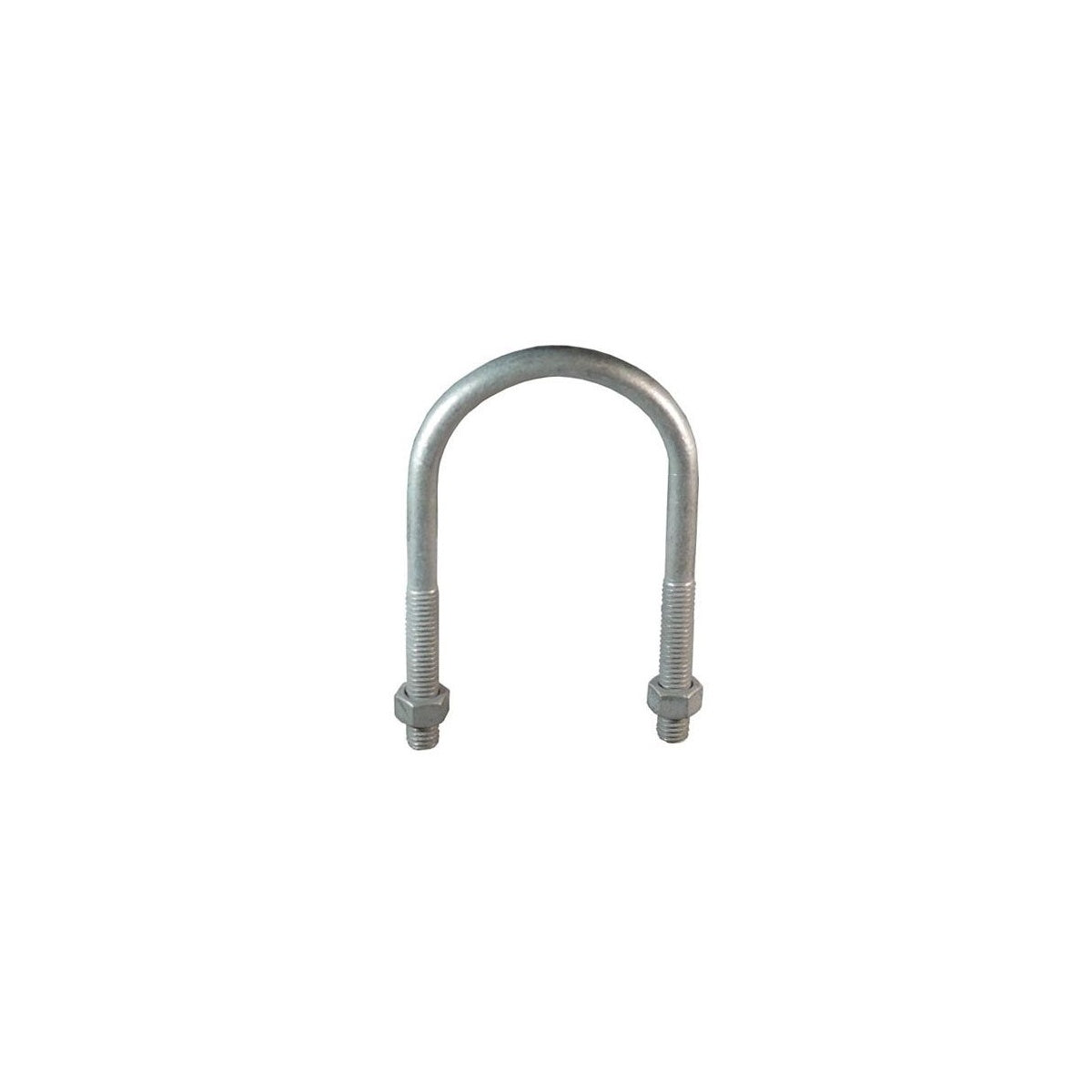

UBC150, Rigid Conduit U-Bolt – Heavy Duty Electrical Fitting

The Appleton UBC150 Rigid Conduit U-Bolt is designed for securing rigid metal conduit, IMC, or EMT in electrical installations. This heavy-duty U-bolt is suitable for use by electrical distributors and switchgear suppliers requiring reliable conduit fastening across, parallel, or perpendicular to beam, channel, and angle supports. It offers durable performance in industrial and commercial lighting solutions and wire and cable management systems.

Specifications

• Nominal Diameter: 1-1/2 Inch
• Thread Length: 2.26 Inch
• Center Distance: 2.16 Inch
• Material: Steel (Malleable Iron per application)
• Finish: Mechanically Galvanized
• Product Weight: 0.2000 lb
• Applicable Standards: CSA C22.2, CEC Certified (CSA Standard: C22.2 No. 18.4, CSA Certified: 065178)
• Includes Hex Nut

Features

• Heavy-duty construction suitable for rigid metal conduit, IMC, and EMT applications
• Hot dip galvanized finish for corrosion resistance and durability
• Easily installs to secure conduit to structural supports
• Capable of withstanding heavy loads in industrial environments
