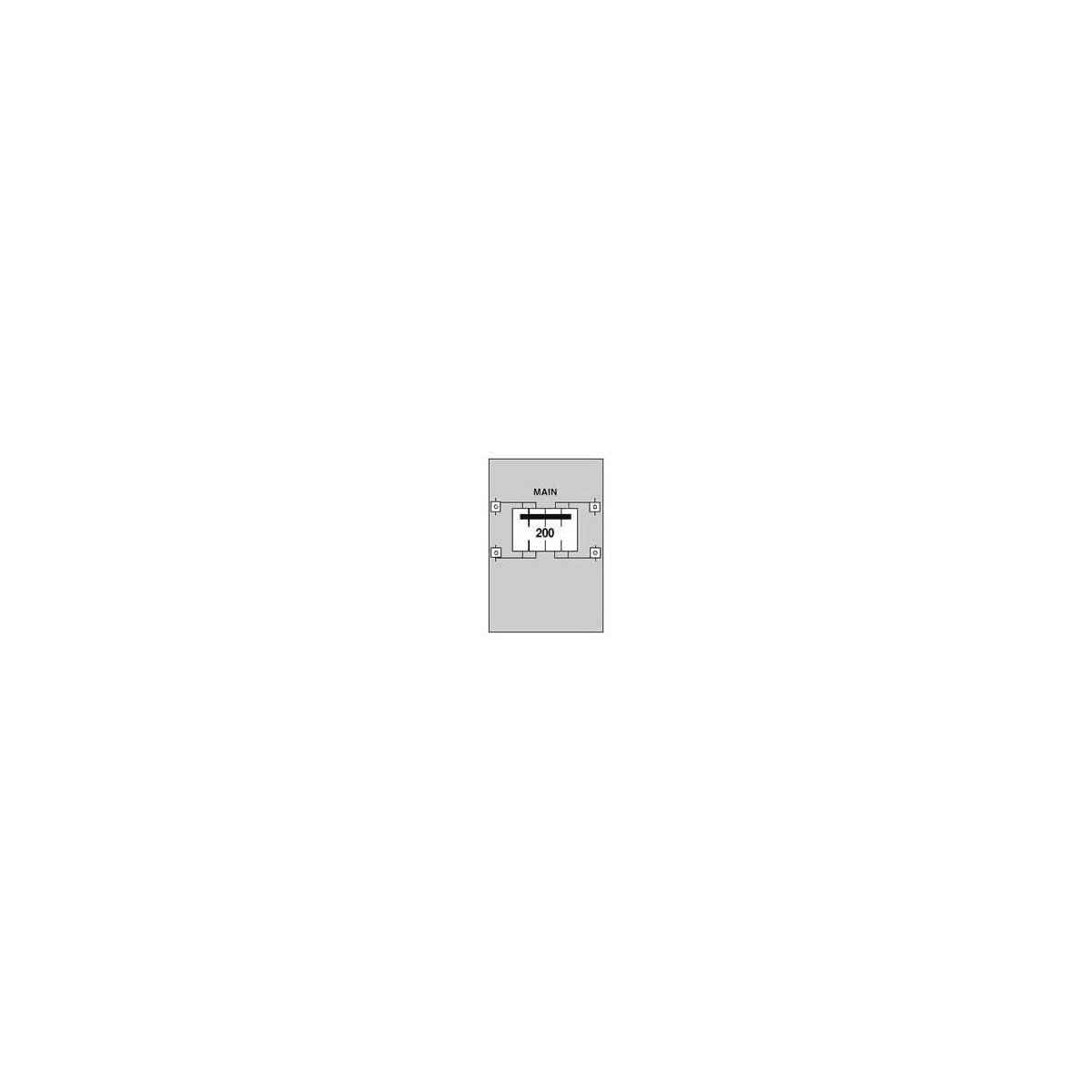

U280C1 Surface Mount Service Equipment

The U280C1 Surface Mount Service Equipment by Midwest Electric Products is designed to meet National Electric Code requirements for service entrance applications where electrical power enters a building or structure. Ideal for single-family residences and mobile homes, this surface-mounted unit offers reliable electrical distribution with a 200 amp rating. It is suitable for electrical distributors and switchgear suppliers seeking durable, factory-assembled equipment for residential and mobile home service entrances.

Specifications

• Manufacturer Part #: U280C1
• Current: 200 amperes
• Material: G90 Galvanized Steel
• Finish: Zinc
• Cable Entry: Knockout Code (A): 1-1/2, 2, 2-1/2 IN; Knockout Code (C): 1-1/4, 1-1/2, 2 IN; Knockout Code (G): 1/2, 3/4, 1 IN; Knockout Code (N): 1/2, 3/4, 1, 1-1/4, 1-1/2, 2 IN; Knockout Code (X): 1/2, 3/4, 1-1/4, 1-1/2, 2, 2-1/2 IN
• Cutout Size: 9 X 21 inches
• Number Of Cutouts: 1
• Amperage Rating: 200 AMP
• Product Weight: 18 lb
• Mounting: Surface
• Voltage: 120/240 V
• Wiring Configuration: Series, Parallel
• Certification: UL Listed
• Load Center: LCTL + LCBNS
• Feed: Overhead
• Installed Breaker: CB4200H
• Hub Provision: Yes
• Phase: Single
• Metering: Unmetered

Features

• Rated for use as service entrance equipment compliant with NEC
• NEMA 3R weatherproof enclosure
• Heavy-duty G90 galvanized steel construction for superior corrosion resistance
• Durable zinc finish resists corrosion and fading
• Factory assembled and wired to reduce installation time and labor costs
• Single cutout surface mount design
• Copper and aluminum wire compatible terminals
• Dead front construction to prevent accidental contact with live parts
• Padlock provision to prevent unauthorized access
• Broad range of concentric knockouts to accommodate varied wiring needs
• UL Listed for safety and reliability
