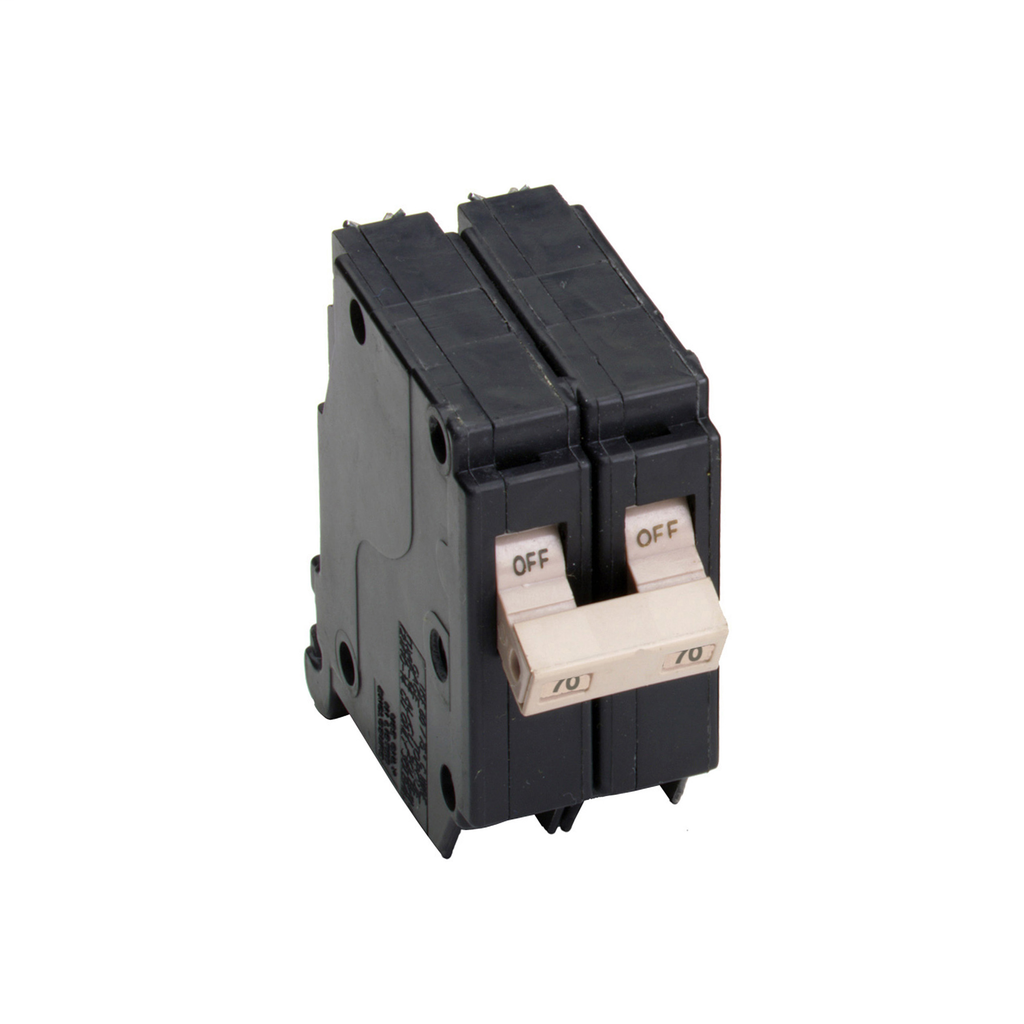

Type CH 3/4-inch Standard Circuit Breaker
SKU: #161540
Part: #CH270
UPC: 782113101897
Type CH 3/4-inch Standard Circuit Breaker
SKU: #161540
Part: #CH270
UPC: 782113101897
Description
Specifications
- Type: Type CH 3/4-inch Standard Circuit Breaker
- Amperage Rating: 70A
- Interrupt Rating: 10 kAIC
- Number Of Poles: Two-pole
- Voltage Rating: 120/240V
- Main Circuit Breaker: CH
- Trip Type: Common
- Wire Size: #14-2 AWG Cu/Al
- Used With: Type CH Loadcenters
- Notes: Two-Pole 120/240V Common Trip Requires Two 3/4-Inch Spaces
Downloads
idcplg.pdfidcplg.pdf
CH270.a
