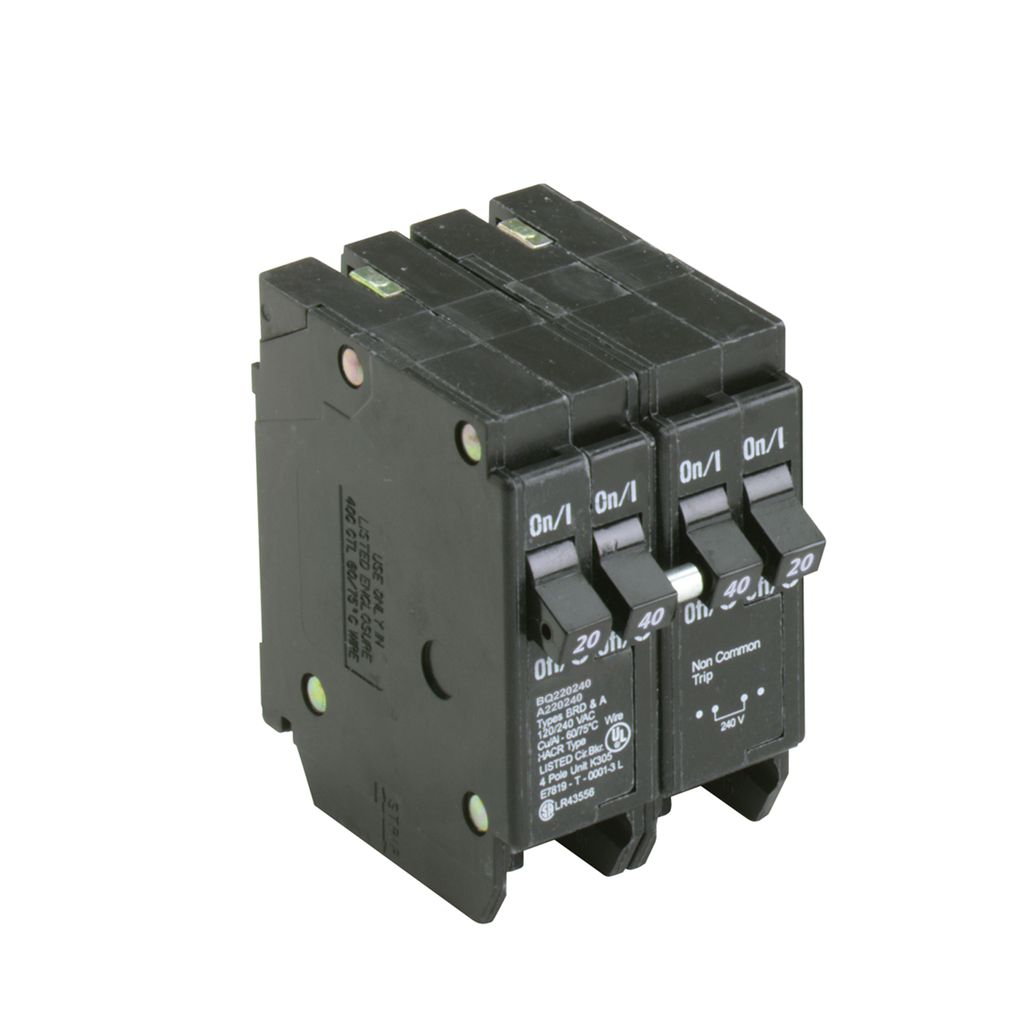

Type BQ 1-inch CTL Plug-on Breaker
SKU: #159051
Part: #BQ220240
UPC: 786676370851
Type BQ 1-inch CTL Plug-on Breaker
SKU: #159051
Part: #BQ220240
UPC: 786676370851
Description
Specifications
- Type: Type BQ Quadplex Independent Trip
- Special Features: Includes Rejection Tab feature
- Amperage Rating: (1) Two-Pole 20A, (1) Two-Pole 40A
- Interrupt Rating: 10 kAIC
- Number Of Poles: Four-pole
- Voltage Rating: 120/240V
- Mounting: Plug-on
- Main Circuit Breaker: BQ
- Trip Type: Independent
- Wire Size: #14-4 AWG Cu/Al
- Quantity: Q28
- Used With: Type BR Loadcenters
- Notes: All Type BD Duplex and BQ Quadplex circuit breakers carry listing for HACR applications. All 15 and 20 ampere single poles are switch duty rated.
Downloads
idcplg.pdfBQ220240.a
