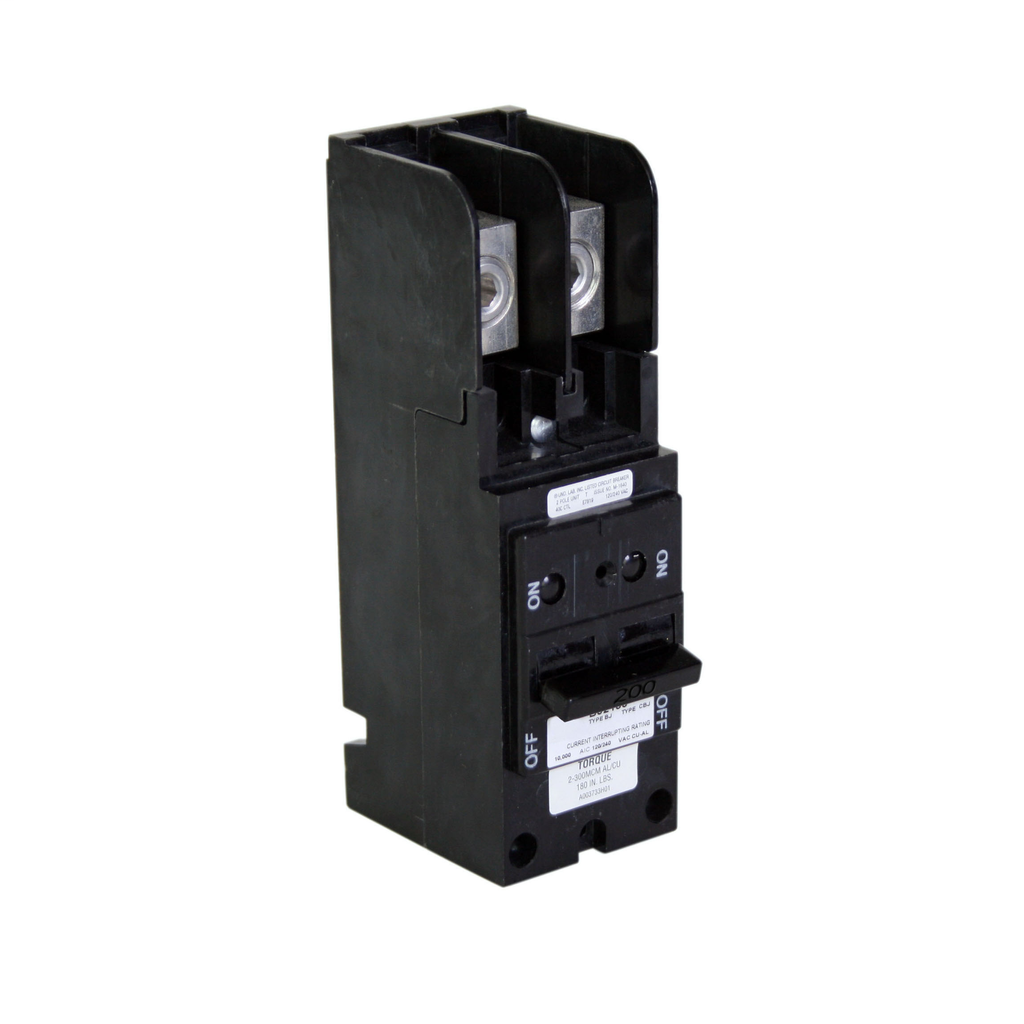

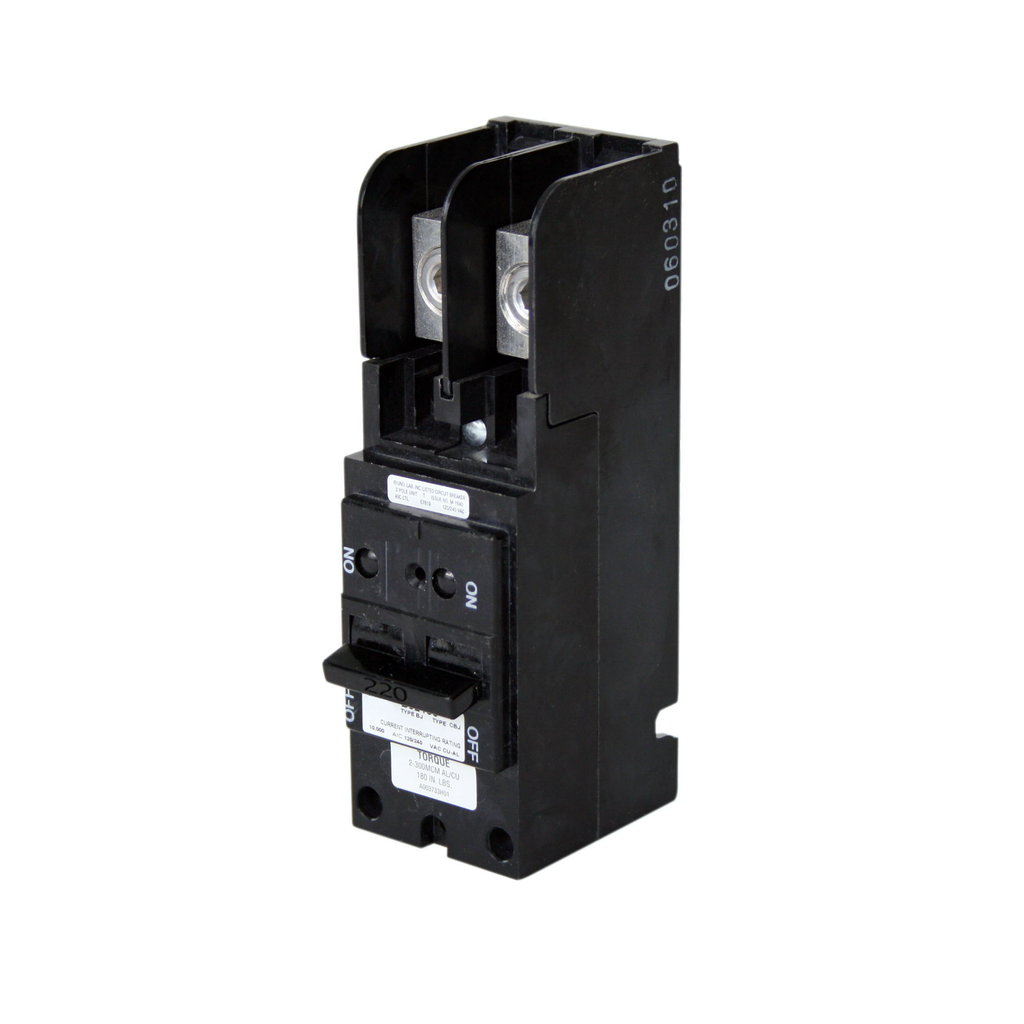

Type BJ 1-inch Plug-on Main Breakers
SKU: #158923
Part: #BJ2200
UPC: 786676367202
Type BJ 1-inch Plug-on Main Breakers
SKU: #158923
Part: #BJ2200
UPC: 786676367202
Next day delivery
Description
Specifications
- Height: 2.5 IN
- Length: 6.5 IN
- Width: 3.5 IN
- Weight: 1.8 LB
- Amperage Rating: 200A
- Interrupt Rating: 10 kAIC
- Number Of Poles: Two-pole
- Voltage Rating: 120/240V
- Mounting: Plug-on
- Main Circuit Breaker: BJ
- Trip Type: Common
- Wire Size: #2 AWG-300 kcmil Cu/Al
- Notes: Requires at least a 150 A Loadcenter, Breaker uses two 1-Inch (25.4mm) pole spaces and two 1-Inch (25.4mm) pole spaces on right side of loadcenter.
