Description

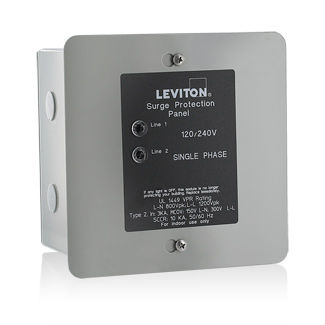

Type 2 Single Phase Surge Panel with 4-Mode Protection
The Leviton Type 2 Single Phase Surge Panel is a panel mount surge protective device designed for residential and small commercial electrical distribution systems. It provides 4-mode surge protection with a maximum surge current rating of 50kA, suitable for 120/240V single-phase applications. This device is ideal for electrical distributors and switchgear suppliers seeking reliable surge suppression solutions to protect branch panels and connected equipment from high voltage transients.
Specifications
- Voltage: 120/240V Single Phase
- Surge Current Rating: 50kA Maximum
- Frequency: 50 hertz
- Enclosure Type: NEMA 1 Metal Enclosure
- Operating Temperature: -10 degrees Celsius
- Flammability Class: Rated V-2 Per UL 94
- UL Listing: UL 1449 4th Edition Type 2
- Product Weight: 4.32 lbs
- Country of Origin: Mexico
- Manufacturer Part Number: 51120-1
Features
- 4-mode surge protection for comprehensive transient voltage suppression
- Solid-state semiconductor SPD circuitry with independent fusing for each phase
- Green LED diagnostic indicator for each phase to monitor device status
- Pre-punched standard knockouts for simplified installation
- Interior plastic circuit enclosure for enhanced safety
- Flush mounting design suitable for branch circuit breaker panels
- Designed for use with copper or copper-clad wire only
- Complies with IEEE C62.41-1991 category A&B combination wave suppression
