TWRSGF20W, GFCI Duplex Receptacle
SKU: #172226
Part: #TWRSGF20W
UPC: 032664743030
TWRSGF20W, GFCI Duplex Receptacle
SKU: #172226
Part: #TWRSGF20W
UPC: 032664743030
Next day delivery
Description

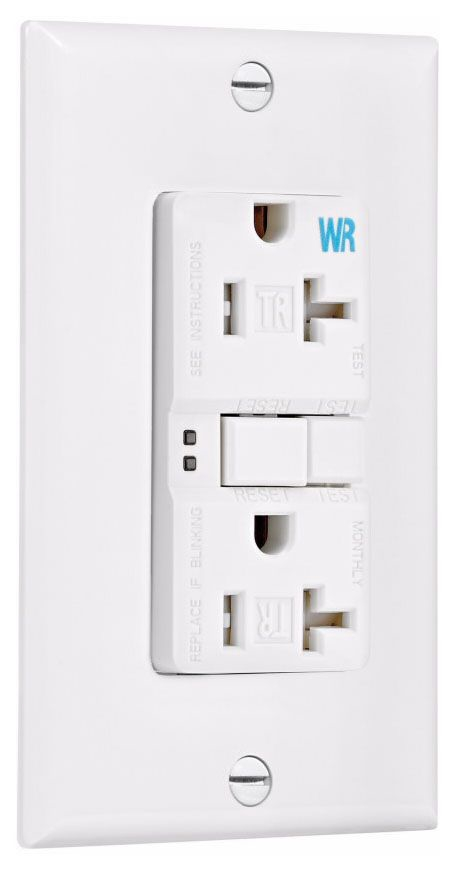

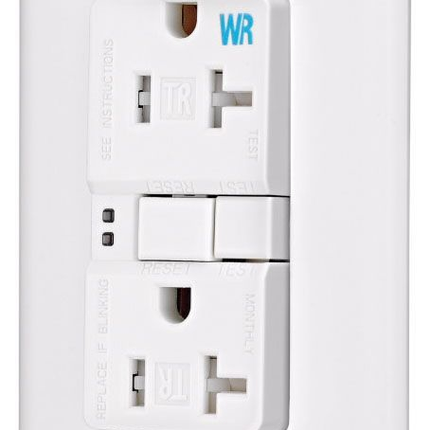

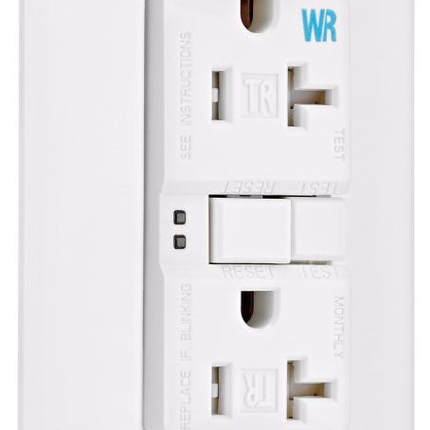

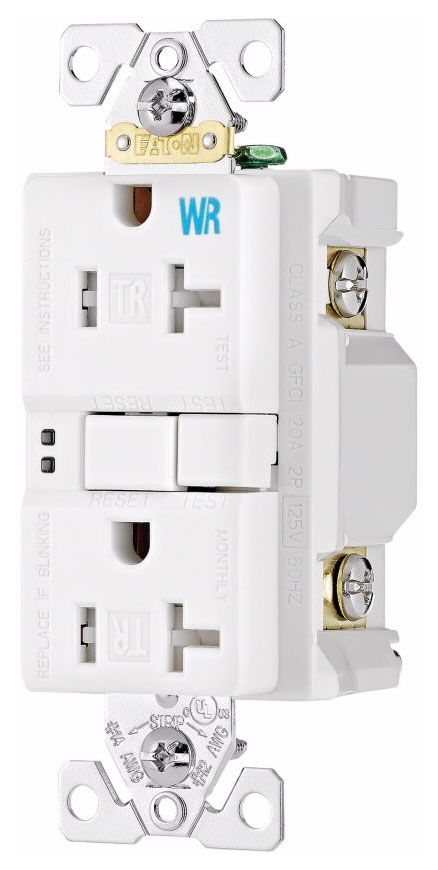

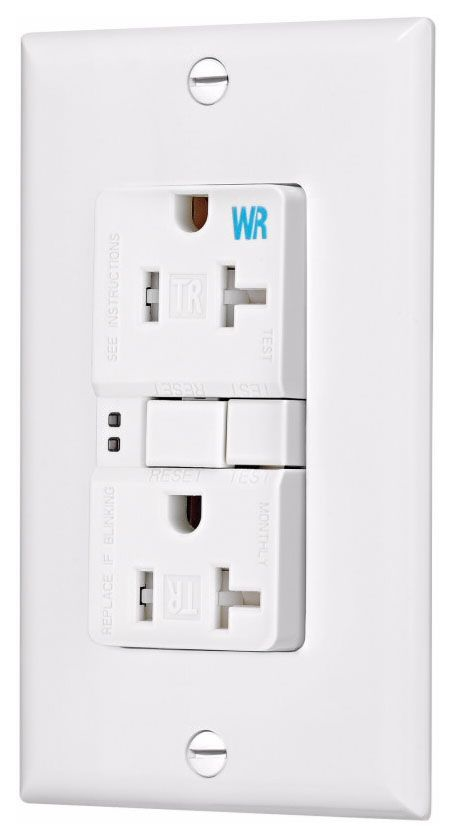

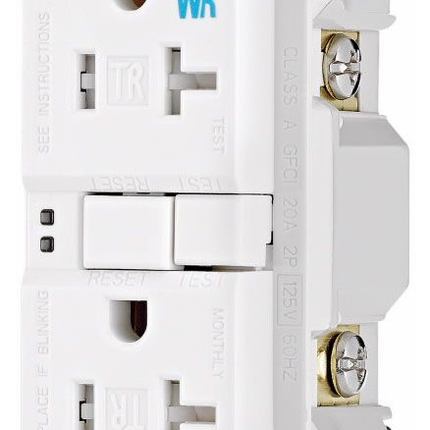

TWRSGF20W, GFCI Duplex Receptacle – Tamper & Weather Resistant Ground Fault Circuit Interrupter
The TWRSGF20W is a tamper and weather resistant Ground Fault Circuit Interrupter (GFCI) duplex receptacle designed to provide reliable electrical shock protection in residential, commercial, and industrial applications. Manufactured by Cooper Wiring Devices, this device is suitable for use in damp or wet locations and complies with UL943 and UL498 standards. It offers dependable protection by detecting ground faults and interrupting the flow of electricity to prevent electrical shock hazards. This receptacle is ideal for electrical distributors and lighting solutions providers seeking advanced wire and cable safety devices and switchgear components.
Specifications
- Amperage Rating: 20 amperes
- Voltage Rating: 125V
- Wiring Method: Back wire and side wire
- Circuit Interrupter Type: GFCI
- Color: White
- Material: Nylon (top housing), PVC (bottom housing)
- Contact Material: Brass
- Device Type: Receptacle
- NEMA Configuration: 5-20R
- Receptacle Type: Two-pole, three-wire grounding
- Dimensions: Height 4.614 in, Length 2.025 in, Width 2.877 in
- Product Weight: 0.4 lb
- Number of Poles: 2
- Number of Wires: 3
- Grade: Specification
Features
- Tamper resistant with built-in UL listed safety shutter system to prevent insertion of foreign objects
- Weather resistant with corrosion-resistant hardware and UV resistant materials for outdoor and damp locations
- Automatic self-testing function ensures continuous GFCI protection and trips device if a fault is detected
- Prevents resetting if the device is no longer functional after tripping
- Horizontal test and reset buttons provide larger unobstructed area for ease of use
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosures
- Line-load miswiring protection prevents power downstream if wired incorrectly
- Back wire clamp and side wire terminals for fast, secure installation
- Meets and exceeds 10 kA short circuit testing and UL943 safety standards
- Compatible with #14 - #10 AWG wire sizes
