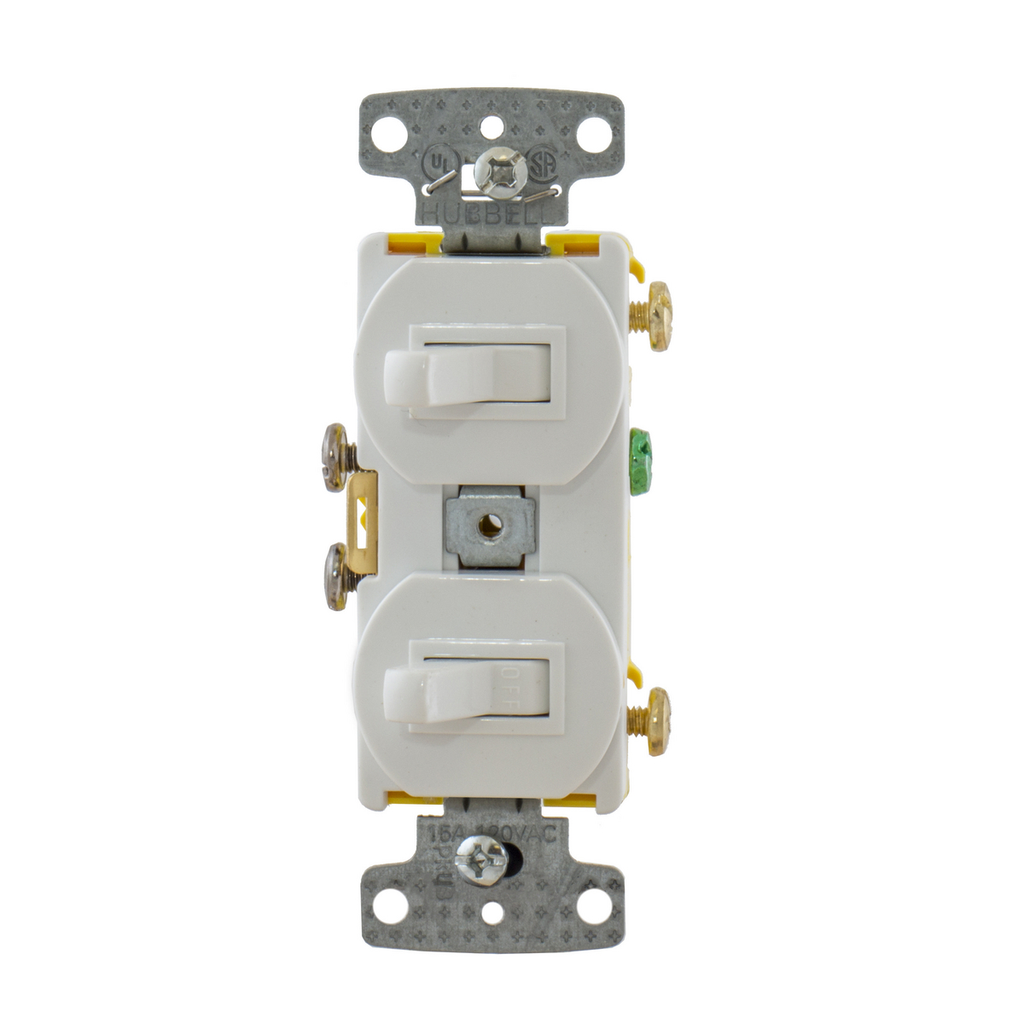

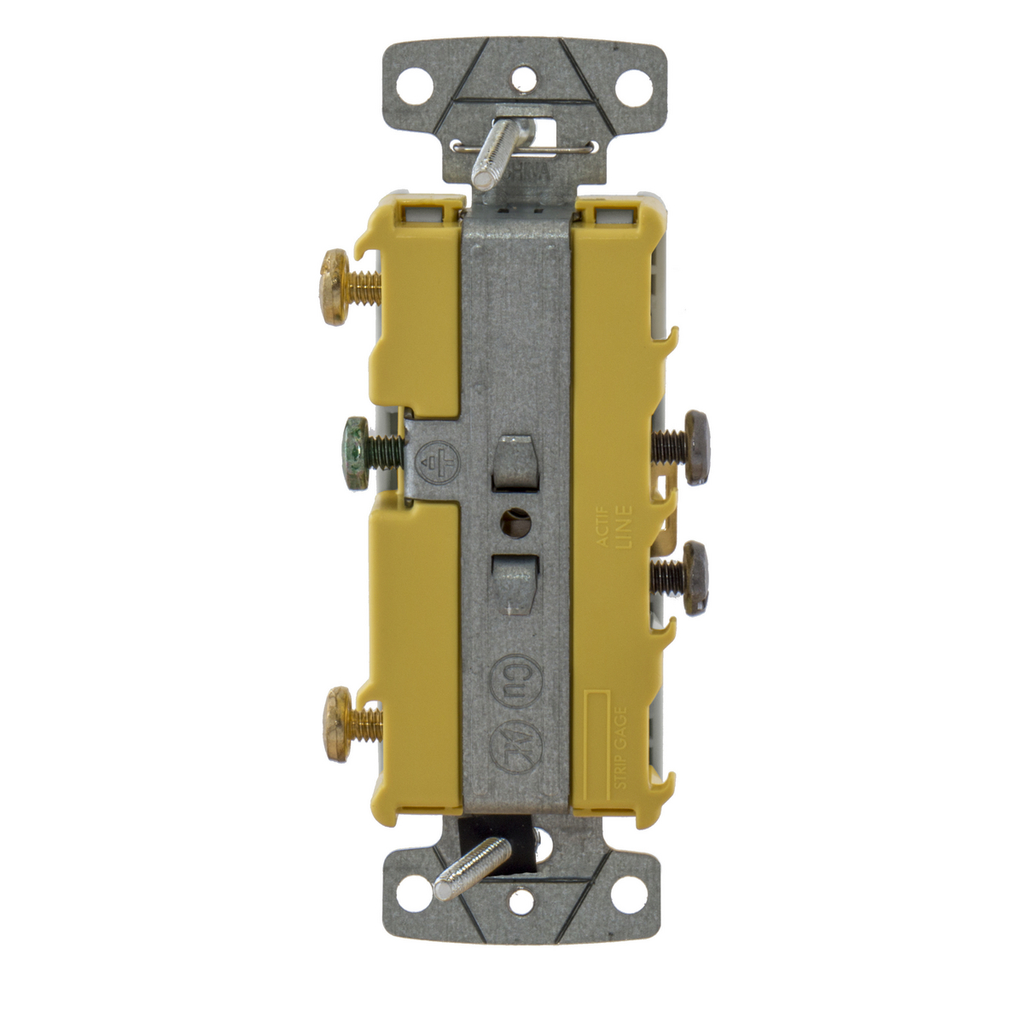

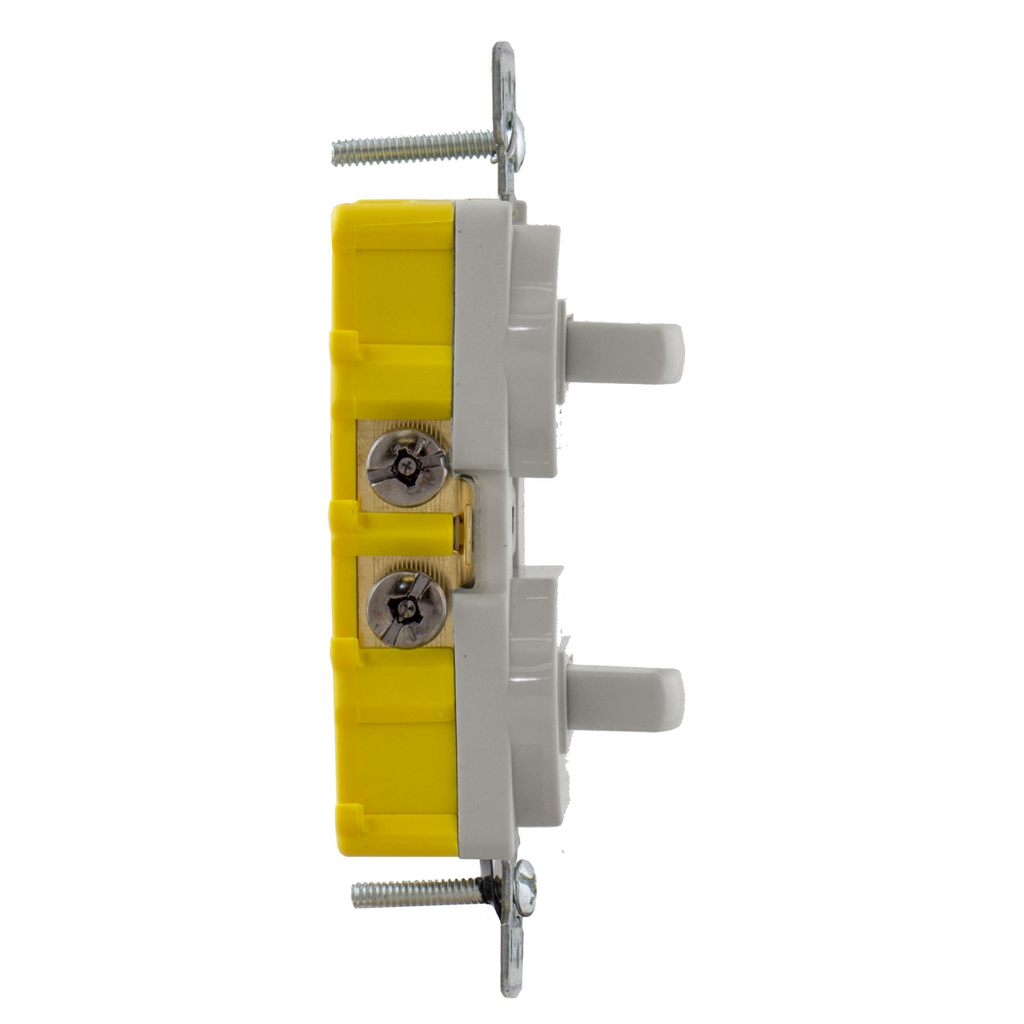

Two Single-Pole Toggle Combination Device 15A – Residential Electrical Switch

This Two Single-Pole Toggle Combination Device is designed for residential electrical applications, providing reliable control for lighting and other electrical circuits. Manufactured by Bryant, it is a 15 amp, 120V AC rated switch featuring a quiet snap action toggle actuator. The device is side wired with terminal screws and includes self-grounding capability for enhanced safety. Ideal for indoor dry environments, it is suitable for use by electrical distributors and switchgear suppliers seeking dependable wiring and lighting solutions.

Specifications

• Application: Residential
• Amperage Rating: 15 A
• Voltage Rating: 120 VAC
• Current Rating: 15 amperes
• Contact Rating: 15A
• Number of Poles: 2 Single Pole
• Contact Configuration: Two Position
• Connectivity: Side Wired (Terminal Screws)
• Mounting: Mounting Screws
• Operating Cycles: 30,000 Minimum
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Color: White
• Width: 1.710 in
• Product Weight: 0.5960 lb
• Manufacturer: Bryant
• Country of Origin: China
• Manufacturer Part #: RC101W

Features

• Quiet snap action mechanism
• Self-grounding staple is standard
• Elongated strap with continuous plaster ears for secure mounting
• Toggle actuator for easy operation
• Side wired connection with terminal screws for reliable electrical contact
