Two Screw Strap Type MC Connector 3", Die Cast Zinc Round
SKU: #329465
Part: #688-DC2
UPC: 781747156884
Two Screw Strap Type MC Connector 3", Die Cast Zinc Round
SKU: #329465
Part: #688-DC2
UPC: 781747156884
Description

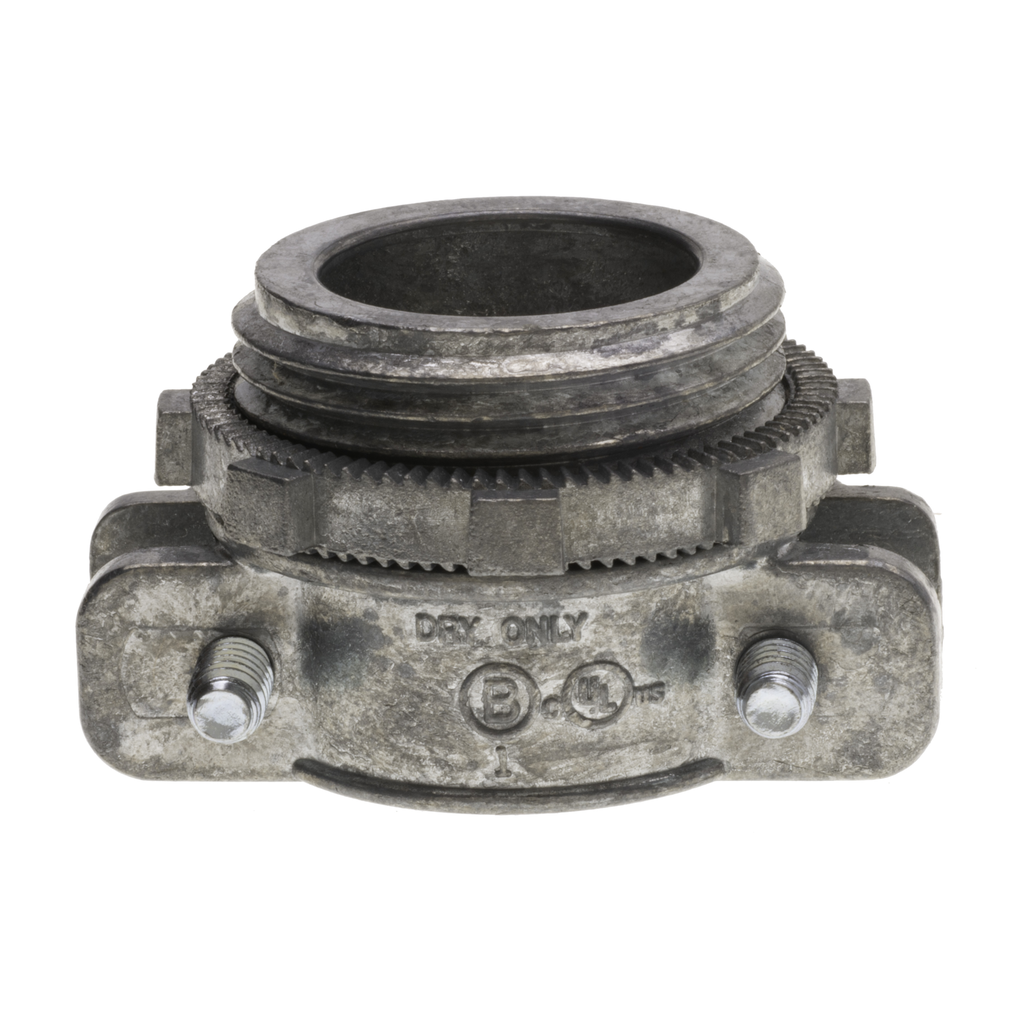

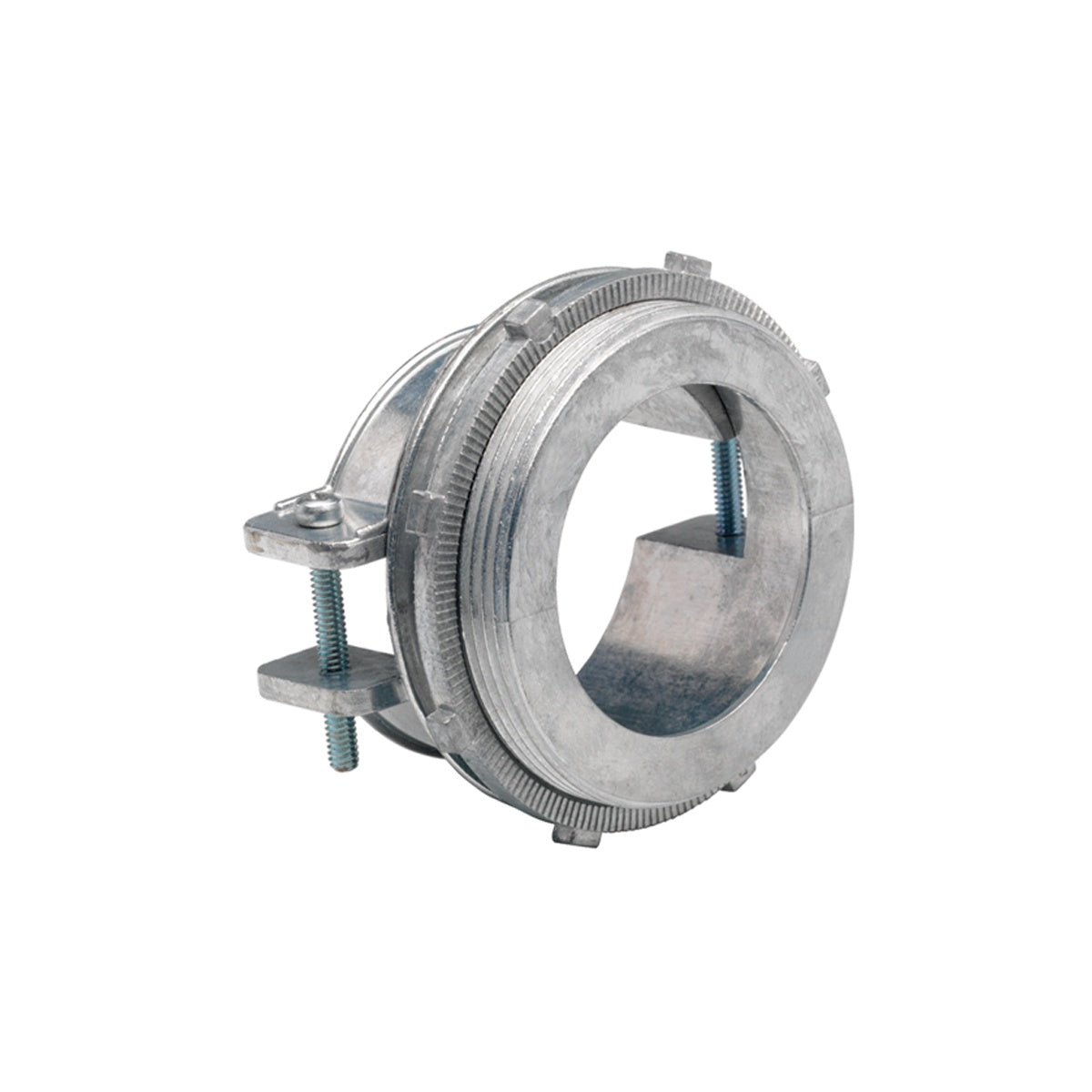

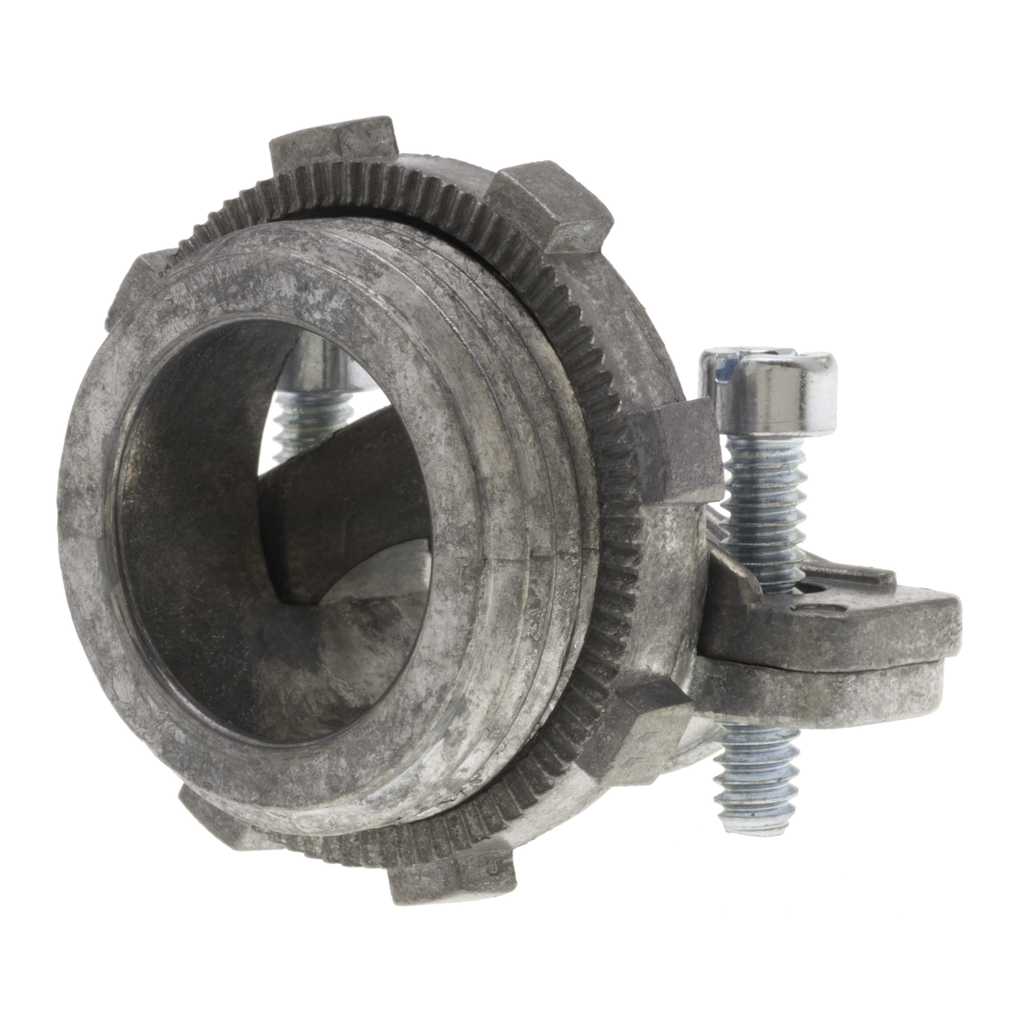

Two Screw Strap Type MC Connector 3" – Metal Clad Cable Connector
The Bridgeport Fittings Two Screw Strap Type MC Connector 3" is designed to securely connect interlocked metal clad (MC) cable to electrical boxes or enclosures. This die cast zinc connector provides a precise fit and excellent corrosion resistance, suitable for harsh environments. It fits MC cable sizes ranging from 4-500 MCM to 4-750 MCM with diameters between 2.375 and 3 inches and installs into a 3" knockout. The two-screw strap design ensures a reliable and secure connection, making it an ideal component for electrical distributors, lighting solutions, wire and cable installations, and switchgear suppliers requiring durable MC cable fittings.
Specifications
- Manufacturer: Bridgeport Fittings
- Manufacturer Part #: 688-DC2
- Material: Zinc Die Cast
- Finish: Ball burnish
- Conductor Range: 4-500 MCM to 4-750 MCM
- Number of Conductors: 1 Cable
- Dimensions: Length 4.25 in, Width 3.75 in, Depth 1.25 in
- Application: Recommended for steel or aluminum interlocked Metal Clad cable, 4-500 MCM to 4-750 MCM, diameter 2.375 - 3 inches
- Product Weight: 1.3 lbs
- Country of Origin: United States
- Made in USA: Yes
Features
- Two screw strap design for secure cable connection
- Die cast zinc construction for corrosion resistance and durability
- Precise fit and finish for trouble-free installation
- Compatible with 3" knockout installations
- Suitable for use with steel or aluminum interlocked MC cable
