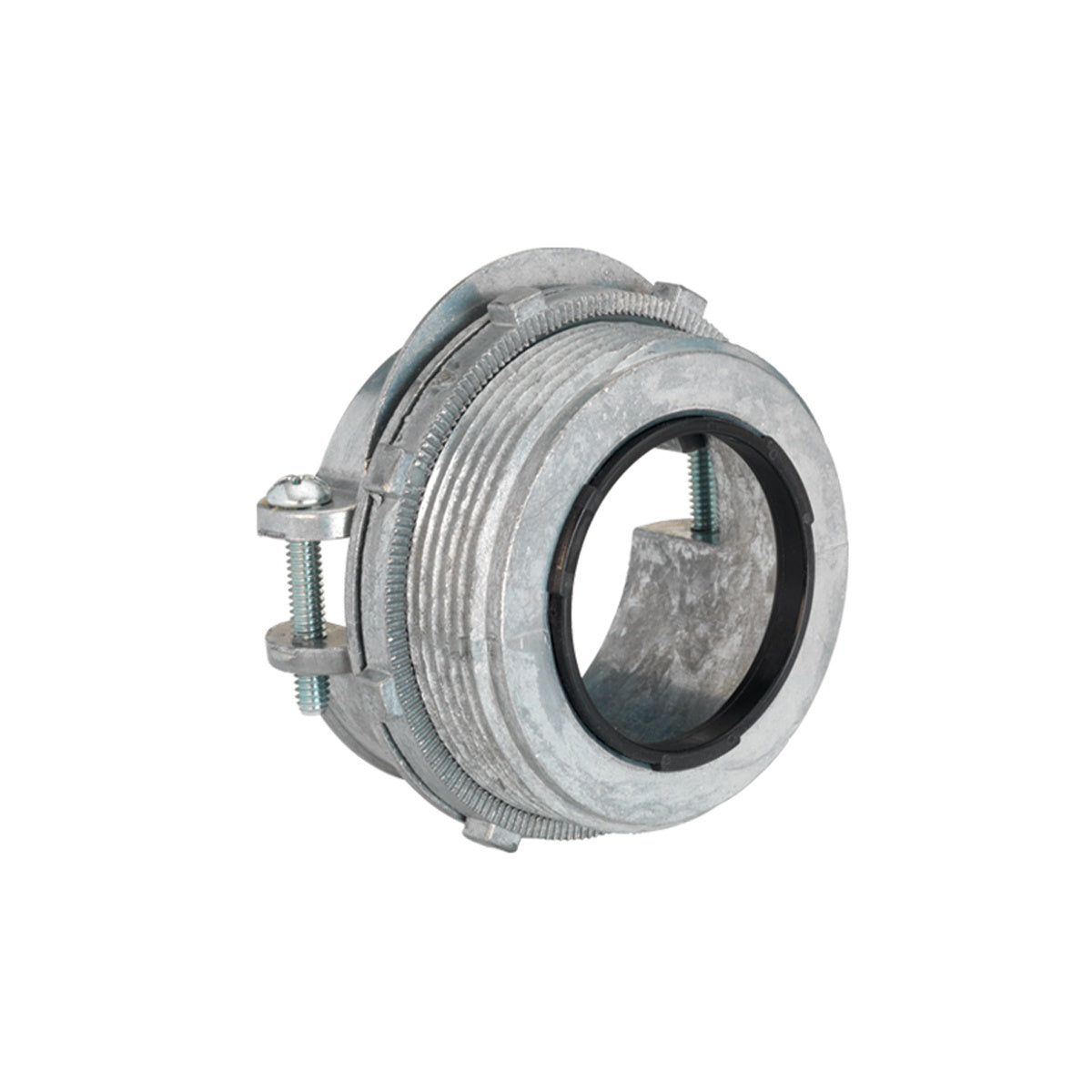

Two Screw Strap Type MC Connector 1" – Metal Clad Cable Connector

The Bridgeport Fittings Two Screw Strap Type MC Connector 1" is designed for secure connection of steel or aluminum interlocked Metal Clad (MC) cable to electrical boxes or enclosures. This die cast zinc connector features an insulated throat rated for 105°C, providing protection against cable abrasion and ensuring reliable performance in lighting solutions, wire and cable management, and switchgear applications. It is suitable for MC cable sizes ranging from .750" to 1.04" (6/4 to 4/3), making it an essential component for electrical distributors and contractors requiring durable and corrosion-resistant fittings.

Specifications

• Manufacturer: Bridgeport Fittings
• Manufacturer Part Number: 683-DCI2
• Material: Zinc Die Cast
• Finish: Ball burnished, mirror smooth
• Trade Size: 1 inch knockout
• Compatible Cable Range: .750" to 1.04" (6/4 to 4/3) interlocked MC cable
• Temperature Rating: Insulated throat rated for 105°C
• Number of Conductors: 1 Cable
• Dimensions: Length 2 in, Width 1.25 in, Height 1.25 in, Depth 0.625 in
• Weight: 0.16 lbs
• UL File Number: E202876
• UL Standard: UL-514B
• Country of Origin: United States (Made in USA)
• Standard Package Quantity: 100 units

Features

• Two screw strap design ensures a secure and reliable connection
• Insulated throat protects cable from abrasion and damage
• Die cast zinc construction offers excellent corrosion resistance
• Precise fit for trouble-free installation and performance
• Suitable for use with both steel and aluminum interlocked MC cable
• Ball burnished finish provides a smooth, durable surface
• Complies with UL standards for safety and quality assurance
• Ideal for electrical distributors supplying lighting solutions, wire and cable, and switchgear components

Downloads and Links

• Download Photo
• Download Drawing
