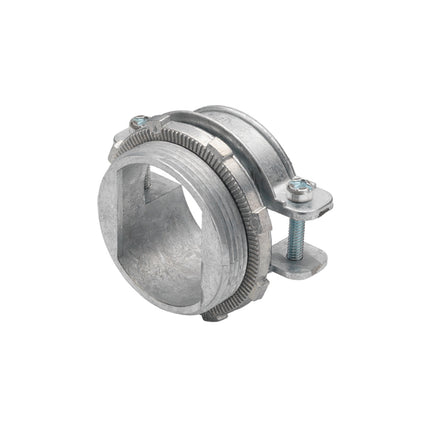

Two Screw Strap Type MC Connector 1-1/4", Zinc Rectangular Throat
SKU: #329411
Part: #684-DCX2
UPC: 781747256843
Two Screw Strap Type MC Connector 1-1/4", Zinc Rectangular Throat
SKU: #329411
Part: #684-DCX2
UPC: 781747256843
Description
Two Screw Strap Type MC Connector 1-1/4", Zinc Rectangular Throat

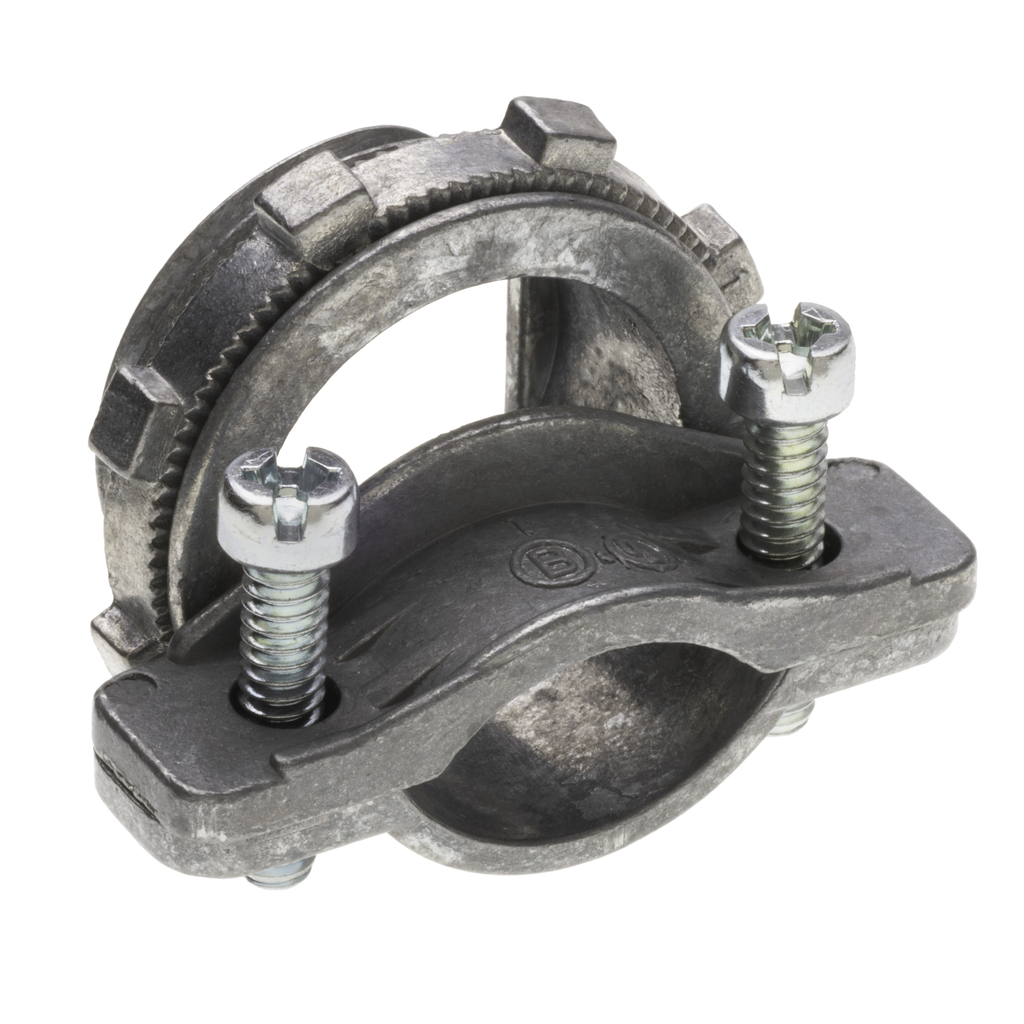

The Bridgeport Fittings 684-DCX2 Two Screw Strap Type MC Connector is designed for securely joining steel or aluminum interlocked Metal Clad (MC) cable to electrical boxes or enclosures. It is suitable for use with MC cables ranging from 1.1" to 1.25" (4/4 to 3/4) conductor sizes. This connector features a die cast zinc construction with a ball burnished finish, providing corrosion resistance and durability for demanding electrical distributor and lighting solutions applications.
Specifications
- Manufacturer: Bridgeport Fittings
- Manufacturer Part #: 684-DCX2
- Material: Zinc Die Cast
- Finish: Ball burnished, mirror smooth
- Trade Size: 1-1/4"
- Conductor Range: 1.1" to 1.25" (4/4 to 3/4)
- Number of Conductors: 1 Cable
- Dimensions: Length 2.375 in, Width 1.75 in, Depth 0.687 in
- Order Minimum Quantity: 1
- Product Weight: 0.2650 lbs
- Country of Origin: United States
- UL File Number: E202876
- UL Standard: UL-514B
- Federal Specification Number: A-A-50552
Features
- Rectangular throat design provides a positive end stop for the inserted cable jacket
- Two screw strap type connector ensures a secure and reliable connection
- Die cast zinc construction offers excellent corrosion resistance in harsh environments
- Fits into a 1-1/4" knockout for easy installation
- Compatible with steel or aluminum interlocked MC cable
- Ball burnished finish enhances durability and appearance
- Made in the USA
