Two Screw Strap Type MC Connector 1-1/2", Die Cast Zinc Insulated - MC Cable Connector

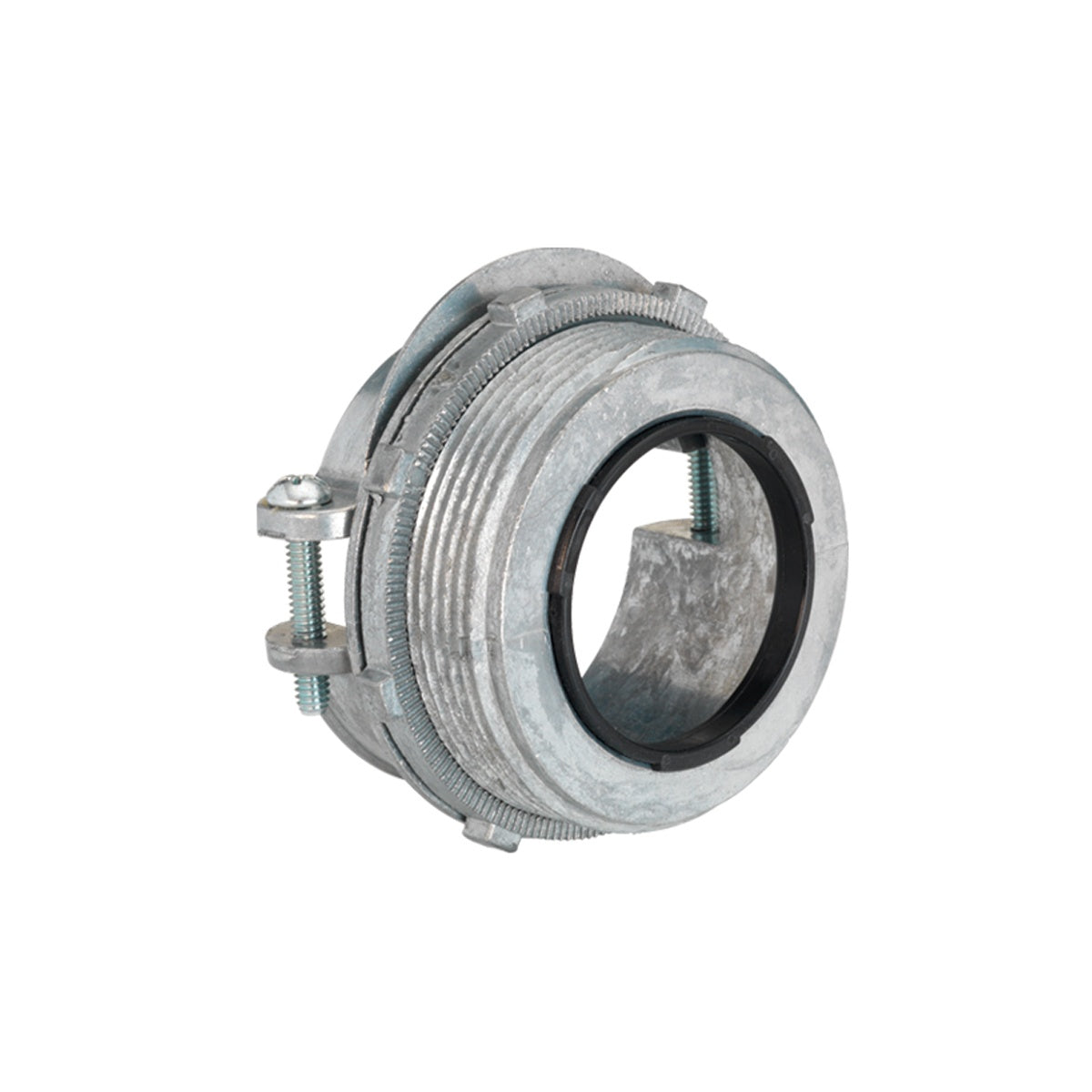

The Bridgeport Fittings 685-DCI2 is a two screw strap type insulated connector designed for secure connections between armored and interlocked metal clad (MC) cable and electrical boxes or enclosures. It is engineered for use with MC cable sizes ranging from 2/4 to 3-2/0 with diameters between 1.25 and 1.5 inches. This connector features a die cast zinc construction with a ball burnished finish for corrosion resistance and durability in demanding electrical distributor and switchgear supplier applications. The insulated throat protects the cable from abrasion and is rated for temperatures up to 105°C, making it suitable for a wide range of lighting solutions and wire and cable installations.

Specifications

• Manufacturer Part #: 685-DCI2
• Material: Die Cast Zinc
• Finish: Ball Burnished
• Trade Size: 1-1/2"
• Conductor Range: 2/4 to 3-2/0
• Number of Conductors: 1 Cable
• Dimensions (L x W x D): 2.88 in x 2.25 in x 0.71 in
• Insulated Throat Temperature Rating: 105°C
• Weight: 0.4080 lbs
• Country of Origin: United States
• UL File Number: E202876
• UL Standard: UL-514B
• Federal Specification Number: A-A-50552
• NEMA Standard: FB-1

Features

• Two screw strap design ensures a secure and reliable connection to the box or enclosure.
• Die cast zinc construction provides corrosion resistance and durability for harsh environments.
• Insulated throat protects cable from abrasion and supports high-temperature applications.
• Fits into a 1-1/2" knockout for easy installation.
• Compatible with armored and interlocked metal clad cables, enhancing versatility for electrical distributors and lighting solution providers.
• Made in the USA, ensuring consistent quality and compliance with industry standards.
