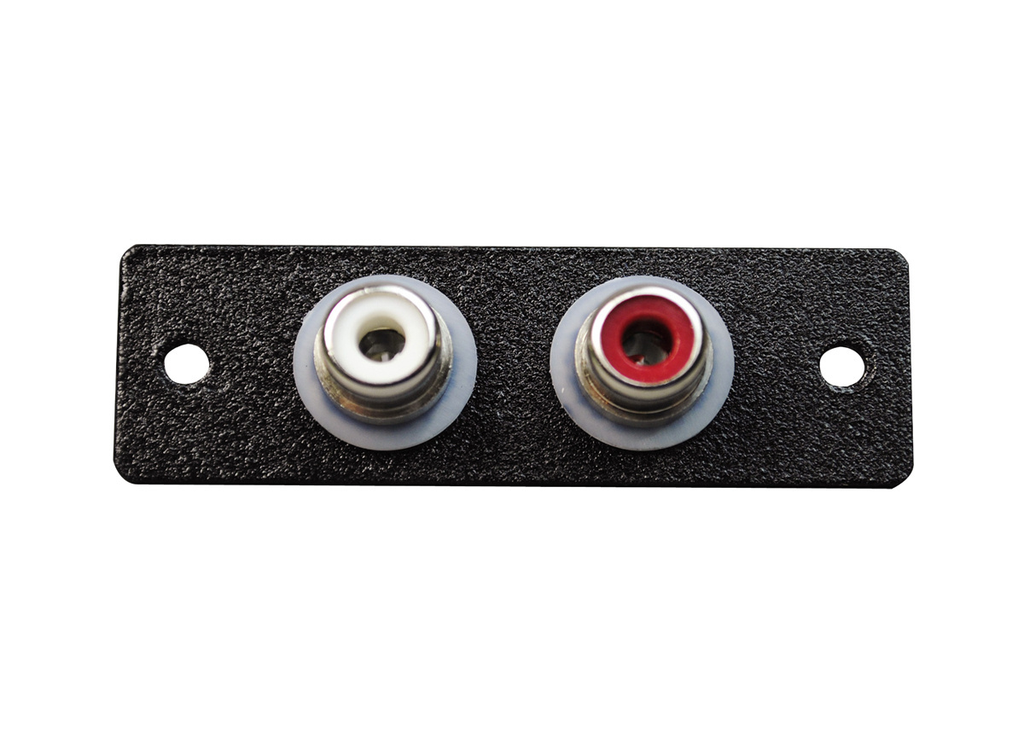

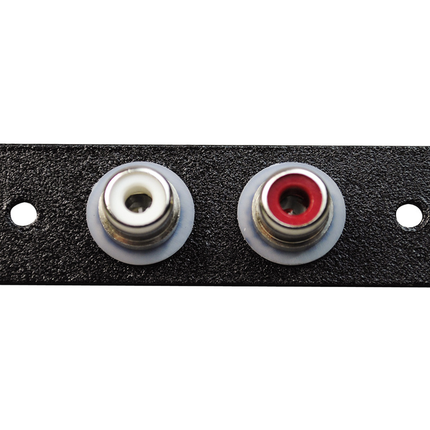

Two RCA Female to Solder Cups
SKU: #277172
Part: #AV6001BK
UPC: 786776177749
Two RCA Female to Solder Cups
SKU: #277172
Part: #AV6001BK
UPC: 786776177749
Description
Two RCA Female to Solder Cups - Wiremold Audio/Video Interface Plate
Wiremold Two RCA Female to Solder Cups device plate (model AV6001BK) is designed for audio/video connectivity in Wiremold A/V compatible pathways. This plate provides secure RCA phone jack connections with solder cup terminals, suitable for meeting rooms, collaboration spaces, or work areas. It is ideal for electrical distributors and lighting solutions providers requiring reliable wire and cable interface components or switchgear suppliers integrating A/V connectivity.
Specifications
- Manufacturer: Wiremold
- Manufacturer Part #: AV6001BK
- Dimensions: 2.2 in (Length) x 0.7 in (Width) x 0.9 in (Depth)
- Weight: 0.07 lbs
- Country of Origin: Mexico
- Connector Type: Two RCA Female to Solder Cups
- Insulator Color: Red and White (Delrin)
- Contact Material: Nickel plate over bronze (nut and center pin)
- Product UPC: 786776177749
Features
- Metal device plate with screwed-down connectors for secure, stable connections
- Compatible with Wiremold A/V pathways for seamless integration
- Designed for audio/video applications in professional environments
- Solder cup terminals allow for reliable wire attachment
