Two Hole - Short Barrel Compression Lugs, 500 MCM Wire, 1/2" Bolt Size, Brown Color Code
SKU: #173181
Part: #2932
UPC: 751338818279
Two Hole - Short Barrel Compression Lugs, 500 MCM Wire, 1/2" Bolt Size, Brown Color Code
SKU: #173181
Part: #2932
UPC: 751338818279
Next day delivery
Description

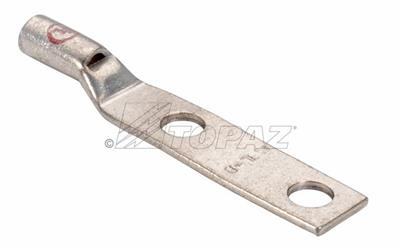

Two Hole - Short Barrel Compression Lugs, 500 MCM Wire, 1/2" Bolt Size, Brown Color Code
Topaz Two Hole Short Barrel Compression Lugs are designed for heavy-duty electrical applications, providing reliable connections for wire sizes up to 750 MCM. Manufactured from high conductivity copper tubing and tin plated for corrosion resistance, these lugs are suitable for grounding and direct burial applications. They are UL listed and color coded for easy identification, making them ideal for electrical distributors and lighting solutions requiring secure wire and cable terminations.
Specifications
- Wire Size: 500 MCM
- Bolt Size: 1/2"
- Color Code: Brown
- Material: Copper
- Finish: Tin Plated
- Product Weight: 0.5 lbs
- UL Listing: Yes, rated for 35 KV maximum
- Dimensions (inches): A - 4.88, B - 1.52, C (Hole Spacing) - 1.75
Features
- Fabricated from high conductivity copper tubing for optimal electrical performance
- Tin plated surface for enhanced corrosion resistance
- Color coded for quick wire size identification
- Withstands high mechanical stress, suitable for direct burial in earth or concrete
- UL listed for safety and reliability in grounding applications
