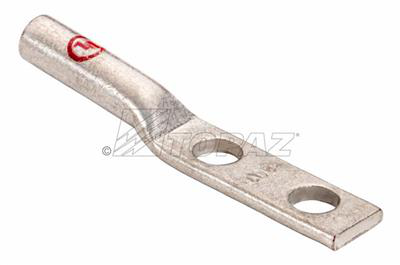

Two Hole - Long Barrel Compression Lugs, 250 MCM Wire, 1/2" Bolt Size, Yellow Color Code
SKU: #173757
Part: #3209A
UPC: 751338816428
Two Hole - Long Barrel Compression Lugs, 250 MCM Wire, 1/2" Bolt Size, Yellow Color Code
SKU: #173757
Part: #3209A
UPC: 751338816428
Description
Two Hole - Long Barrel Compression Lugs, 250 MCM Wire, 1/2" Bolt Size, Yellow Color Code
Topaz Two Hole Long Barrel Compression Lugs are designed for reliable electrical connections in grounding and wire applications. Manufactured from high conductivity copper tubing and tin plated for corrosion resistance, these lugs are suitable for heavy-duty use, including direct burial in earth or concrete. Ideal for electrical distributors and switchgear suppliers requiring durable wire and cable termination solutions, these UL-listed lugs support wire sizes from 8 to 750 MCM.
Specifications
- Material: Copper
- Color: Yellow
- Cable Size: 250 MCM
- Number of Holes: 2
- Bolt Size: 1/2"
- Amperage Rating: 486 AMP
- Product Weight: 0.2420 lbs
- Manufacturer: Southwire
- Manufacturer Part #: 3209A
Features
- Fabricated from high conductivity copper tubing for optimal electrical performance
- Tin plated for enhanced corrosion resistance
- Color coded for easy identification
- Withstands high mechanical stress, suitable for grounding applications
- UL listed for safety and reliability
