Twist-On Connector for RG-59 (Bag of 100)
SKU: #13462
Part: #40985-TW9
UPC: 078477847282
Twist-On Connector for RG-59 (Bag of 100)
SKU: #13462
Part: #40985-TW9
UPC: 078477847282
Description

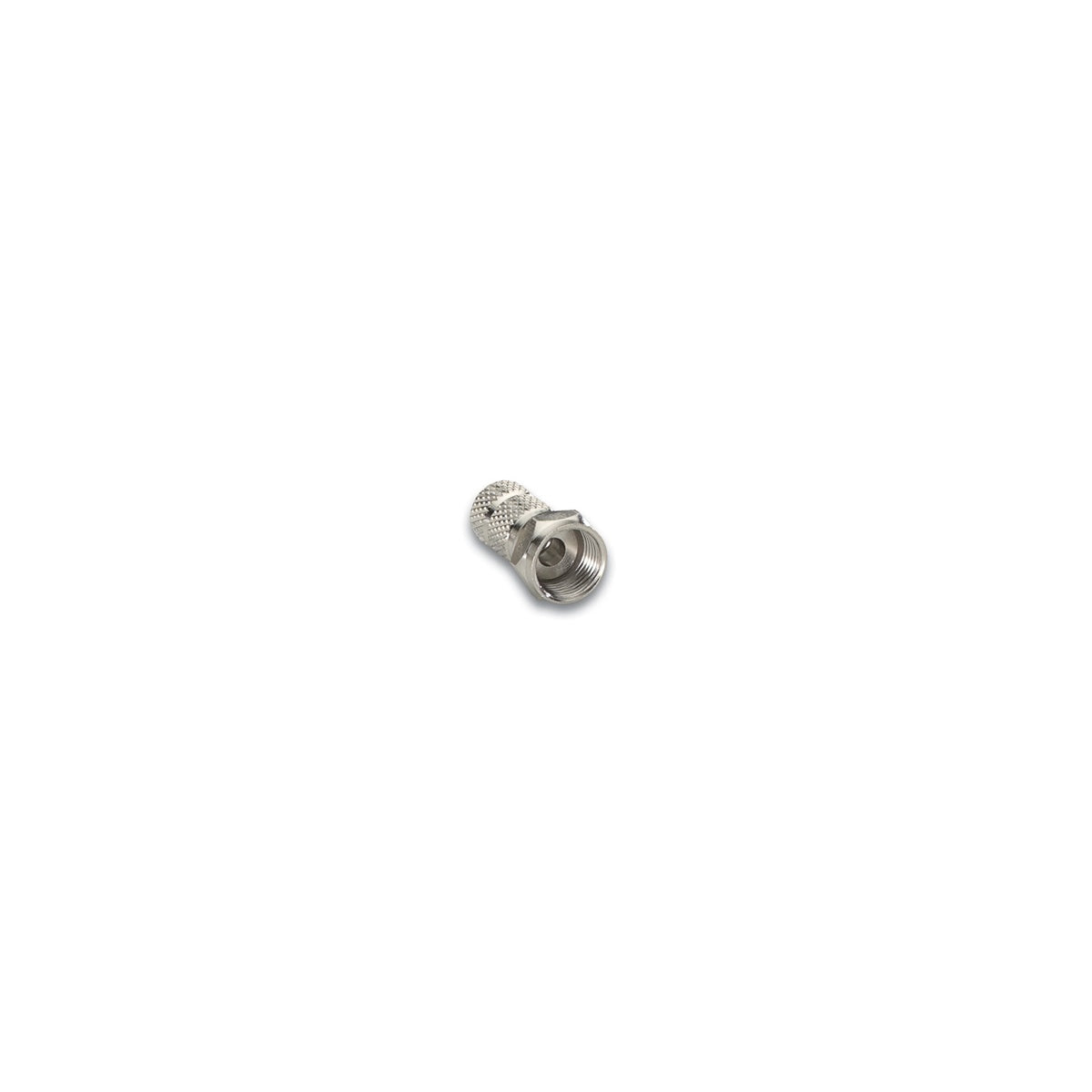

Twist-On Connector for RG-59 by Leviton – Coaxial Cable Connector
The Leviton Twist-On Connector is designed for fast and reliable termination of RG-59 or RG-6 coaxial cables, commonly used in video applications. This male F-connector is compatible with all F-type female connections, providing a secure and permanent connection through its threaded twist-on sleeve. It is an essential component for electrical distributors and lighting solutions providers dealing with wire and cable installations.
Specifications
- Impedance: 75 Ohm nominal
- Frequency Range: 0-4 GHz
- Material: Nickel-plated brass
- Dimensions: 0.80" length x 0.51" hex nut width
- Country of Origin: China
- Manufacturer Part Number: 40985-TW9
- Product Weight: 0.0010 lbs
Features
- Nickel plating for improved electrical contact and corrosion resistance
- Threaded twist-on sleeve secures shield and cable jacket for permanent connection
- Includes 7/16-inch hex nut for tightening
- Compatible with RG-59 and RG-6 coaxial cables
