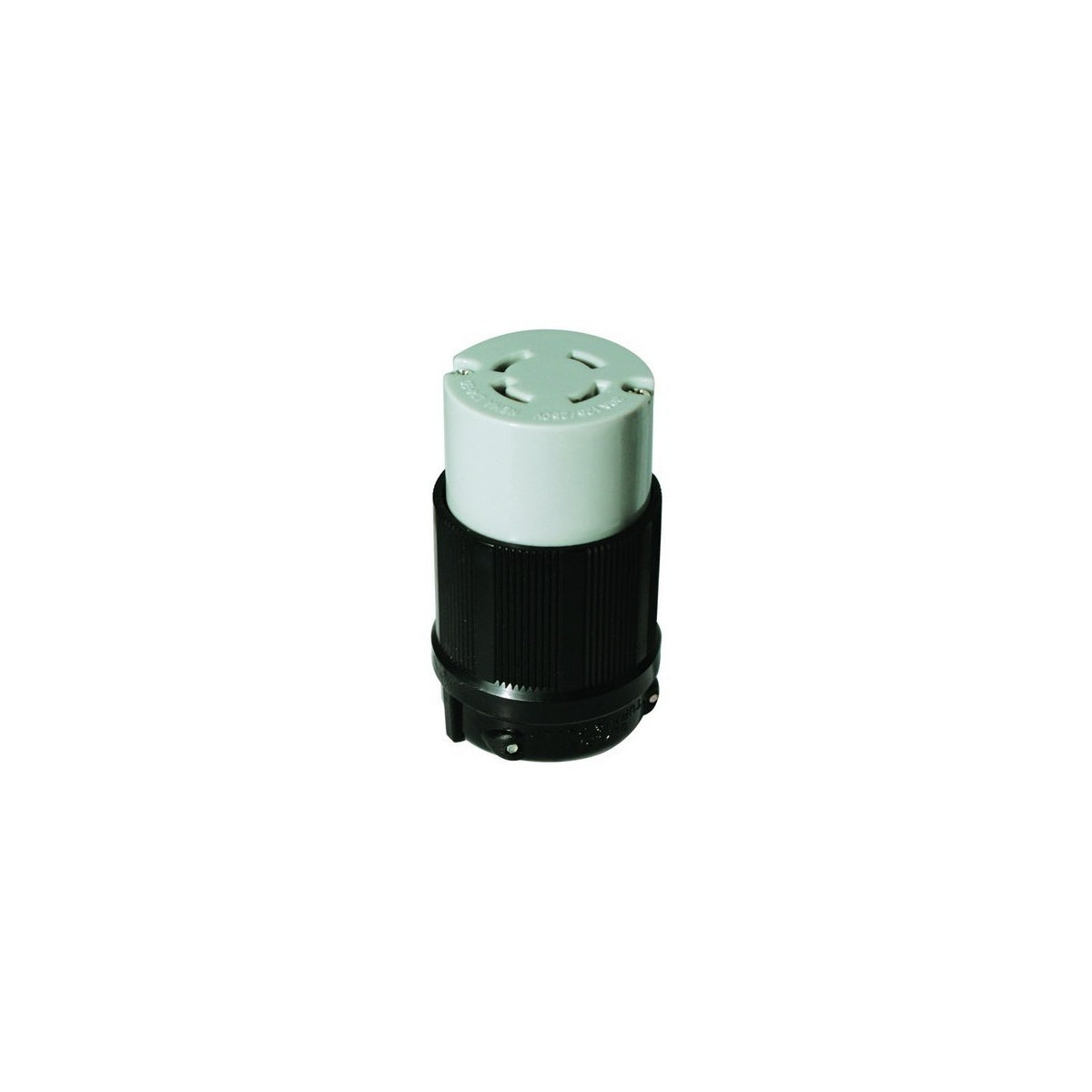

Twist Lock Female Receptacles 3 Pole 4 Wire 30A 125/250VAC

This twist lock female receptacle is designed for secure electrical connections in power applications such as generators and other equipment. It supports 3 pole, 4 wire configurations at 30 amperes and 125/250 volts AC, making it suitable for industrial and commercial electrical distributor and switchgear supplier needs.

Specifications

• Amperage: 30 amperes
• Voltage: 125/250 VAC
• Poles: 3
• Wires: 4
• Manufacturer: Morris Products
• Manufacturer Part #: 89758
• Product Weight: 0.2970 lbs

Features

• Rugged phenolic cover with PBT (Polybutylene Terephthalate) base construction resists impact, sunlight, chemicals, and rough use
• Solid one-piece brass contacts for superior conductivity and reduced heat rise
• Heavy duty power contacts set in deep pockets to resist damage
• Heavy duty brass combo head terminal screws with flush mount design

Downloads & Links

• Spec Sheet
