Turn Lock Receptacle w/nut & Bracket
SKU: #161520
Part: #2421
UPC: 786261610218
Turn Lock Receptacle w/nut & Bracket
SKU: #161520
Part: #2421
UPC: 786261610218
Next day delivery
Description

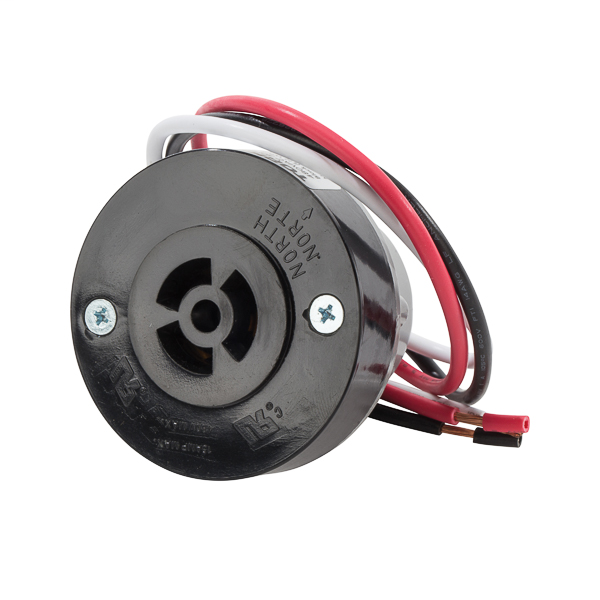

Turn Lock Receptacle w/nut & Bracket - Photocontrol Receptacle
This Turn Lock Receptacle with nut and bracket is designed for use in electrical distribution and lighting solutions, particularly for photocontrol installations. It supports voltages from 120 to 480V at 50/60 Hz and handles a maximum current of 15 amps. The receptacle features color-coded 12-inch long, 14 gauge leads, a plastic housing, a lock nut with 1/2" NPT, and a mounting bracket, making it suitable for secure and reliable connections in wire and cable assemblies used by switchgear suppliers and electrical distributors.
Specifications
- Voltage: 120-480V, 50/60 Hz
- Maximum Current: 15 Amps
- Lead Length: 12 inches
- Wire Gauge: 14 AWG
- Housing Material: Plastic
- Mounting: Bracket with lock nut (1/2" NPT)
- Product Weight: 0.6 lbs
- Manufacturer: NSI Industries
- Manufacturer Part Number: 2421
- UPC: 786261610218
Features
- Durable plastic housing for weather-resistant applications
- Includes mounting bracket and lock nut for secure installation
- Color-coded leads for easy wiring and identification
- Compatible with TORK® Turn-Lock photocontrol systems
- Designed for use in roadway, parking lot, and street lighting control
