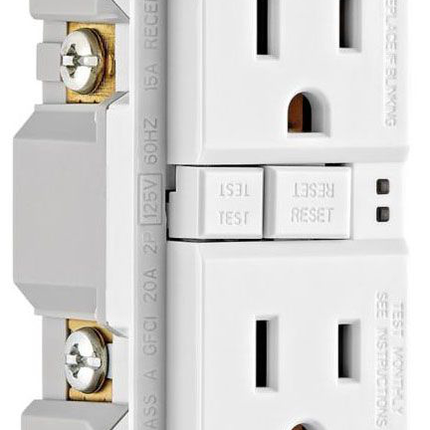

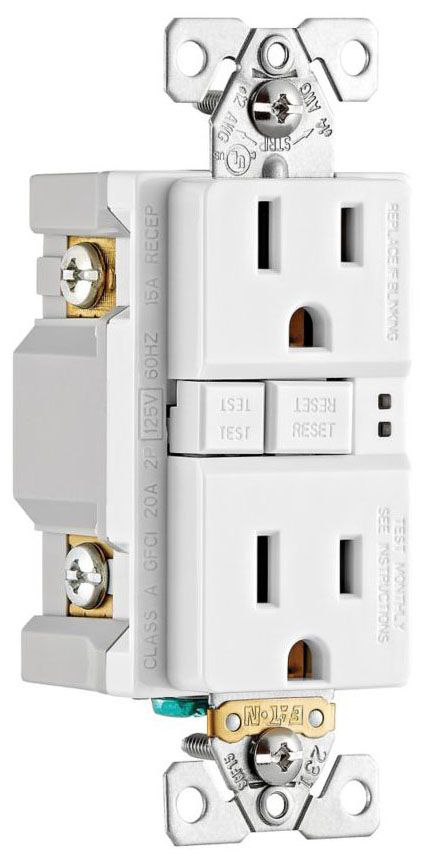

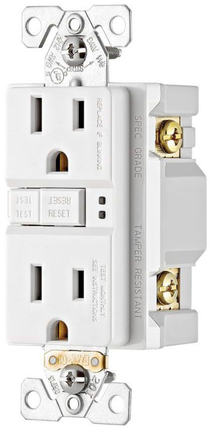

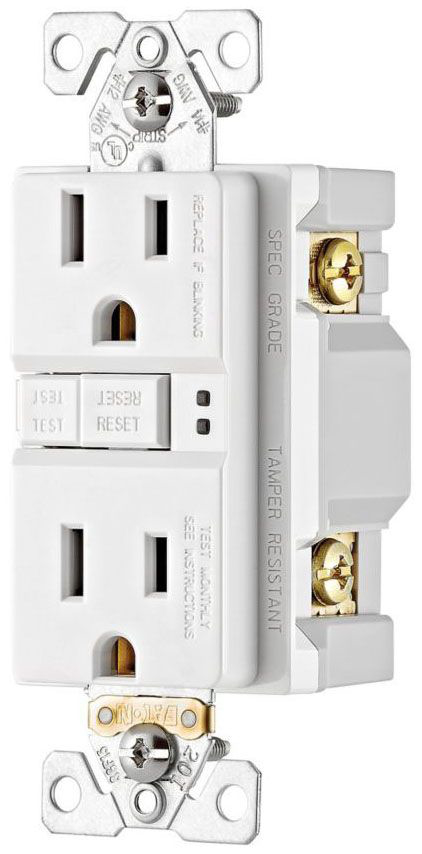

Features

• Meets and Exceeds 10 Kiloamp Short Circuit Testing
• Performs Periodic Self Tests to Ensure Integrity of GFCI Protection If No Ground-Fault Protection is Detected the Device will Trip, will Not Reset and the Status Indicator Light will Glow Amber
• Tapered Back Wire Openings Handle Multiple Wire Sizes and Types for Applications up to 10 AWG Solid or Stranded Wire
• When Downstream Receptacles are Wired from Load Side, a 20 Amp Feed-Through Rating Offers Full Protection
• Test and Reset Buttons are Color Matched to Provide Superior Aesthetics
• Longer Wider Bridge Strap Provides 40% More Contact Area with Wallboard, Virtually Eliminating Floating Installations
• Exclusive Built-In Wire Stripper Provides Fast Stripping of Wire without Tools
• Line-Load Miswiring Protection GFCI will Not Provide Power Downstream When Wired Incorrectly
• Tri-Combo Head Terminal and Mounting Screws

Additional Information

• Overall Dimension 1.3 Inch Width x 1.27 Inch Depth x 4.2 Inch Height
• Wire Size 14 to 10 AWG
• Mounting Type Flush
• Strap Material 0.042 Inch Thickness Zinc Plated Steel
• Line Contact Material 0.03 Inch Thickness Brass
• Terminal Clamp Material Brass Plated Steel
• Temperature Rating -31 to 150.8 Deg F

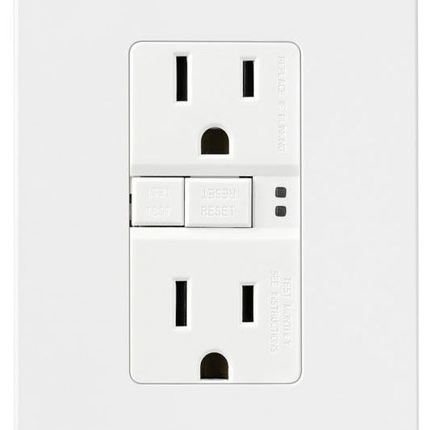

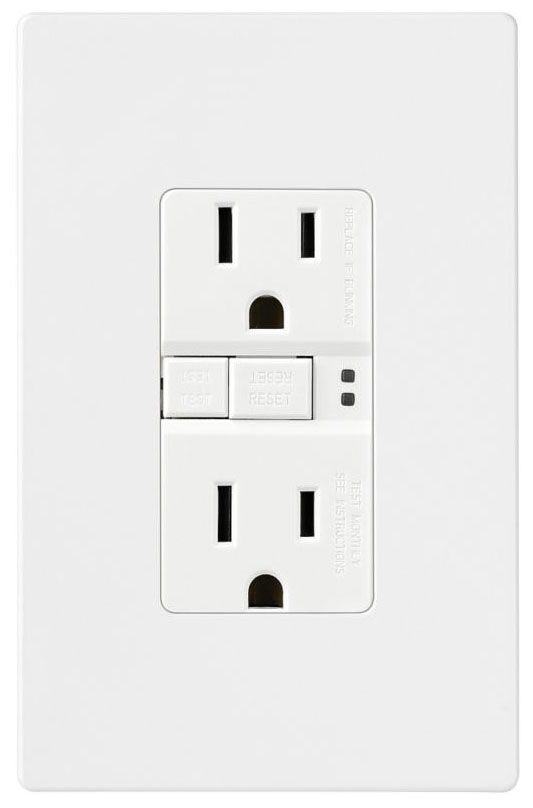

• Includes Thermoplastic Wallplate

Specifications

• Type: Duplex, Self-Test, Grounding, Tamper/Weather Resistant
• Configuration: NEMA 5-15R
• Voltage Rating: 125 Volt AC 60 Hertz
• Current Rating: 15 Amp
• Number of Poles: 2
• Number of Wires: 3
• Material: Polypropylene/Thermoplastic (Top Housing), PVC/Thermoplastic (Bottom Housing)
• Color: White
• Wiring: Back, Side
• Grade: Specification/Residential/Commercial
• Approval: UL (Canada and US), UL 498/943, CSA, NOM 426
• Series/Model: TRSGF
