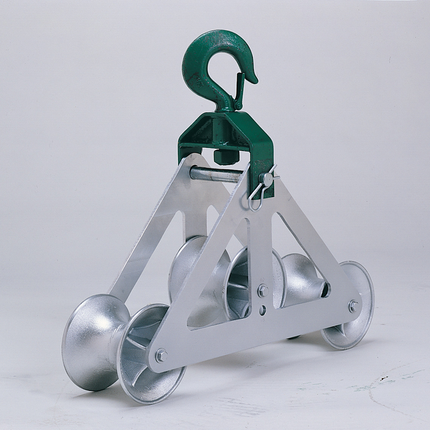

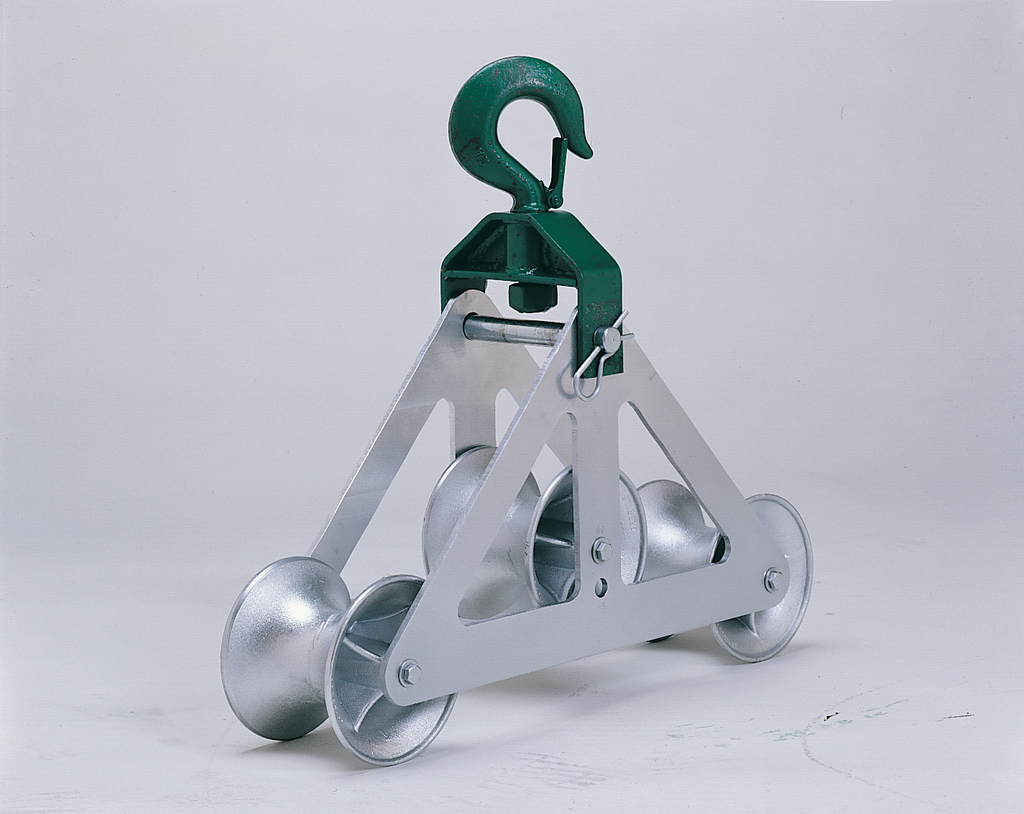

Triple Sheave Cable Guide – Cable Pulling Equipment

The Greenlee Triple Sheave Cable Guide is designed to change the direction of rope or cable during installation in conduit or raceway systems. It is suitable for use with any cable puller exerting a maximum pulling force of 6,500 lb (28.9 kN) or less. This tool facilitates safer and more efficient cable pulling by allowing operators to stand clear from the high-tension pulling rope line, enhancing safety and control. Ideal for electrical distributors and switchgear suppliers handling wire and cable installations.

Specifications

• Manufacturer: Greenlee
• Manufacturer Part #: 50315692
• Product Weight: 30.22 lb
• Dimensions (L x W x H): 24.6 in x 19.6 in x 7.5 in
• Made in USA: Yes
• Country of Origin: United States
• UPC: 783310315698

Features

• Triple sheave design allows smooth directional changes of cable or rope
• Compatible with cable pullers up to 6,500 lb (28.9 kN) maximum pulling force
• Provides operator safety by enabling positioning away from the pull line
• Robust frame construction with replaceable sheave units and durable hardware
• Includes three 6" sheave units with bushings for long service life
• Simple inspection and maintenance with accessible fasteners and components

Downloads & Links

• Owners Manual
