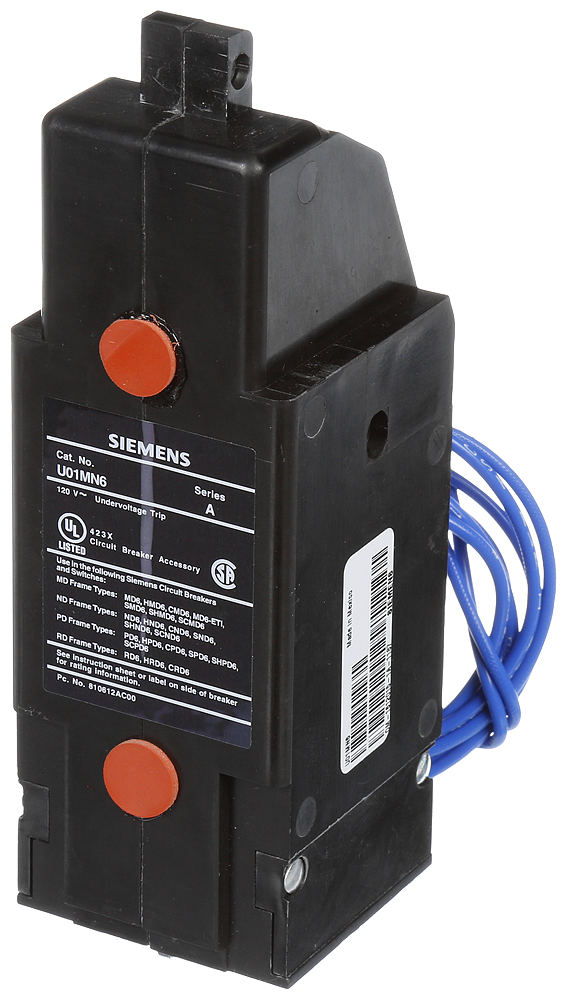

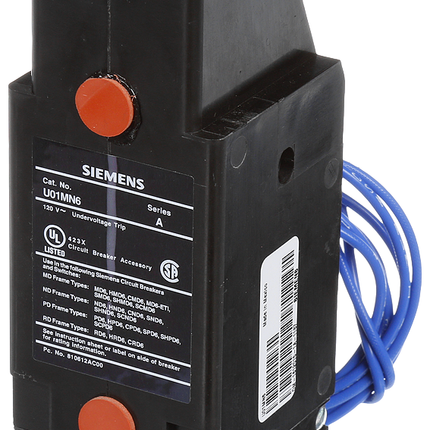

TRIP, UND.VOLT FOR MD, ND, PD, RD - Undervoltage Trip Accessory

This Siemens molded case circuit breaker internal accessory is an undervoltage trip designed for use with MD, ND, PD, and RD frame breakers. It operates at 120 VAC and is intended to provide reliable undervoltage protection, ensuring circuit breakers trip when voltage drops below a specified threshold. Suitable for electrical distributors and switchgear suppliers, it integrates seamlessly with low voltage Sentron molded case circuit breakers, enhancing safety and operational control in electrical distribution and lighting solutions.

Specifications

• Manufacturer: Siemens
• Manufacturer Part #: U01MN6
• Application: Accessory
• Frame Compatibility: MD/ND/PD/RD
• Control Voltage: 120 VAC
• Actuator: 1 Undervoltage Trip
• Dimensions (W x H x L): 7 in x 6 in x 4 in
• Weight: 1.2 lbs
• Country of Origin: Mexico
• Order Minimum: 1 unit

Features

• Designed for mounting on either left or right pole of compatible circuit breakers
• Ensures circuit breaker trips at undervoltage conditions to protect electrical systems
• Compatible with MD, ND, PD, and RD frame breakers, supporting a range of current ratings
• Equipped with an internal clearing switch for reliable operation
• Installation requires removal of protective seals and proper wire routing as per Siemens guidelines
• Suitable for use in low voltage electrical distribution and lighting solutions
