Trim 5" RD LED Flush Mount 3000K, Black – LED Lighting Solutions

This Trim 5" RD LED Flush Mount is a sleek and ultra-thin lighting fixture designed for recessed lighting effects. It features a die-cast aluminum housing with a recessed white polycarbonate diffuser, available in black finish. Ideal for electrical distributors and lighting solution providers, this LED fixture delivers high efficiency and excellent color rendering, making it suitable for residential and commercial projects. The fixture is compatible with standard 120V input voltage and can be dimmed using Triac and ELV dimmers. An optional pendant adapter allows conversion to a hanging fixture, enhancing versatility.

Specifications

• Material: Aluminum
• Finish: Black

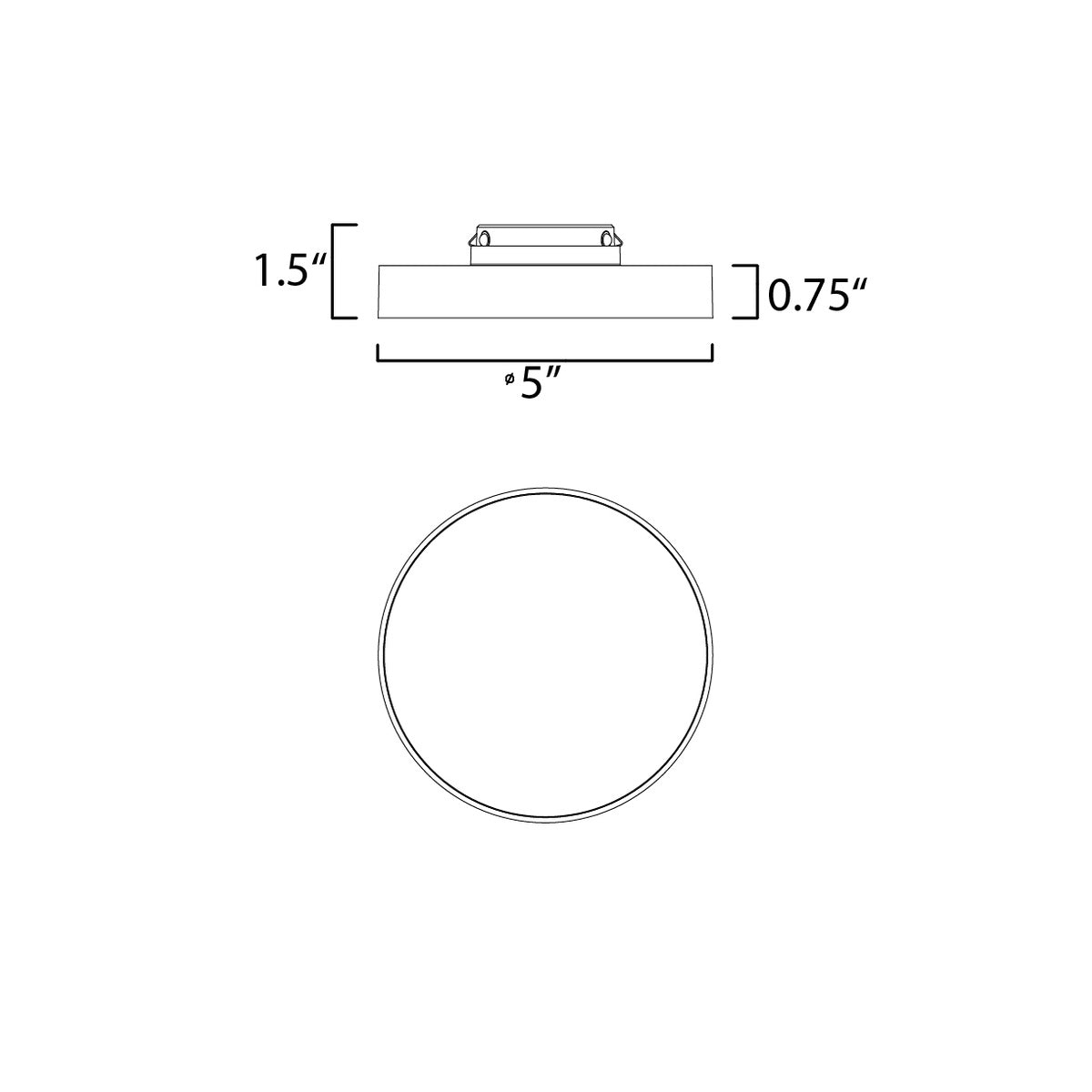

• Dimensions: 5" W x 0.75" H x 5" L
• Light Type: LED
• Bulb Type: PCB Integrated
• Number of Bulbs: 1
• Color Temperature: 3000 kelvins
• Lumens: 920 lumens
• Max. Wattage: 12.5 watts
• Input Voltage: 120 volts
• Output Voltage: 120 volts
• Color Rendering Index: 90
• Average Rated Life: 35,000 hours
• Weight: 0.85 lbs

Features

• Ultra-thin profile with a height of 0.75 inches for a low-profile ceiling mount
• Die-cast aluminum housing ensures durability and heat dissipation
• Recessed white polycarbonate diffuser provides even illumination
• Dimmable with Triac and ELV dimmers for flexible lighting control
• Available in multiple finishes; this model features a black finish
• Optional pendant adapter available to convert fixture to a hanging light
• Suitable for wet locations, including ceilings outdoors and above showers (ETL/cETL IP65 rated)
• Compliant with NEC Section 410.8 & 410.16 for closet installations
• Energy Star, Title 24 JA8 compliant, ADA compliant
• Easy installation compatible with 3-0 and 4-0 outlet boxes (pancake and mud ring acceptable)
• High color rendering index (CRI 90+) for accurate color representation
• 5-year warranty for long-term reliability

Downloads & Links

• Spec Sheet
• Assembly Instruction
