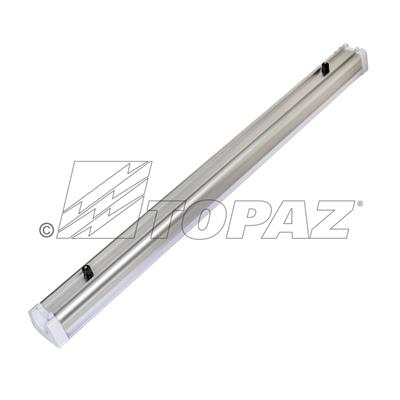

Tri-Proof Vapor Tight Luminaire, 4 ft Fixture, 5000K, DLC Premium Qualified – LED Linear Luminaire

The Tri-Proof Vapor Tight Luminaire by Southwire is a robust LED linear lighting solution designed for demanding environments such as garages, warehouses, stairwells, marine applications, and subways. This IP65 rated fixture offers superior protection against water, dust, and corrosion, making it ideal for commercial, industrial, and marine applications. With high energy efficiency at 130 lumens per watt and compatibility across a wide voltage range, it serves as a reliable component for electrical distributors, lighting solutions providers, wire and cable specialists, and switchgear suppliers.

Specifications

• Manufacturer: Southwire
• Model Number: F-VT4/50W/50K-86
• Power Consumption: 50 Watts
• Luminous Output: 6,500 lumens
• Lumens Per Watt (LPW): 130
• Color Temperature: 5000K
• Input Voltage: 120V-277V, 50/60Hz
• Beam Angle: 120°
• Color Rendering Index (CRI): 80
• IP Rating: IP65 (waterproof, dustproof, corrosion proof)
• Dimensions: 47.24" (length) x 3.78" (width) x 3.27" (height)
• Operating Temperature Range: -40°F to 105°F
• Average Rated Life (L70): 50,000 hours
• Power Factor: >0.9
• Total Harmonic Distortion (THD): <10%
• Weight: 4.6 lbs (standard), 7.3 lbs (with battery backup)
• DLC Premium Qualified
• UPC: 751338023437

Features

• Aluminum housing for enhanced thermal management
• High impact polycarbonate lens for durability
• Replaces traditional 3x32W T8 fluorescent fixtures
• Optional battery backup version available for emergency lighting
• 0-10V dimmable version available by special order
• Includes 6-foot power cord for flexible installation
• ETL Sanitation Listed for Food Service Equipment compliance
• Surface or suspension mountable for versatile installation
• 5-year manufacturer warranty
