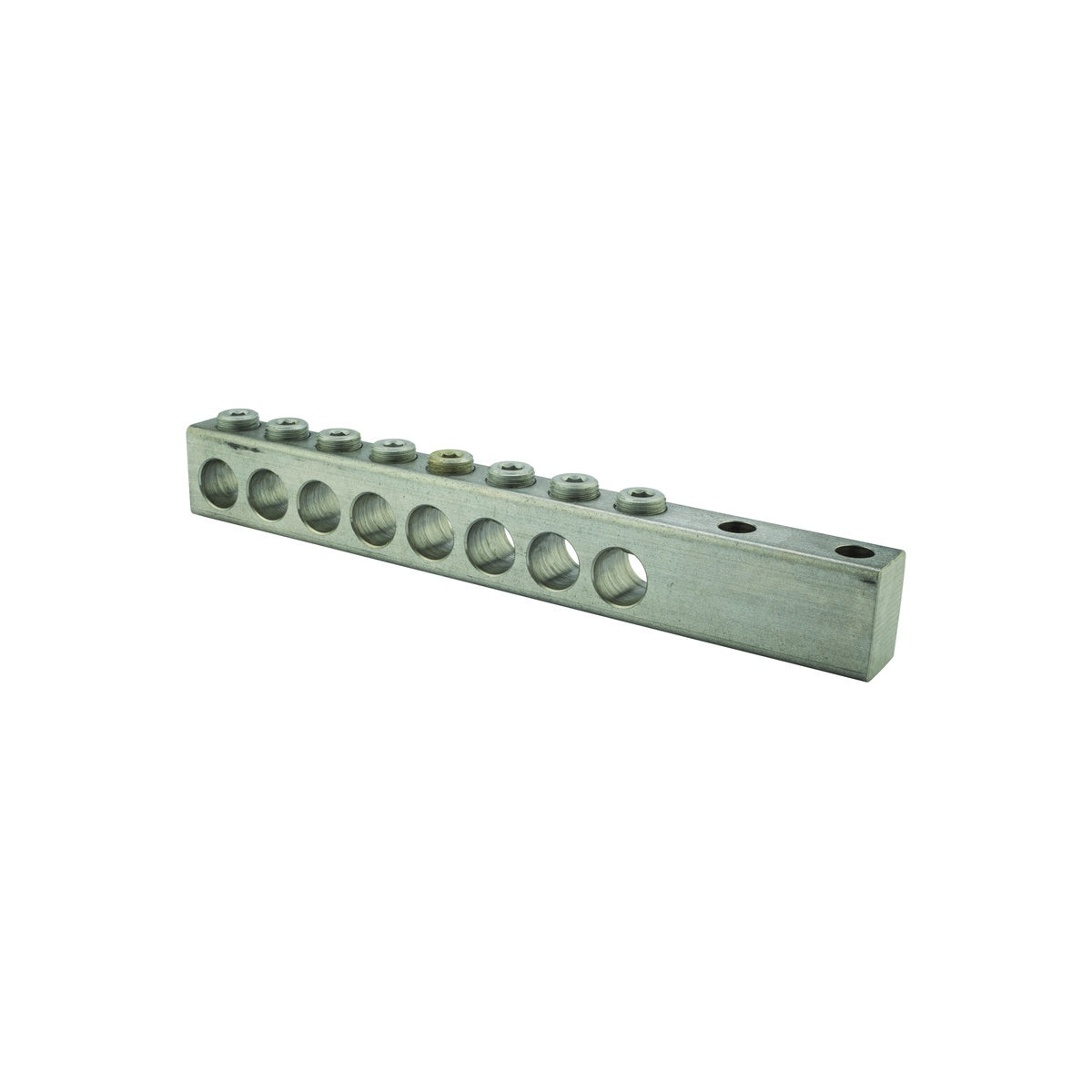

Transformer Lug (8) 500-2 Aluminum Transformer Connector

This 8-port aluminum dual-rated transformer connector is designed for wire termination applications in electrical distribution and lighting solutions. Manufactured by NSI Industries, it supports conductor sizes from 500 MCM to 4 AWG and is suitable for use by electrical distributors and switchgear suppliers requiring reliable transformer lug components.

Specifications

• Material: Aluminum (6061T-6 alloy)
• Finish: Electro-tin plated for low contact resistance
• Number of Ports: 8
• Bolt Size: 1/2 inch
• Dimensions: 12.03 in (L) x 1.63 in (H) x 1.13 in (W)
• Mounting Hole Spacing: 1.75 in
• Number of Mounting Holes: 2
• Rated Voltage: 600 volts
• Maximum Temperature: 90 degrees Celsius
• Number of Conductors: 8
• Weight: 8.16 lbs
• Country of Origin: United States
• Manufacturer Part #: STL500-8

Features

• Dual-rated for use with 500 MCM to 4 AWG conductors
• Constructed from durable 6061T-6 aluminum alloy
• Electro-tin plating reduces contact resistance
• Two NEMA 1/2" holes for secure and easy attachment
• Made in the USA, ensuring quality and compliance
