Transformer Lug 250-4 (4)
SKU: #305537
Part: #STL250-4
UPC: 662381097002
Transformer Lug 250-4 (4)
SKU: #305537
Part: #STL250-4
UPC: 662381097002
Description

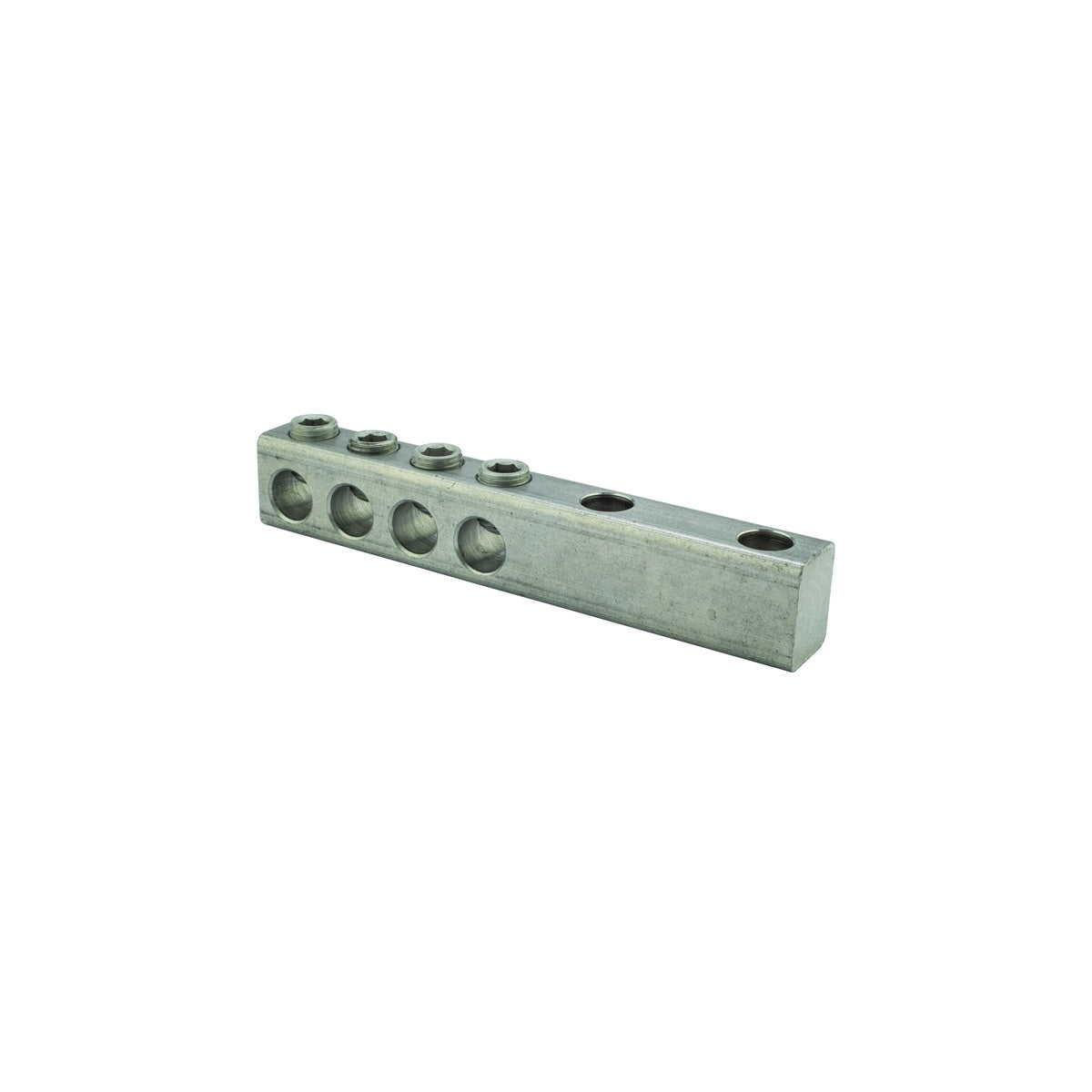

Transformer Lug 250-4 (4) – Aluminum Transformer Connector
This Transformer Lug 250-4 (4) is a 4-port aluminum dual rated transformer connector designed for use in electrical distribution and lighting solutions. Manufactured by NSI Industries, it is suitable for wire and cable connections in switchgear and transformer applications, providing reliable conductivity and secure attachment.
Specifications
- Material: 6061T-6 Aluminum Alloy
- Finish: Tin-Plated
- Voltage Rating: 600 volts
- Dimensions: 6.24 in (Length) x 0.875 in (Width) x 1.125 in (Height)
- Maximum Temperature: 90 degrees Celsius
- Order Minimum: 1 unit
- Product Weight: 3 lbs
- Country of Origin: United States
- Made in USA: Yes
- Manufacturer Part #: STL250-4
Features
- Electro-tin plated for low contact resistance
- Two NEMA 1/2" holes for easy attachment
- Dual rated for transformer connections from 250 MCM to 6 AWG
