Trans Lug (8) 350-6 AWG 4 Mtg Holes
SKU: #385504
Part: #8-350T4
UPC: 662381026941
Trans Lug (8) 350-6 AWG 4 Mtg Holes
SKU: #385504
Part: #8-350T4
UPC: 662381026941
Description

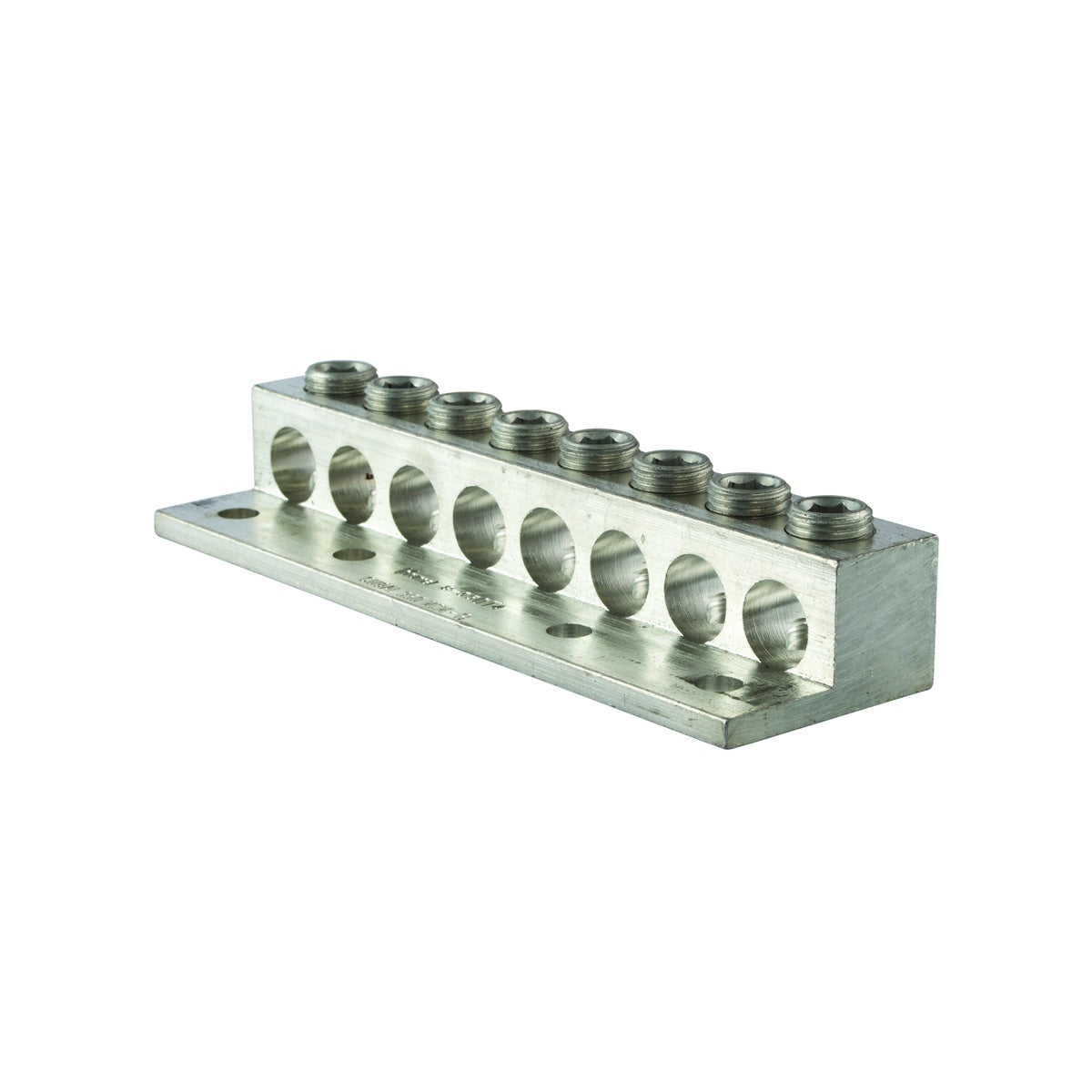

Trans Lug (8) 350-6 AWG 4 Mtg Holes Electrical Connector
This aluminum dual rated transformer lug is designed for wire termination applications in electrical distribution and lighting solutions. Manufactured from 6061T-6 aluminum alloy, it provides reliable mechanical and electrical performance for use with copper or aluminum conductors. The lug features multiple ports and mounting holes for versatile installation, suitable for wire and cable connections in switchgear and panel assemblies.
Specifications
- Material: 6061T-6 Aluminum Alloy
- Finish: Tin-Plated
- Application: Wire Termination
- Number of Poles: 1
- Voltage Rating: 600 Volts
- Temperature Rating: 90 degrees Celsius
- Dimensions (L x W x H): 2.25 in x 5.56 in x 1.25 in
- Mounting Hole Spacing: NEMA 1-3/4"
- Manufacturer Part #: 8-350T4
- Country of Origin: United States
- Product Weight: 1.5 lbs
Features
- Eight ports with four mounting holes for secure installation
- Dual rated for use with copper or aluminum conductors
- Two set screws per wire hole for exceptional connection reliability
- Electro-tin plated surface for low electrical resistance
- Meets or exceeds ANSI C119.4 Class A standards
- Reusable and durable construction for long-term use
- Made in USA by NSI Industries
