Trans Lug (6) 600-2 AWG 8 Mtg Holes
SKU: #303503
Part: #6-600L8
UPC: 662381027030
Trans Lug (6) 600-2 AWG 8 Mtg Holes
SKU: #303503
Part: #6-600L8
UPC: 662381027030
Description

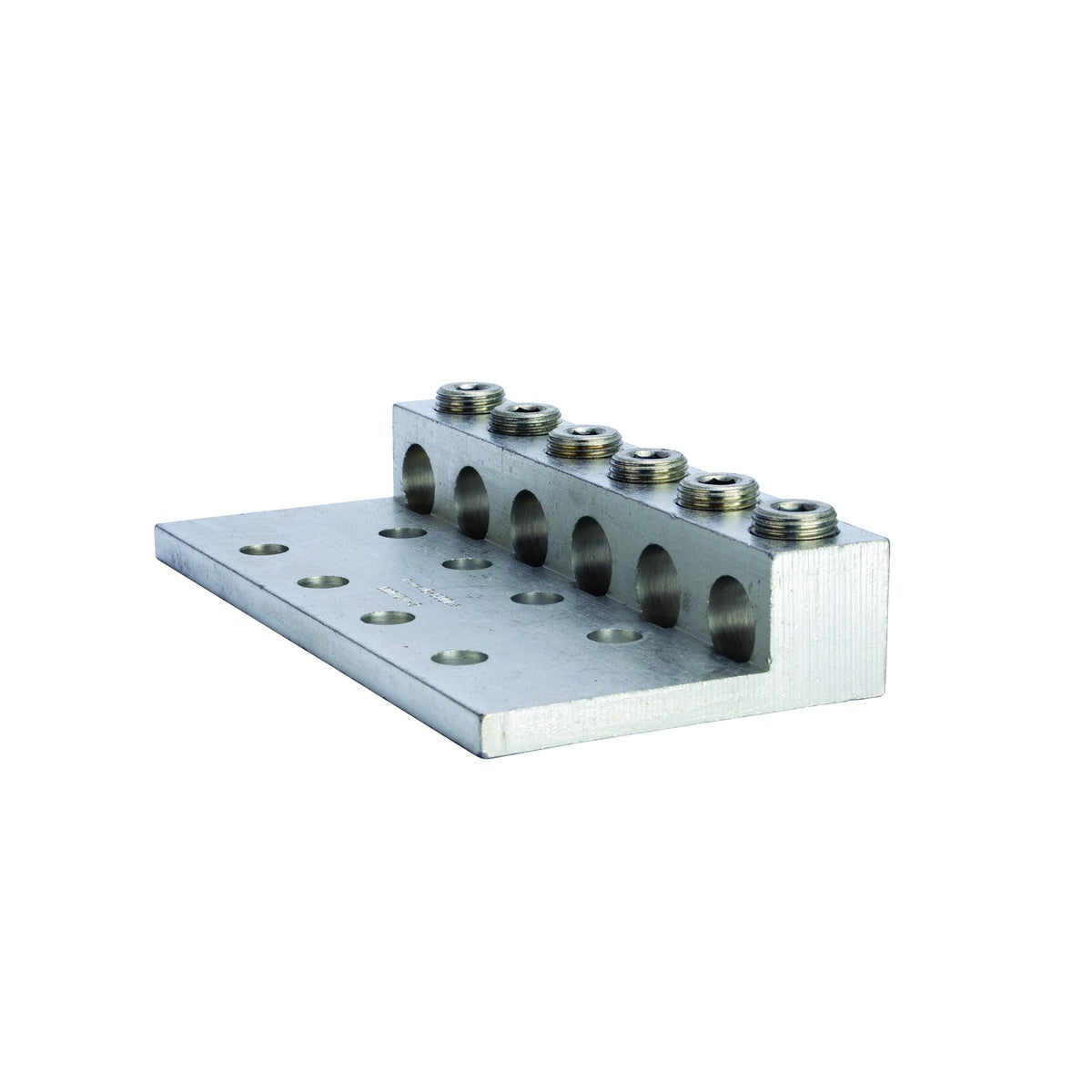

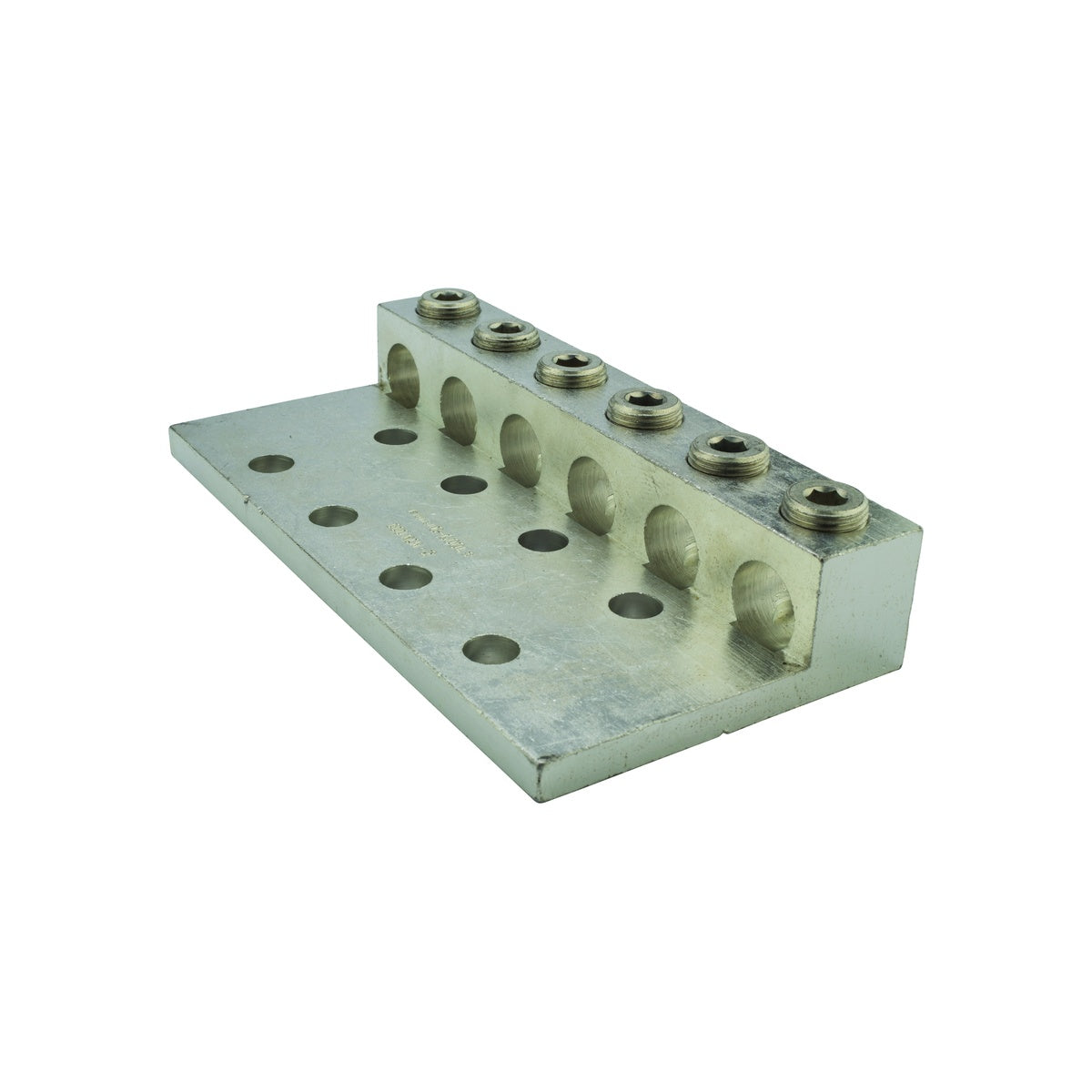

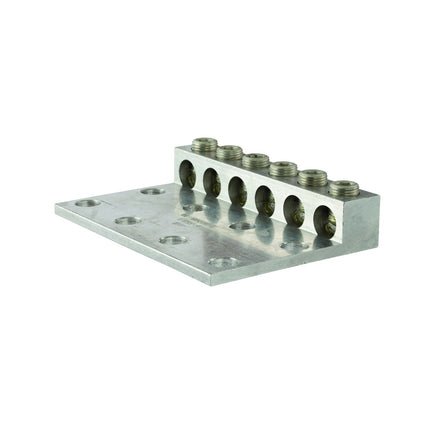

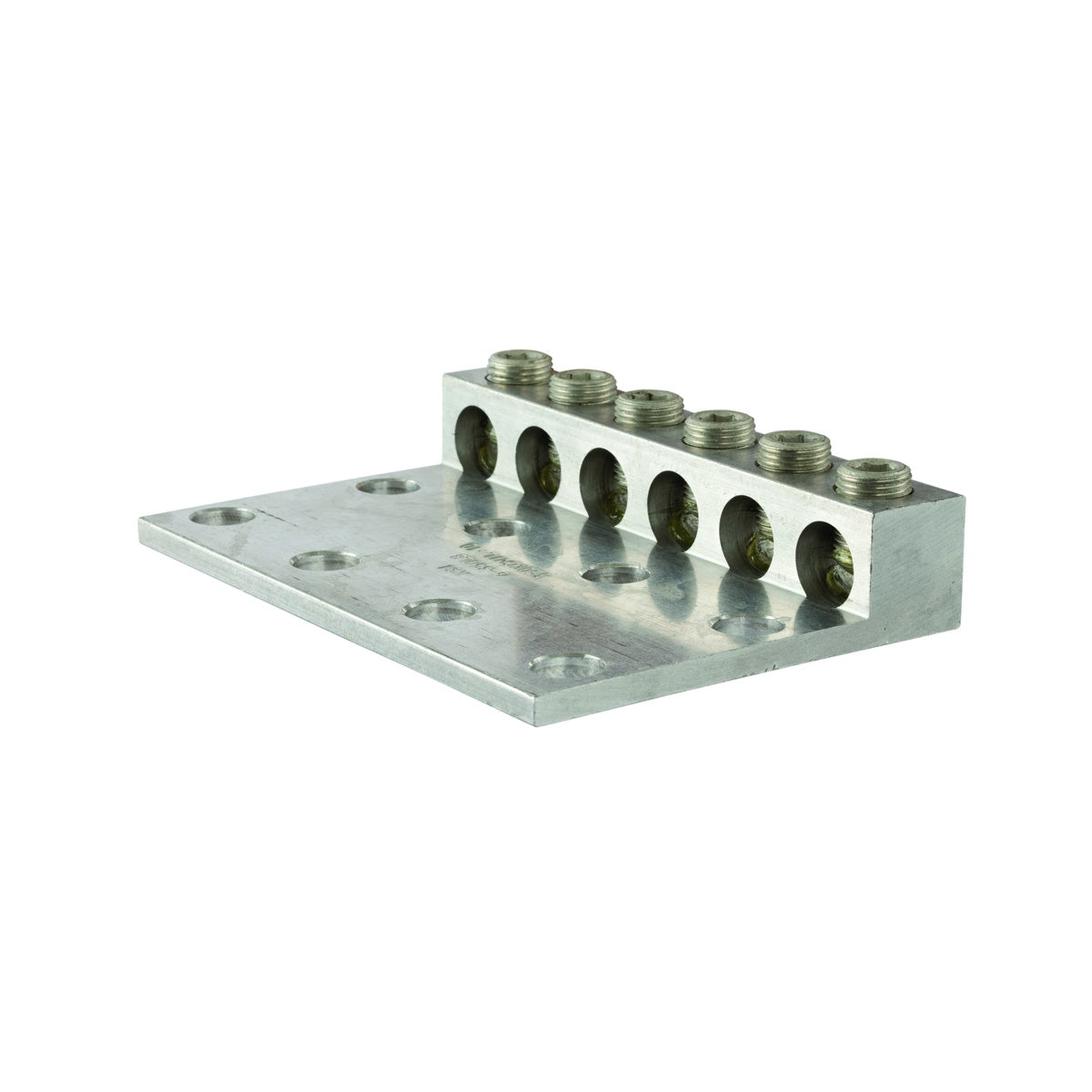

Trans Lug (6) 600-2 AWG 8 Mtg Holes – Aluminum Transformer Lug
The NSI Industries Trans Lug (6) 600-2 AWG 8 Mtg Holes is a 6-port aluminum dual rated transformer lug designed for reliable electrical connections in wire and cable installations. This product is suitable for electrical distributors and switchgear suppliers requiring durable, low-resistance connectors compatible with both copper and aluminum conductors. It offers superior mechanical and electrical performance for lighting solutions and other electrical applications.
Specifications
- Material: 6061T-6 Aluminum Alloy
- Finish: Tin-Plated
- Voltage Rating: 600 Volts
- Temperature Rating: 90 degrees Celsius
- Dimensions: 7.16 in (Width) x 4.5 in (Length) x 1.63 in (Height)
- Mounting Holes: 8
- Country of Origin: United States
- Product Weight: 2.6 lbs
- Manufacturer Part #: 6-600L8
- Order Minimum: 1
- Made in USA: Yes
Features
- Dual rated for use with copper or aluminum conductors
- Two set screws per wire hole for exceptional connection security
- Electro-tin plated for low electrical resistance
- Meets or exceeds ANSI C119.4 Class A standards
- Versatile and reusable set screw connectors
- NEMA mounting hole spacing of 1-3/4"
