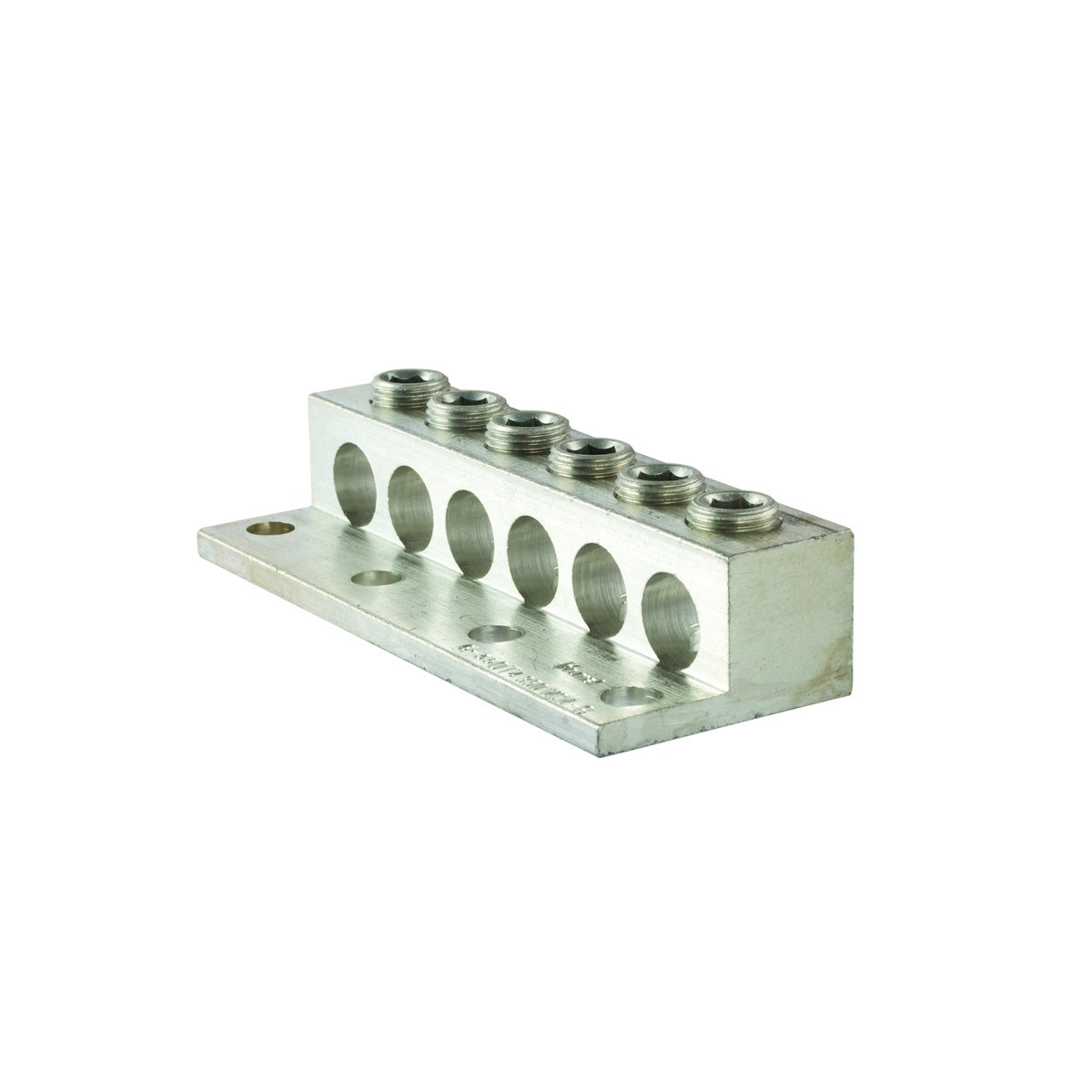

Trans Lug (6) 350-6 AWG 4 Mtg Holes Electrical Connector

The Trans Lug (6) 350-6 AWG 4 Mounting Holes is a durable aluminum dual rated transformer lug designed for secure electrical connections in wire and cable applications. Suitable for electrical distributors and switchgear suppliers, this lug provides reliable performance for use with copper or aluminum conductors in lighting solutions and other electrical systems.

Specifications

• Material: 6061T-6 Aluminum Alloy
• Finish: Tin-Plated
• Voltage Rating: 600 Volts
• Temperature Rating: 90 degrees Celsius
• Mounting Hole Spacing: NEMA 1-3/4"
• Dimensions: Length 2.25 in, Width 4.66 in, Height 1.25 in
• Weight: 0.7320 lbs
• Order Minimum: 1
• Country of Origin: United States
• Made in USA: Yes
• Manufacturer Part #: 6-350T4

Features

• Dual rated for use with copper or aluminum conductors
• Two set screws per wire hole for exceptional connection security
• Electro-tin plated for low electrical resistance
• Meets or exceeds ANSI C119.4 Class A standards
• Versatile and reusable set screw connectors
