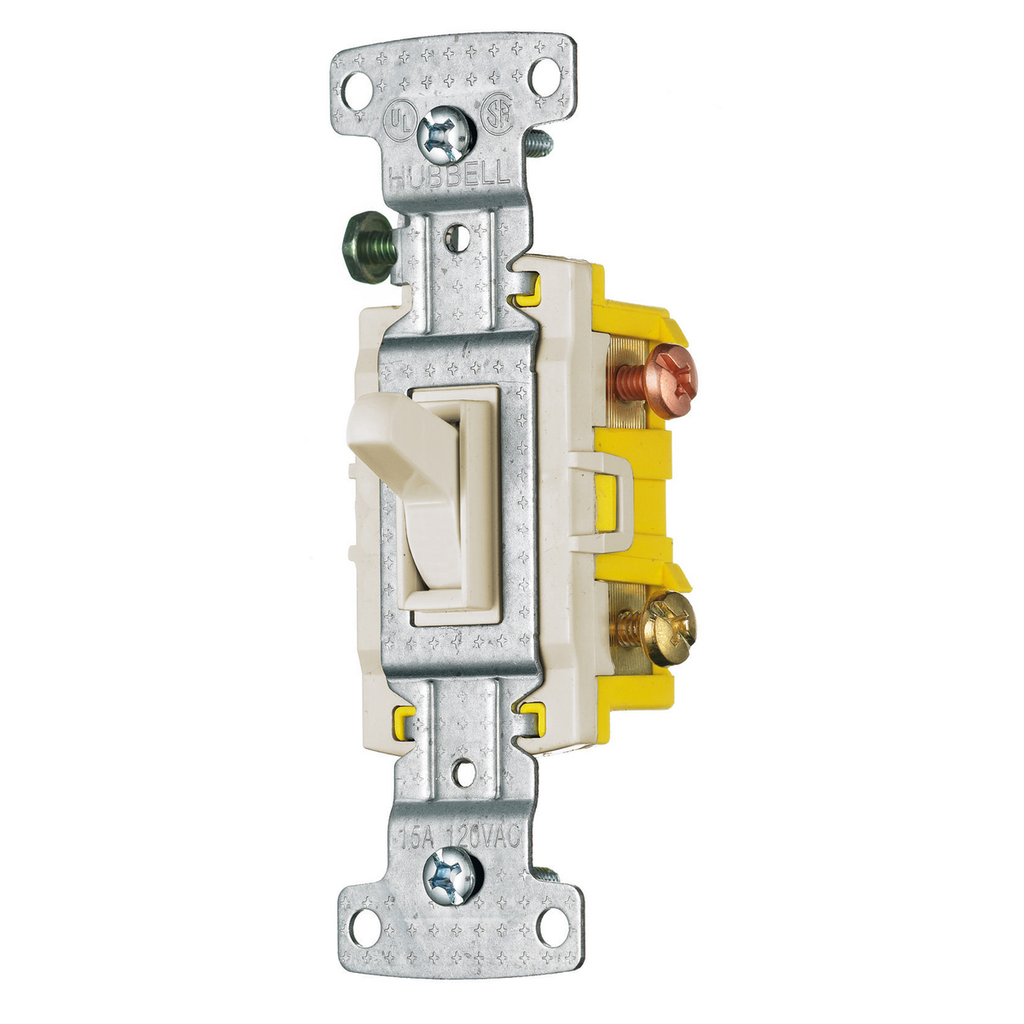

TradeSelect Residential Grade Toggle Switches - Three Way 15A 120V AC

The TradeSelect toggle switch by Hubbell Wiring Device-Kellems is designed for residential lighting control applications. This three-way switch provides reliable ON/OFF control for lighting circuits in residential settings. It is suitable for use by electrical distributors and lighting solutions providers offering wire and cable and switchgear products for home installations.

Specifications

• Application: Residential Toggle Switches
• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: RS315LA
• Amperage Rating: 15A
• Voltage Rating: 120V AC
• Number of Poles: Three Way
• Contact Configuration: Two Position
• Contact Rating: Per UL 20
• Operating Cycles: 10,000 Cycles
• Connection Type: Push and Side Wired
• Mounting: Screw Mount
• Action: Positive Snap
• Width: 1.610 in
• Product Weight: 0.5180 lbs
• Environmental Conditions: Indoor Dry unless protected by additional means
• Country of Origin: China
• Color: Light Almond

Features

• Tough thermoplastic construction with ultrasonically welded cover and base
• Elongated strap for easier wall box mounting
• Quiet snap action mechanism for smooth switching
• Multiple-drive slot/Phillips/Robertson head screws for versatile installation
• Hi-visibility yellow base for easy installation
• UL Listed and CSA Certified for safety and quality
• Designed for residential lighting control with a positive snap action toggle
