TradeSelect Rocker Double Pole Switch 15A 120/277V AC – Electrical Distributor Lighting Solutions

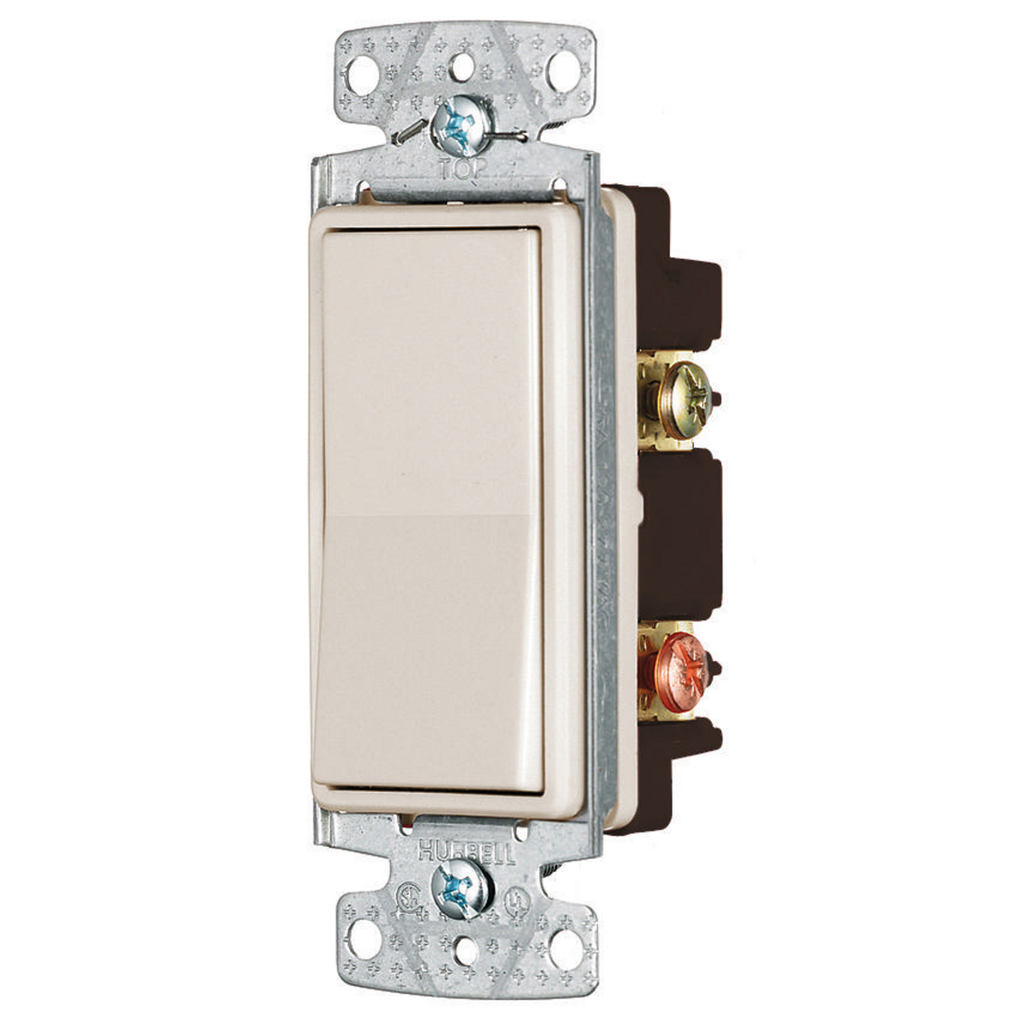

This TradeSelect rocker switch by Bryant is designed for residential wiring devices, providing reliable double pole switching at 15 amps and 120/277V AC. It is suitable for electrical distributors and lighting solutions requiring durable and quiet control devices. The switch features a positive snap action rocker actuator and is intended for indoor dry environments unless additional protection is applied.

Specifications

• Application: Residential Wiring Devices
• Amperage Rating: 15A
• Voltage Rating: 120/277V AC
• Number of Poles: Double Pole
• Contact Configuration: 2 Position
• Contact Rating: Per UL 20
• Operating Cycles: 30,000 Cycles
• Operating Temperature: Max Continuous 60°C, Minimum -20°C Without Impact
• Material: Composite
• Color: Light Almond
• Mounting: Screw Mount
• Connection: Terminal Screw
• Width: 1.6 in
• Environmental Conditions: Indoor Dry unless protected by additional means
• Country of Origin: China
• Manufacturer: Bryant
• Manufacturer Part #: RSD215LA
• Industry Standards: CSA Certified, UL Listed E3896
• EU RoHS Indicator: Yes

Features

• Smooth, quiet rocker operation
• Self-grounding feature standard for safety
• Ultrasonically welded cover and base for durability
• Base and body constructed of PVC
• Contacts made of copper alloy for reliable conductivity
• Mounting strap made of galvanized steel
• Rocker made of polycarbonate for strength
• Terminal screws made of steel and terminals made of brass
